988156 (36 HR) - Gravely Pro-Hydro 36" Walk-Behind Mower (SN: 050000 & Above) Dash - 36" Parts Diagram

Pro-Hydro 36" Walk-Behind Mower

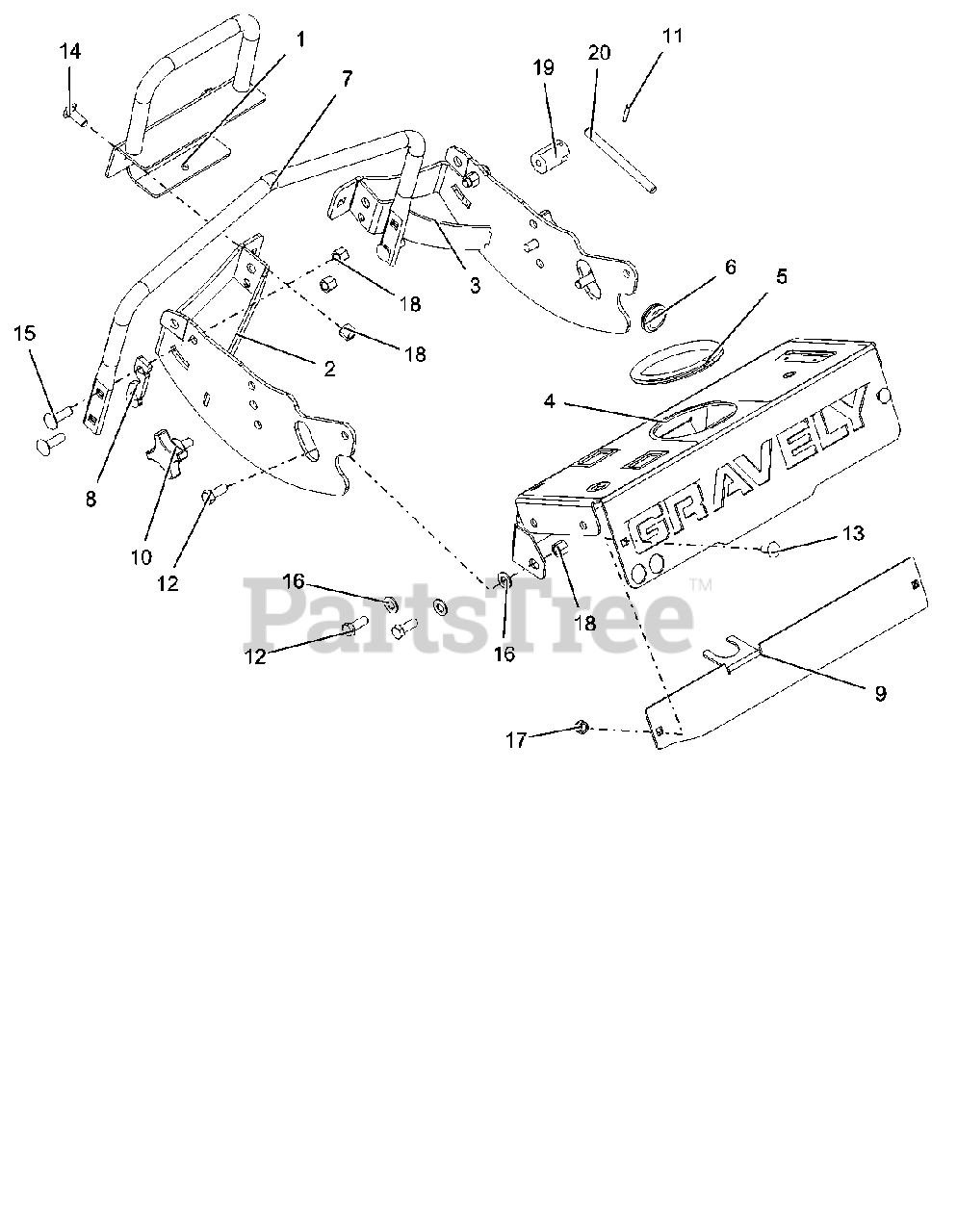

Dash - 36" Parts Diagram

  • Title

1

Gravely 04292853

WMT, REVERSE BAR

$

$

Not available

2

Gravely 04293053

WMT,RH CONTROL MOUNT

$71.99

$

Usually ships in 4-12 days

0

3

Gravely 04293153

WMT,LH CONTROL MOUNT

$71.99

$

Usually ships in 4-12 days

0

4

Gravely 58815604

ASSM, PS CONSOLE W/DECAL 36GRV

$

$

Not available

5

Gravely 00170900

TRIM, RUBBER EDGE 12"

$

$

Not available

6

Gravely 03384007

GROMMET:RUB:.88IDX1.38ODX.14GR

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 03730753

SUPPORT, HANDLE RED

$

$

Not available

8

Gravely 03976753

SHIM, 5 DEG SPEED BAR RED

$

$

Not available

9

Gravely 04263351

BRACKET, REMOTE ROV HYDRO

$27.99

$

Usually ships in 4-12 days

0

10

Gravely 04378100

KNOB, 3/8 -16 X .75

$13.99

$

Usually ships in 4-12 days

0

11

Gravely 05800005

PIN, SPRING 5/32 X 1

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

16

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

18

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

19

Gravely D13308

BASE, LOCK LEVER Y

$

$

Not available

20

Gravely D13309

LEVER, LOCK Y

$

$

Not available
