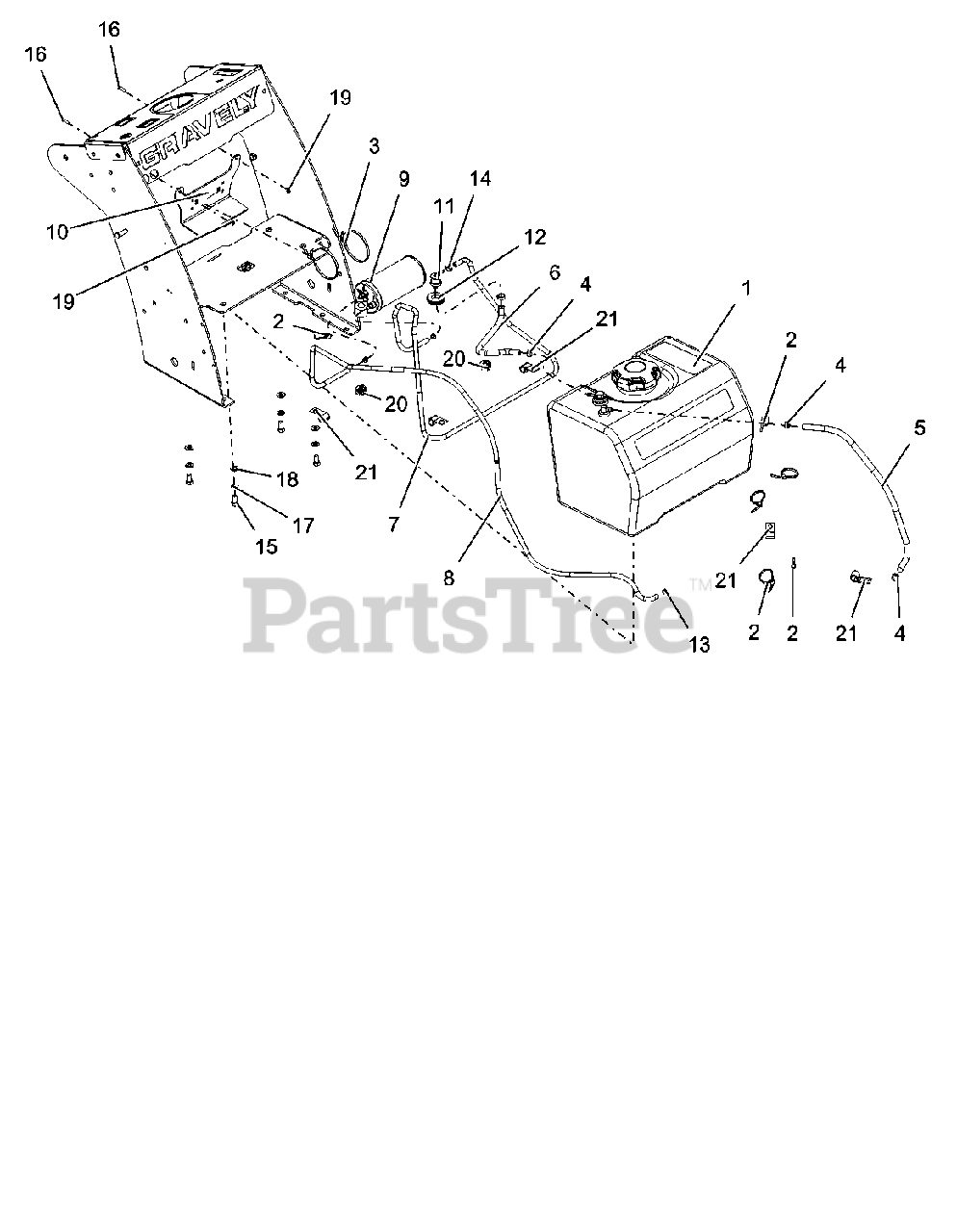

988156 (36 HR) - Gravely Pro-Hydro 36" Walk-Behind Mower (SN: 050000 & Above) Fuel System - CARB Parts Diagram

Pro-Hydro 36" Walk-Behind Mower

Fuel System - CARB Parts Diagram

  • Title

1

Gravely 04952000

TANK, FUEL LOW PERM
(Superseded to 05283900)

$387.99

$

Usually ships in 4-12 days

0

2

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

3

Gravely 00967006

CABLE TIE, .19 X 14.4

$

$

Not available

4

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 7

0

5

Gravely 03832612

HOSE, FUEL 1/4 X 18.00

$

$

Not available

6

Gravely 03832614

HOSE, FUEL HYDRO TANK - ROV

$

$

Not available

7

Gravely 03832615

HOSE, FUEL HYDRO ROV - CC

$

$

Not available

8

Gravely 03832616

HOSE, ACTIVE FUEL

$

$

Not available

9

Gravely 04058210

400 CC CARBON CANISTER 3/16 PT

$96.99

$

Usually ships in 4-12 days

0

10

Gravely 04064453

PLATE, CANISTER COVER LSCO HYD

$

$

Not available

11

Gravely 04068920

VALVE, REMOTE ROLL OVER

$21.99

$

In Stock, only 1 left!

0

12

Gravely 04068925

GROMMET, REMOTE ROV

$11.99

$

In Stock, only 2 left!

0

13

Gravely 04097700

CLAMP - HOSE, SPRING .188

$1.49

$

Usually ships in 4-12 days

0

14

Gravely 04097715

CLAMP, DBL PINCH 5/16" - 7/16"

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

16

Gravely 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, only 1 left!

0

17

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

18

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06500704

NUT-KEPS 10-24

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 2 left!

0

21

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0
