988156 (36 HR) - Gravely Pro-Hydro 36" Walk-Behind Mower (SN: 050000 & Above) Pulleys And Idler - 36" Parts Diagram

Pro-Hydro 36" Walk-Behind Mower

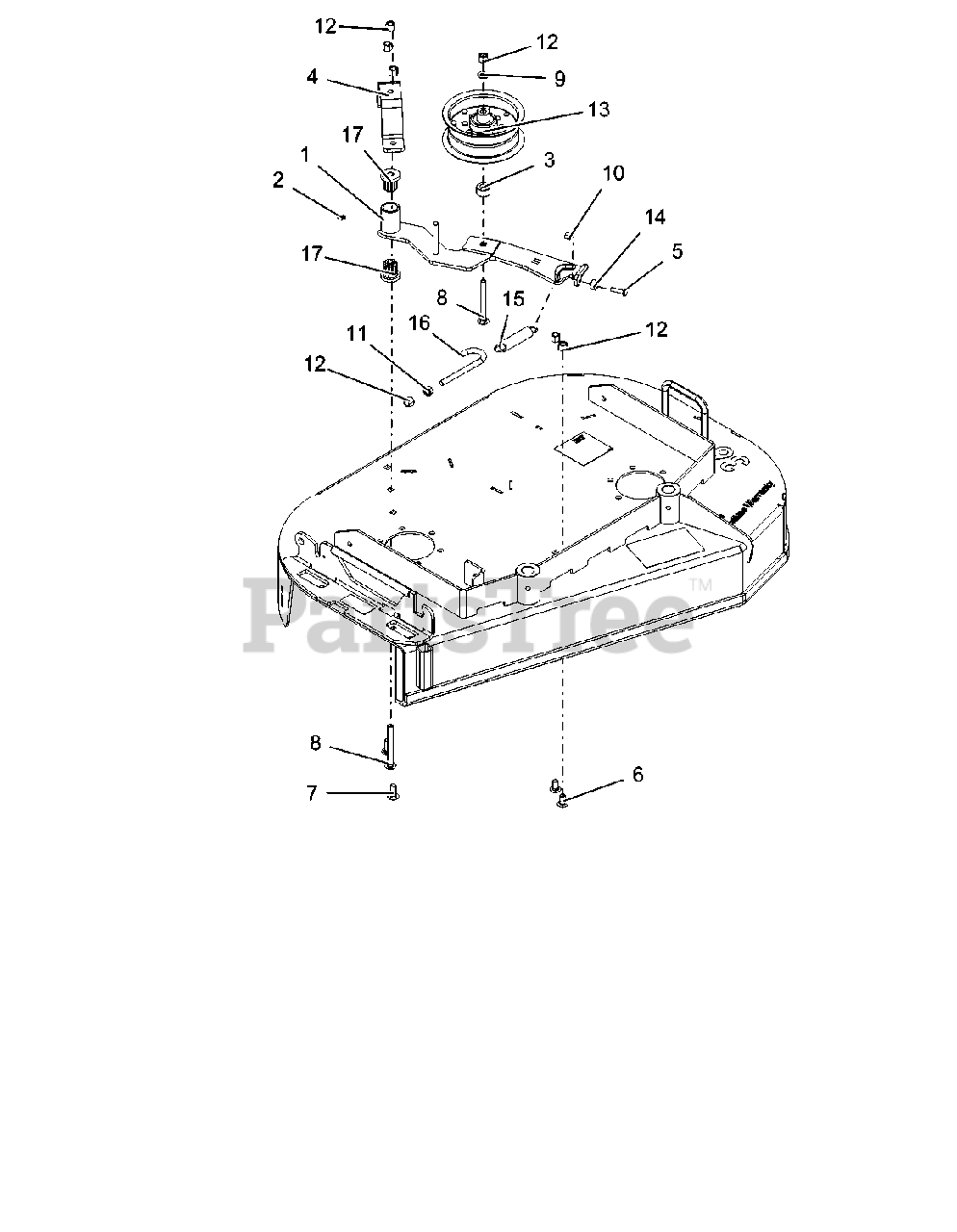

Pulleys And Idler - 36" Parts Diagram

  • Title

1

Gravely 04578400

WLDMT, IDLER

$

$

Not available

2

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 03846217

SPACER, .437X1.00X.58 SMLS

$9.99

$

In Stock, only 1 left!

0

4

Gravely 03854451

STRAP, IDLER 36 (BLACK)

$14.99

$

Usually ships in 4-12 days

0

5

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

6

Gravely 06200004

BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06222400

BLT-RDHDSQNK .38-16X3.50 G5 YWZC
(Superseded to 06200302)

$9.49

$

In Stock, Qty 5

0

9

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

11

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0

12

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

13

Gravely 07300532

PULLEY, FLAT 5.00X2.36X.375

$68.99

$

Usually ships in 4-12 days

0

14

191185

BRG, BAL .250 X .688 X .313

$

$

Not available

15

Gravely B10195

Spring

$27.99

$

Usually ships in 4-12 days

0

16

Gravely D23058

J-BOLT, 3/8-16 X 4.00 Y

$5.99

$

Usually ships in 4-12 days

0

17

Gravely TCU14540

BRG, FLG M10XM25XM27 FLUTED

$14.99

$

In Stock, only 2 left!

0
