988156 (36 HR) - Gravely Pro-Hydro 36" Walk-Behind Mower (SN: 050000 & Above) Tires, Wheel Motors - 36" Parts Diagram

Pro-Hydro 36" Walk-Behind Mower

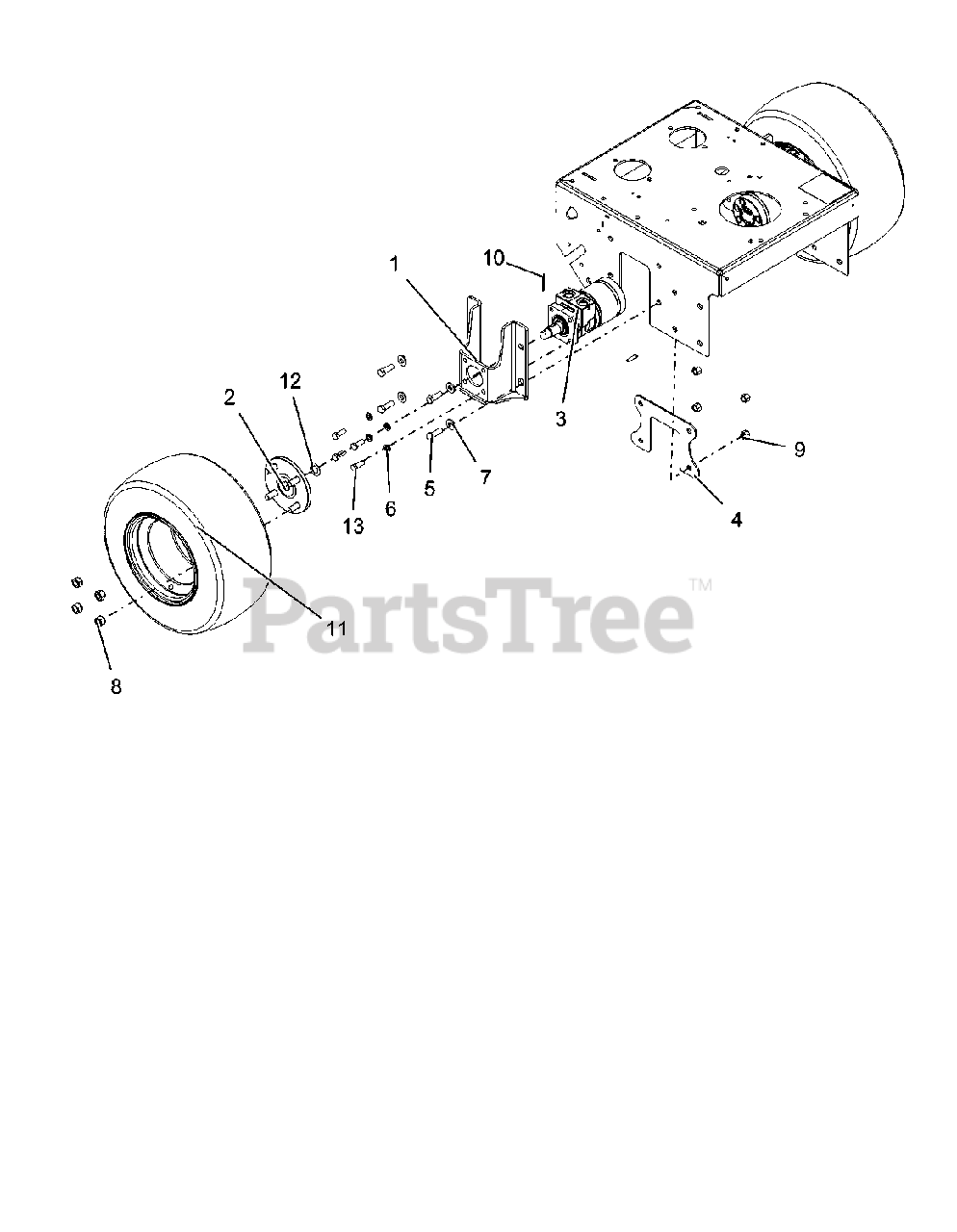

Tires, Wheel Motors - 36" Parts Diagram

  • Title

1

Gravely 04506953

WLDMT, WHEEL MOTOR BRKT GRAVEL

$83.99

$

Usually ships in 4-12 days

0

2

Gravely 00203842

ASSY, WHEEL HUB

$189.99

$

Usually ships in 4-12 days

0

3

Gravely D18311

MOTOR, HYDRAULIC WHEEL

$857.99

$

Usually ships in 4-12 days

0

4

Gravely 04440353

ENGINE BED DOUBLE PLATE

$17.99

$

Usually ships in 4-12 days

0

5

Gravely 05963800

BLT-HEX .44-14X1.25 GR5 YWZC

$2.99

$

In Stock, only 1 left!

0

6

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06400914

WSHR-FL-STL .468X1.00X.125 YZ

$

$

Not available

8

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06527500

NUT-LK-NYL .44-14 YWZC

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 06714300

PIN-CTR .12X1.50 EXTPRSQCT YZ

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 07100907

ASSM, WHL/TIRE 16X6.50-8 K500
(Superseded to 07101138)

$151.99

$

Usually ships in 4-12 days

0

12

Gravely 00150052

BUSHING, MACH .750X1.25X.048 Y

$5.49

$

Usually ships in 4-12 days

0

13

Gravely D14280

BOLT, 3/8-16 X 1 GR8 BLACK

$2.99

$

Usually ships in 4-12 days

0
