988159 (61 HE) - Gravely Pro-Hydro 61" Walk-Behind Mower, Pro-Steer, Electric (SN: 010000 & Above) Console And Deck Mounting Parts Diagram

Pro-Hydro 61" Walk-Behind Mower, Pro-Steer, Electric

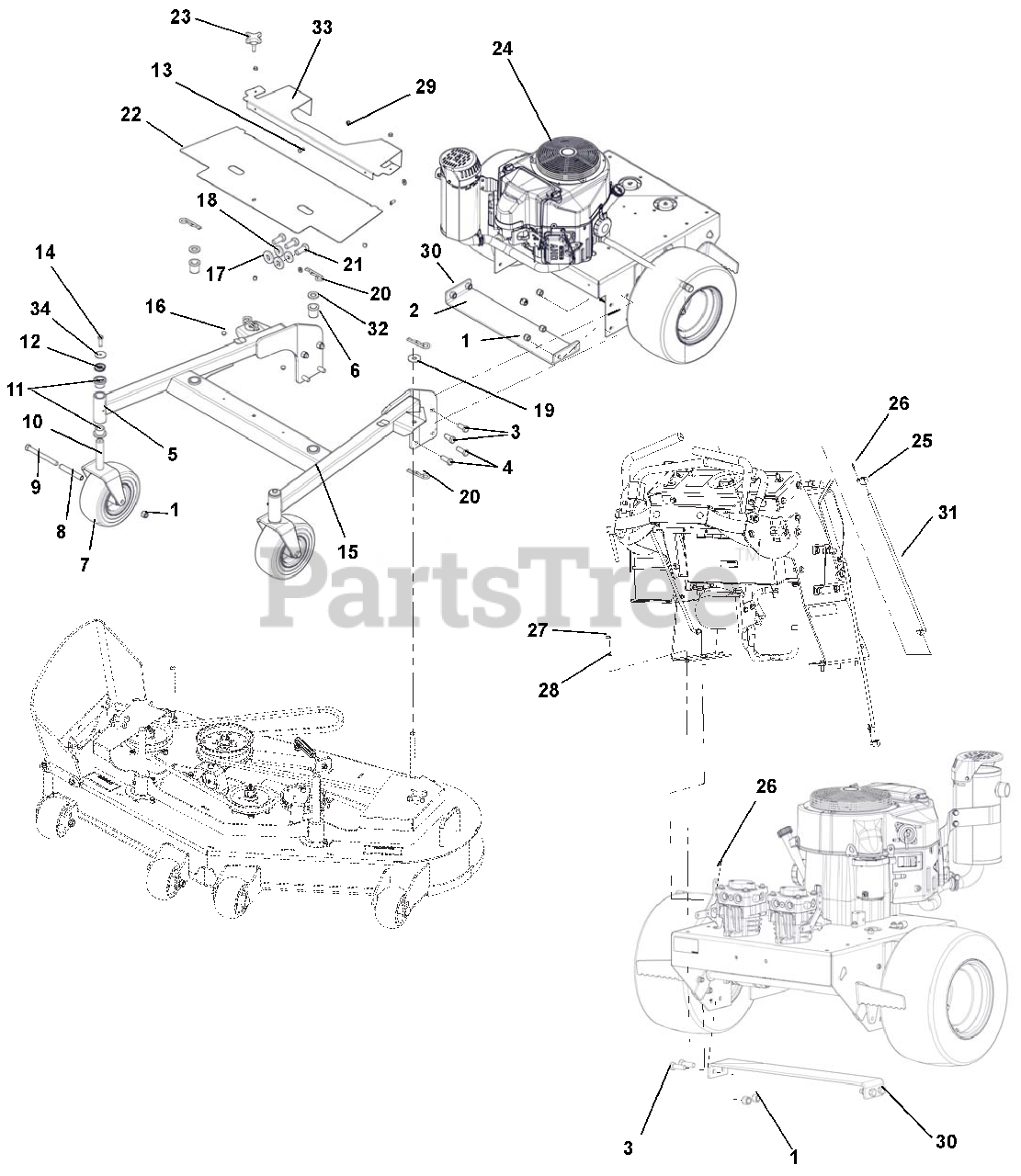

Console And Deck Mounting Parts Diagram

  • Title

1

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

2

Gravely 03925453

PLATE, CROSS GRAVELY ENG BED

Note: (988154, 155, 157, 158)

$25.99

$

Usually ships in 4-12 days

0

Gravely 03932453

PLATE, ENGINE BED FRONT 36

Note: (988153, 156)

$27.99

$

Usually ships in 4-12 days

0

Gravely 04380253

PLATE ENGINE BED FRONT 61

Note: (988159, 169)

$

$

Not available

3

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

4

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

5

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 2 left!

0

6

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$7.99

$

In Stock, Qty 20+

0

7

Gravely 07100931

9X3.5-4 CAREFREE BLT TOGETHER

$151.99

$

In Stock, only 4 left!

0

8

Gravely D13003

TUBE, CASTER AXLE

$21.99

$

In Stock, only 2 left!

0

9

Gravely 05964100

BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$7.49

$

In Stock, Qty 12

0

10

Gravely 03855153

WLDT, FRONT WHEEL FLWLK GRVLY

$125.99

$

In Stock, only 1 left!

0

11

Gravely 04366100

BRG, FLG 1.00 X 1.25 X 1.00

$17.99

$

In Stock, only 2 left!

0

12

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

14

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 03841053

WLDT, DECK FRAME 52 FLWLK GRV

Note: (988155, 158)

$708.99

$

Usually ships in 4-12 days

0

Gravely 03858953

WLDT, DECK FRAME 48 FLWLK GRV

Note: (988154, 157)

$790.99

$

Usually ships in 4-12 days

0

Gravely 03902653

WLDT, DECK FRAME 36" GRV FLWLK

Note: (988153, 156) (SN 000101 - 019999)

$782.99

$

Usually ships in 4-12 days

0

Gravely 04553953

WLDMT, FRAME CARR 36" RECOIL

Note: (988153, 156) (SN 020000 and up)

$384.99

$

Usually ships in 4-12 days

0

Gravely 04366753

WLDT, DECK FRAME 61 FLWLK

Note: (988159, 169)

$694.99

$

Usually ships in 4-12 days

0

16

Gravely 07503100

BUMPER GROMMET

$3.99

$

In Stock, Qty 14

0

17

Gravely 03841023

WASHER, .905X1.750X.250

$

$

Not available

18

Gravely 06400913

WSHR-FL-STL .630X1.50X.25 YWZC
(Superseded to 06401033)

$7.49

$

In Stock, Qty 13

0

19

Gravely 06442900

WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, Qty 13

0

20

Gravely 06713300

PIN-HAIR-INT .17X.68X3.50 YWZC
(Superseded to 06700228)

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 05901321

BOLT, HEX 5/8-11 1.5" GR8 YWZC
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 04247353

SHIELD, BELT 52" MAIN

Note: (988155, 158) (SN 000101 - 020999)

$

$

Not available

Gravely 04588153

SHIELD, BELT 52" MAIN

Note: (988155, 158) (SN 021000 - 029999)

$25.99

$

Usually ships in 4-12 days

0

Gravely 04664053

SHIELD, BELT 52" HYDRO WALK

Note: (988155, 158) (SN 030000 and up)

$

$

Not available

Gravely 04229953

SHIELD, BELT 48" MAIN

Note: (988154, 157) (SN 000101 - 020999)

$49.99

$

Usually ships in 4-12 days

0

Gravely 04588053

SHIELD, BELT 48" MAIN

Note: (988154, 157) (SN 021000 - 029999)

$25.99

$

Usually ships in 4-12 days

0

Gravely 04660253

SHIELD, BELT 48" HYDRO WALK

Note: (988154, 157) (SN 030000 and up)

$52.99

$

Usually ships in 4-12 days

0

Gravely 03932553

PLATE, ENGINE BED REAR 36

Note: (988153, 156) (SN 000101 - 020999)

$23.99

$

Usually ships in 4-12 days

0

Gravely 04456453

SHIELD, BELT 36" HYD WLK GRAVE

Note: (988153, 156) (SN 021000 and up)

$39.99

$

Usually ships in 4-12 days

0

Gravely 04369953

SHIELD, BELT 61 FLOAT WALK

Note: (988159, 169) (SN 000101 - 029999)

$51.99

$

Usually ships in 4-12 days

0

Gravely 04670853

SHIELD, BELT 61" HYDRO WALK

Note: (988159, 169) (SN 030000 and up)

$

$

Not available

23

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

Note: (000101 - 020000)

$10.99

$

In Stock, only 4 left!

0

Gravely 04378100

KNOB, 3/8 -16 X .75

Note: (020001 and up)

$13.99

$

Usually ships in 4-12 days

0

24

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

25

Gravely D33002

SWIVEL, 3/8-24

$12.99

$

Usually ships in 4-12 days

0

26

Gravely 00967353

RING, RUE .375 X .054 X 1.254

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (988154, 155, 157, 158)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

30

Gravely 03932053

PLATE, ENGINE BED REAR 52/48

Note: (988154, 155, 157, 158, 159, 169)

$27.99

$

Usually ships in 4-12 days

0

Gravely 03932553

PLATE, ENGINE BED REAR 36

Note: (988153, 156)

$23.99

$

Usually ships in 4-12 days

0

31

Gravely 03858912

ROD, DRIVE CONTROL G2FW

Note: (000101 - 020000)

$

$

Not available

Gravely 03858913

ROD, DRIVE TWIN LOOP DBL OFFST

Note: (020001 - and up)

$55.99

$

Usually ships in 4-12 days

0

32

Gravely 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

$4.99

$

In Stock, Qty 6

0

33

Gravely 04247253

SHIELD, BELT 52" SAFETY

Note: (988155, 158) (SN 000101 - 020999)

$50.99

$

Usually ships in 4-12 days

0

Gravely 04228953

SHIELD, BELT 48" SAFETY
(Superseded to 04585953)

Note: (988153, 154, 156, 157) (SN 000101 - 021000)

$

$

Not available

Gravely 04585953

SHIELD, BELT 48-52 PROWALK

Note: (988154, 155, 157, 158) (SN 021001 - 029999)

$

$

Not available

34

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0
