988170 (48 LP) - Gravely Pro-Walk 48" Walk-Behind Mower, Propane (SN: 040000 & Above) Engine Parts Diagram

Pro-Walk 48" Walk-Behind Mower, Propane

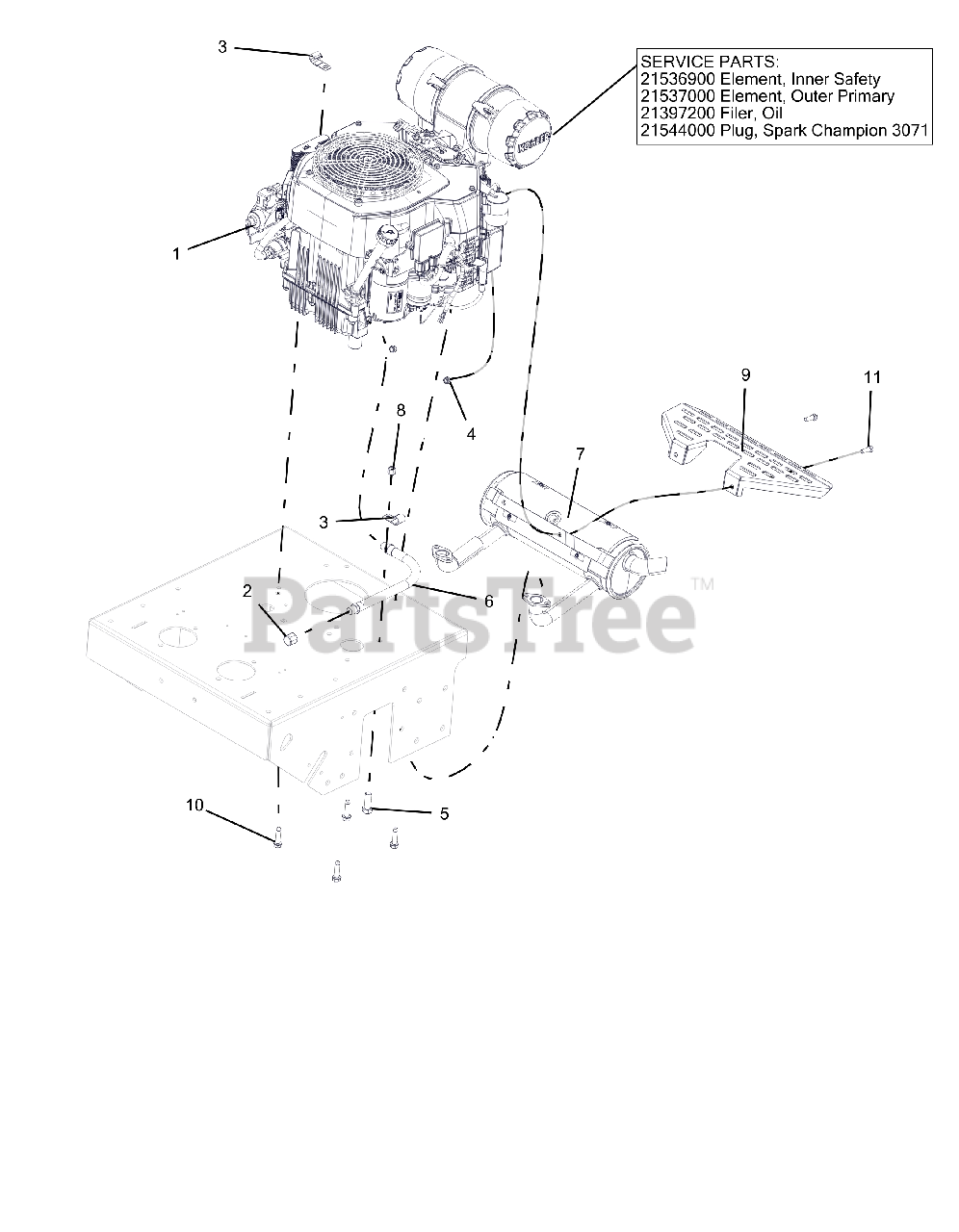

Engine Parts Diagram

  • Title

1

Gravely 08201035

ENGINE, KOHLER PVC680 EFI LP

$

$

Not available

2

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

3

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

4

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

5

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 04058500

HOSE, HYD .38-11-OK M6N0-M6N0
(Superseded to 05155100)

$20.99

$

In Stock, only 1 left!

0

7

Gravely 04375100

MFLR, KOHLER

$200.99

$

Usually ships in 4-12 days

0

8

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

9

Gravely 04807651

GUARD, HEAT SHIELD

Note: (BLACK)

$70.99

$

Usually ships in 4-12 days

0

10

Gravely 07417400

SCR-TAP .38-16X1.50 HWH TR YZ
(Superseded to 07400203)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, only 2 left!

0

12

Gravely 21536900

ELEMENT, INNER SAFETY

Note: SERVICE PART

$28.99

$

In Stock, only 3 left!

0

13

Gravely 21537000

ELEMENT, OUTER PRIMARY

Note: SERVICE PART

$28.99

$

In Stock, Qty 20+

0

14

Gravely 21397200

FILTER, OIL
(Superseded to 20715100)

Note: SERVICE PART

$17.99

$

In Stock, only 4 left!

0

15

Gravely 21544000

PLUG, SPARK CHAMPION 3071

Note: SERVICE PART

$3.49

$

In Stock, Qty 20+

0
