988170 (48 LP) - Gravely Pro-Walk 48" Walk-Behind Mower, Propane (SN: 040000 & Above) Handlebars - Left Hand Parts Diagram

Pro-Walk 48" Walk-Behind Mower, Propane

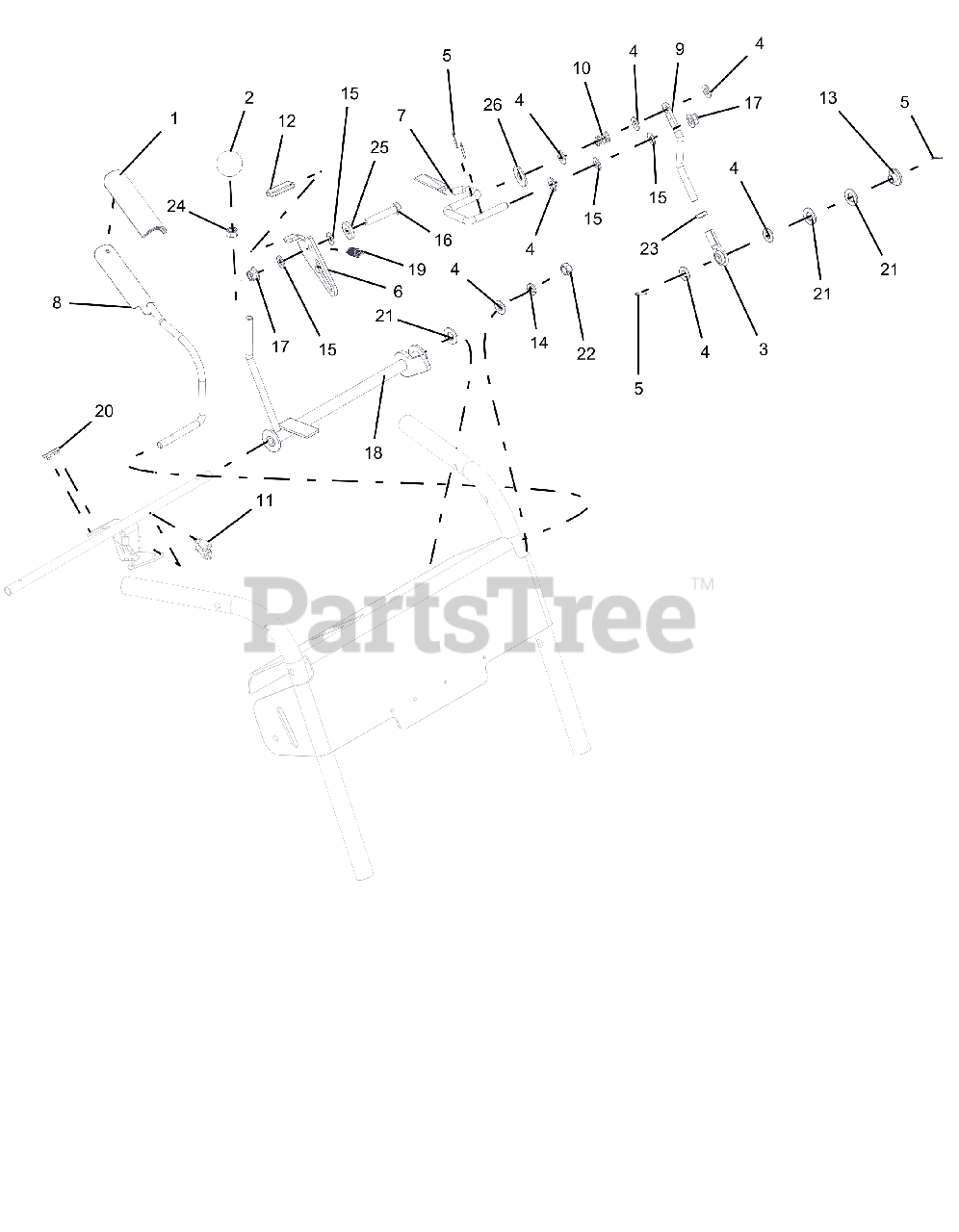

Handlebars - Left Hand Parts Diagram

  • Title

1

Gravely 00384500

GRIP, CLUTCH LEVER, LH AND RH

$2.49

$

In Stock, only 2 left!

0

2

Gravely 07533500

KNOB,BALL -BLACK 1.47" .375-16

$9.99

$

In Stock, only 4 left!

0

3

Gravely 03563100

ROD END, .38 RH

$15.99

$

In Stock, only 2 left!

0

4

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 5

0

6

Gravely 04220451

LATCH-LH THUMB

Note: (BLACK)

$15.99

$

Usually ships in 4-12 days

0

7

Gravely 04905200

LEVER, HAND CONTROL LH

$79.99

$

Usually ships in 4-12 days

0

8

Gravely 04740351

WLDMT, LEVER LH OP MY14-BLACK

$55.99

$

Usually ships in 4-12 days

0

9

Gravely 04926200

ROD, STEERING LINK

$41.99

$

Usually ships in 4-12 days

0

10

Gravely 08338800

SPRG, COMPRESSION

$6.99

$

In Stock, only 3 left!

0

11

Gravely 08337000

SPRG, EXTENSION

$5.99

$

In Stock, only 2 left!

0

12

Gravely 04928700

GRIP, THUMB LATCH

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 05501028

BSHG-FLG .385X.500X.875X.31

$21.99

$

In Stock, only 1 left!

0

14

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

15

Gravely 06433600

WSHR-FL-NYL .375X.75X.060

$0.99

$

In Stock, Qty 14

0

16

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, Qty 11

0

17

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 04926400

WELDMENT, LH LEVER

$129.99

$

Usually ships in 4-12 days

0

19

Gravely 08339300

SG-TENS .041X.500X1.750

$5.99

$

In Stock, only 1 left!

0

20

Gravely 07503100

BUMPER GROMMET .125 X .25 REV

$3.49

$

In Stock, only 2 left!

0

21

Gravely 06443300

WSHR-FL-NYL .518X1.00X.08

$0.99

$

In Stock, Qty 7

0

22

Gravely 06522900

NUT-HEX .375-24 YWZC
(Superseded to 06500940)

$2.49

$

In Stock, only 1 left!

0

23

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

24

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

25

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZC
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 06441000

WSHR-FL-STL..50X1.25X.083 YWZ
(Superseded to 06401202)

$2.99

$

In Stock, Qty 13

0
