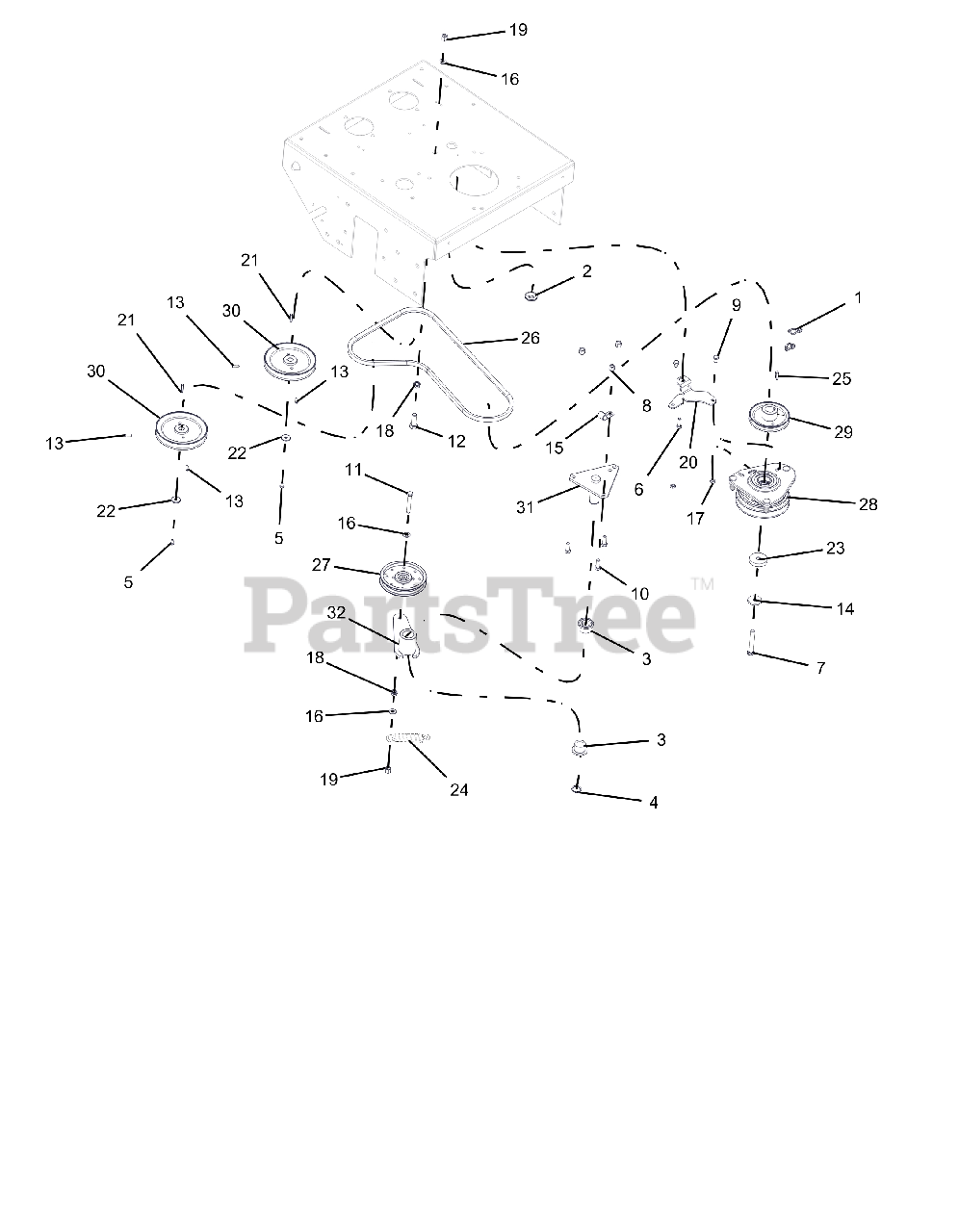

988170 (48 LP) - Gravely Pro-Walk 48" Walk-Behind Mower, Propane (SN: 040000 & Above) Idler And Clutch Parts Diagram

Pro-Walk 48" Walk-Behind Mower, Propane

Idler And Clutch Parts Diagram

  • Title

1

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

2

Gravely 03384007

GROMMET:RUB:.88IDx1.38ODX.14GR

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 04366100

BRG, FLANGE 1.00 X 1.25 X 1.00

$17.99

$

In Stock, only 3 left!

0

4

Gravely 05700160

SNAP, RING, 1.00 X .042 EXT

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 05900045

BLT-HEX M6 X 1.0X10 YWZC

$

$

Not available

6

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

7

Gravely 05901535

BLT-HEX .44-20X3.00 GR8 YWZC NYTORQ
(Superseded to 05901819)

$6.49

$

Usually ships in 4-12 days

0

8

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

9

Gravely 05947200

BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.99

$

In Stock, Qty 13

0

10

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 7

0

13

Gravely 06000222

SCR-SET, 25-20X.75 SKHCUPDL REV

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 06400936

WSHR, 7/16" SPRING DISC

$11.99

$

In Stock, only 2 left!

0

15

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

16

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$1.49

$

In Stock, Qty 7

0

18

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

20

203840

PLATE, CLUTCH DOG

$

$

Not available

21

966058

KEY, RND - M5XM5XM30

$

$

Not available

22

Gravely D14160

WASHER, .250 WIDE HEAVY FLAT Y

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 05501222

SPCR, .450 X 2.00 X .396

$11.99

$

Usually ships in 4-12 days

0

24

Gravely D18071

SPRG, EXTENSION

$11.99

$

Usually ships in 4-12 days

0

25

Gravely D18145

KEY, .250 X .250 X .995 TPR

$7.49

$

Usually ships in 4-12 days

0

26

Gravely D38006

BELT, HA 55.1 EL AMD OHR

$54.99

$

In Stock, only 2 left!

0

27

Gravely GDA10032

PULLEY, FLAT 4.50 X .375 W/BRG

$44.99

$

Usually ships in 4-12 days

0

28

Gravely 00200665

CLUTCH ASSY, OGURA

$383.99

$

In Stock, only 2 left!

0

29

Gravely 07338700

PULLEY, V-BELT WLK TRANS DRIVE

$81.99

$

Usually ships in 4-12 days

0

30

Gravely 07338800

PULLEY, V-BELT PUMP HYD WLK

$105.99

$

Usually ships in 4-12 days

0

31

203918

WLDMT, IDLER PIVOT MOUNT

$

$

Not available

32

Gravely D15032

WLDMT, IDLER ARM

$34.99

$

Usually ships in 4-12 days

0
