988170 (48 LP) - Gravely Pro-Walk 48" Walk-Behind Mower, Propane (SN: 040000 & Above) LP Tank Mounting Parts Diagram

Pro-Walk 48" Walk-Behind Mower, Propane

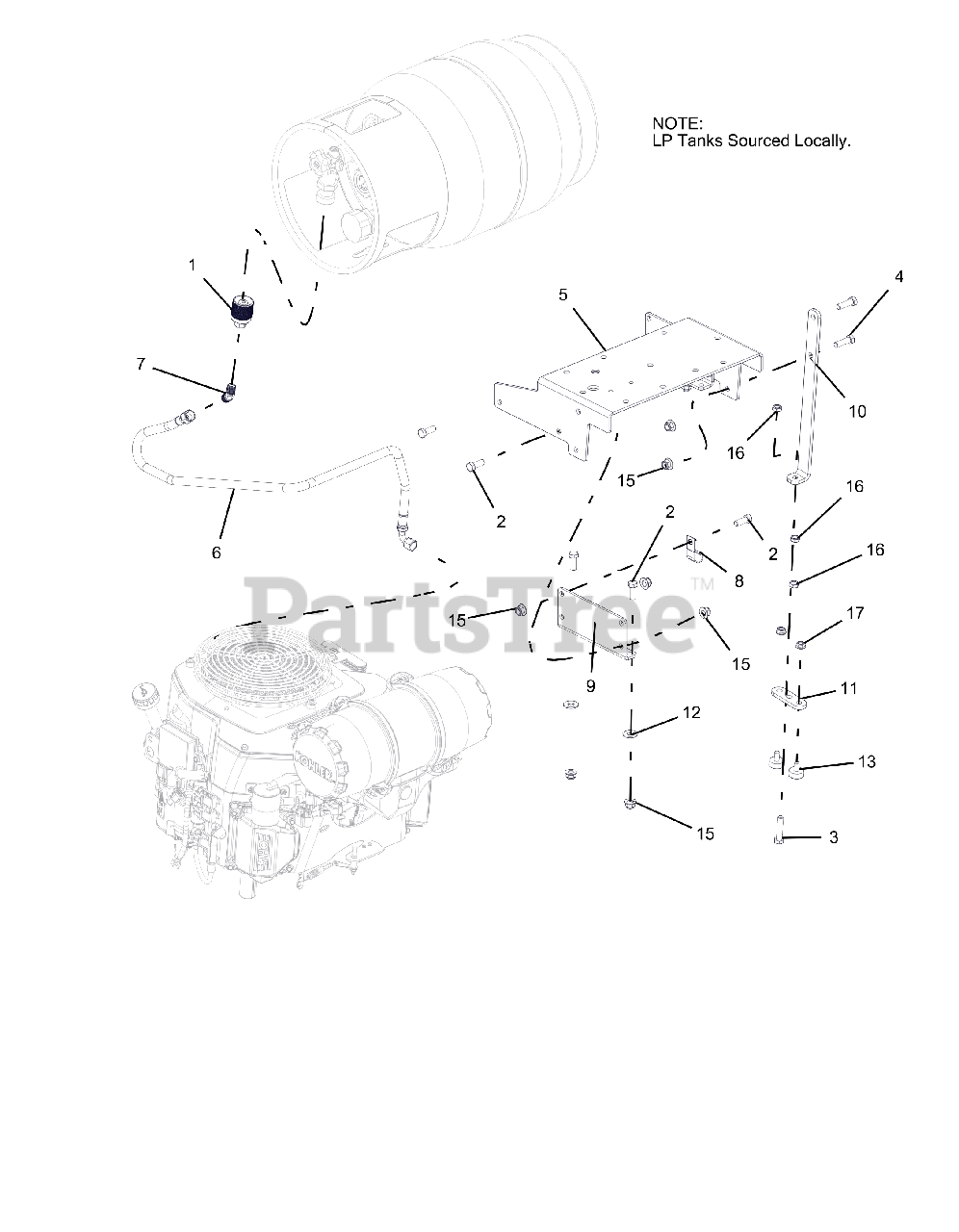

LP Tank Mounting Parts Diagram

  • Title

1

Gravely 04215300

FTG, LPG TANK COUPLER -LH THRD

$87.99

$

Usually ships in 4-12 days

0

2

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 05974000

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901612)

$2.99

$

In Stock, only 1 left!

0

4

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 10

0

5

Gravely 04783851

SUPPORT, TANK

$

$

Not available

6

Gravely 04575800

HOSE, LPG SS25UL 6-4-6-30.00

$40.99

$

Usually ships in 4-12 days

0

7

Gravely 04772800

FTG, 45° 1/4-NPTF 9/16-18 45 FLG

$

$

Not available

8

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

9

Gravely 04785651

MOUNT, TANK

$

$

Not available

10

Gravely 04785951

STAND, TANK SIDE

$

$

Not available

11

Gravely 04786851

BAR, FOOT

$

$

Not available

12

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZC
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0

13

Gravely 07533600

BUMPER, RUBBER

$14.99

$

In Stock, only 4 left!

0

14

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, only 3 left!

0

17

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0
