988171 - Gravely Pro-Walk 36" Walk-Behind Mower, Kawasaki FS (SN: 000101 & Above) Discharge Chute and Belt Guards - 36" Parts Diagram

Pro-Walk 36" Walk-Behind Mower, Kawasaki FS

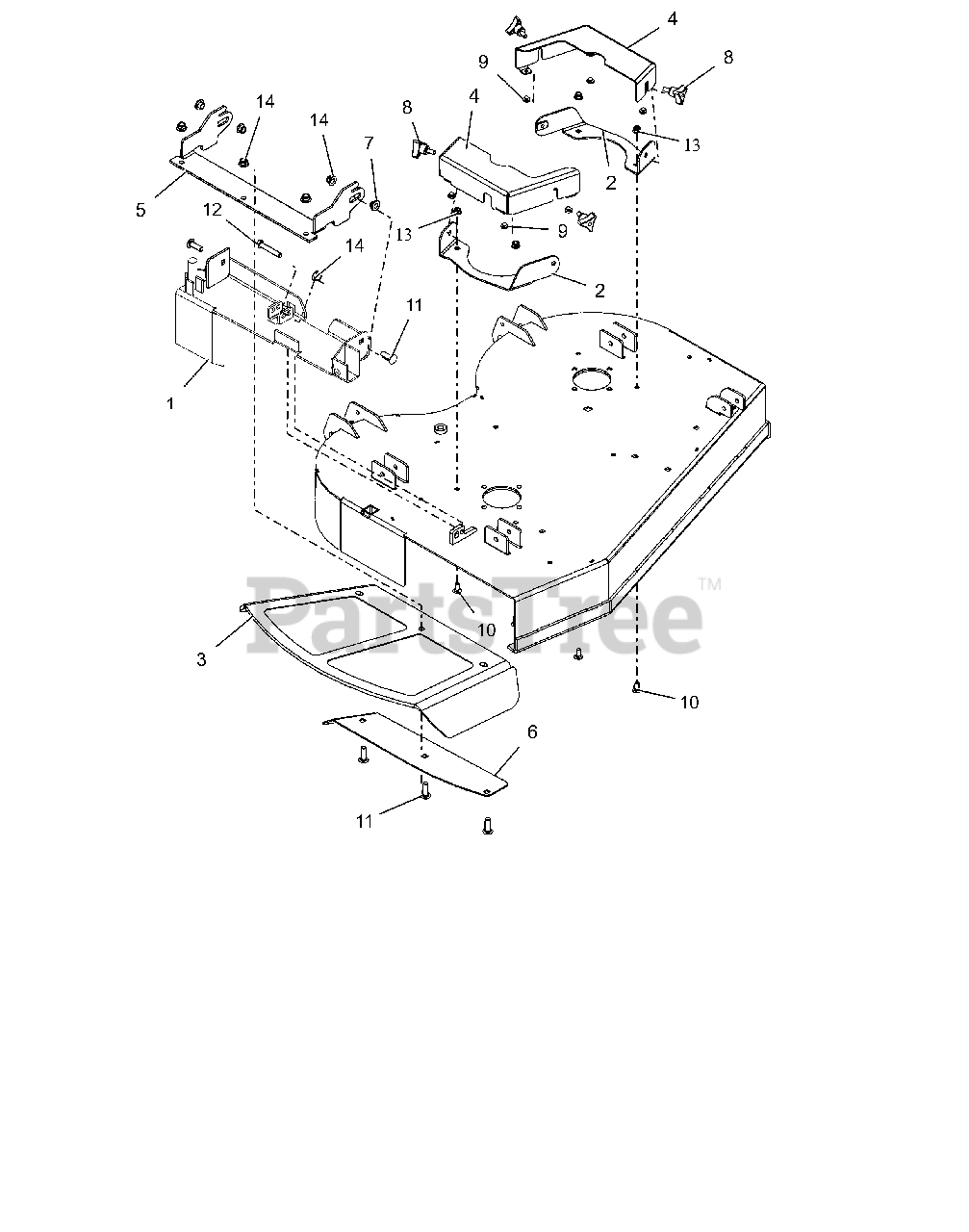

Discharge Chute and Belt Guards - 36" Parts Diagram

  • Title

1

Gravely 05119753

WLDMT, DISCHARGE CHUTE (RED)

$214.99

$

Usually ships in 4-12 days

0

2

Gravely 05137653

WLDMT, BELT GUARD MTG BRKT (RED)

$80.99

$

Usually ships in 4-12 days

0

3

Gravely 04881200

CHUTE,48-60" FRMD RUBBER DISCH

$84.99

$

In Stock, only 1 left!

0

4

Gravely 05137853

GUARD, 36" DECK BELT (RED)

$83.99

$

Usually ships in 4-12 days

0

5

Gravely 05138153

BRKT, 36" CHUTE MTG (RED)

$58.99

$

Usually ships in 4-12 days

0

6

Gravely 05142051

PLATE, 36" DISCH CHUTE CLAMP (BLACK)

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

8

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$6.99

$

In Stock, Qty 20+

0

9

Gravely 07503100

BUMPER GROMMET

$3.99

$

In Stock, Qty 20+

0

10

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 06222200

@BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

$2.99

$

In Stock, Qty 12

0

12

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

13

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0
