988171 - Gravely Pro-Walk 36" Walk-Behind Mower, Kawasaki FS (SN: 000101 & Above) Electrical - 36" Parts Diagram

Pro-Walk 36" Walk-Behind Mower, Kawasaki FS

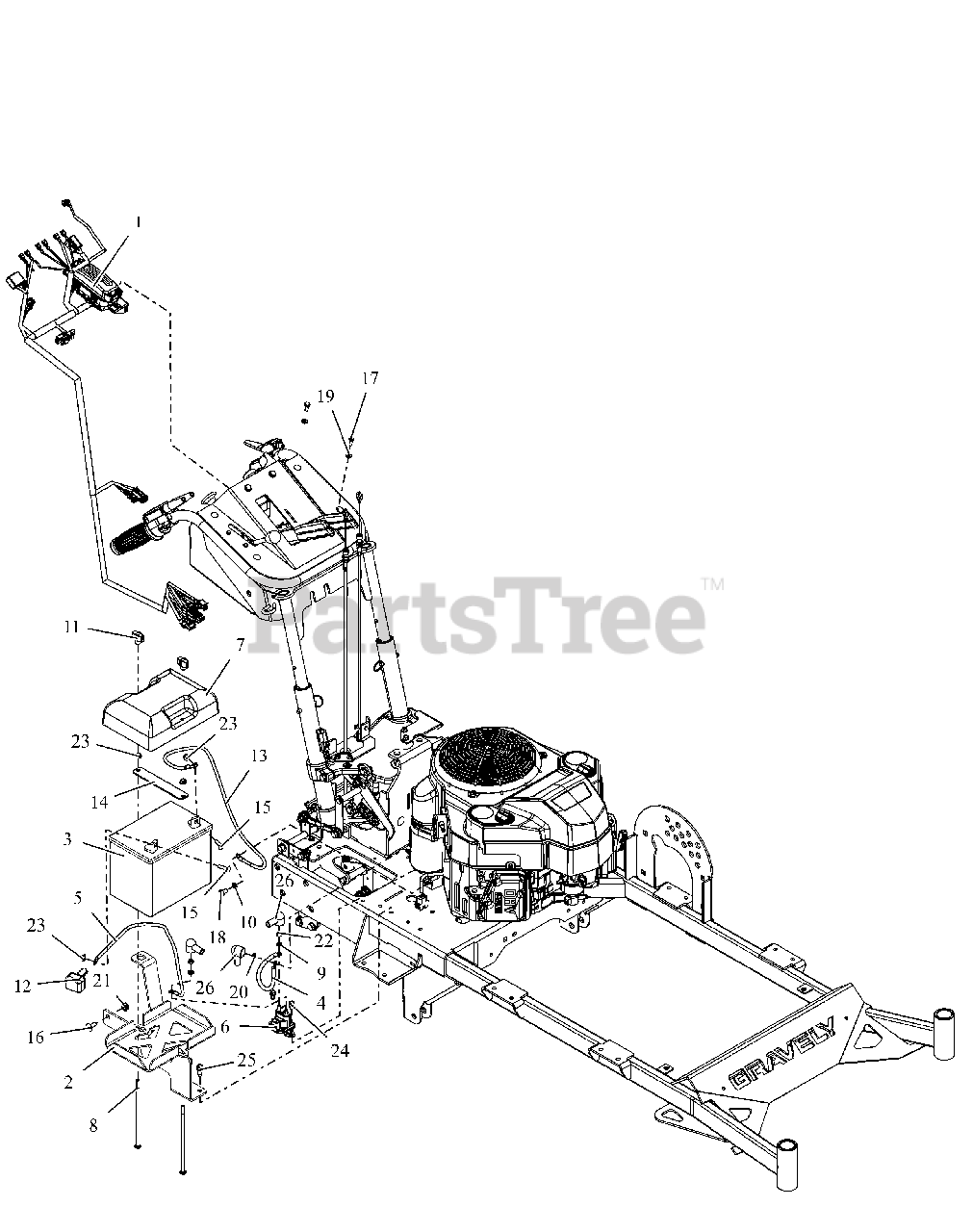

Electrical - 36" Parts Diagram

  • Title

1

Gravely 05092000

HARNESS, HYDRO PROWALK

$175.99

$

Usually ships in 4-12 days

0

2

Gravely 05141953

WLDMT, BATTERY TRAY

$69.99

$

Usually ships in 4-12 days

0

3

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

4

Gravely 03286000

CABLE-POSITIVE BATTERY 9.00"

$9.99

$

In Stock, only 3 left!

0

5

Gravely 03287200

CABLE - START 22.00"

$21.99

$

In Stock, only 2 left!

0

6

Gravely 04781700

SOLENOID, STARTER (SEALED)

$46.99

$

In Stock, Qty 20+

0

7

Gravely 04912900

COVER, BATTERY

$11.99

$

In Stock, only 2 left!

0

8

Gravely 06220400

@BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

$5.49

$

In Stock, only 2 left!

0

9

Gravely 06306800

@WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

10

Gravely 06307200

@WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

$0.99

$

In Stock, only 1 left!

0

11

Gravely 07500104

KNOB, WING - .25-20 UNC

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 07505700

INSULATOR

$10.99

$

Usually ships in 4-12 days

0

13

Gravely 08840400

CBL,NEGATIVE BATTERY 20.00

$18.99

$

Usually ships in 4-12 days

0

14

Gravely 09130751

STRAP, BATTERY

$7.99

$

Usually ships in 4-12 days

0

15

Gravely 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 05975900

@BLT-HEX M6-1X16 YWZC
(Superseded to 05902026)

$1.49

$

In Stock, only 2 left!

0

18

Gravely 05970001

@BLT-HEX M8 X 1.25X14 YWZC
(Superseded to 05902018)

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

20

Gravely 06500728

NUT, HEX-JAM M6-1.0 G8.8 ZCC

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06539800

NUT-HEX M6X1.0 YWZC
(Superseded to 06500925)

$1.49

$

Usually ships in 4-12 days

0

23

Gravely 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.99

$

In Stock, only 4 left!

0

26

Gravely 07533200

BOOT, EYELET TERMINAL

$3.99

$

In Stock, Qty 9

0
