988171 - Gravely Pro-Walk 36" Walk-Behind Mower, Kawasaki FS (SN: 000101 & Above) Fuel System Parts Diagram

Pro-Walk 36" Walk-Behind Mower, Kawasaki FS

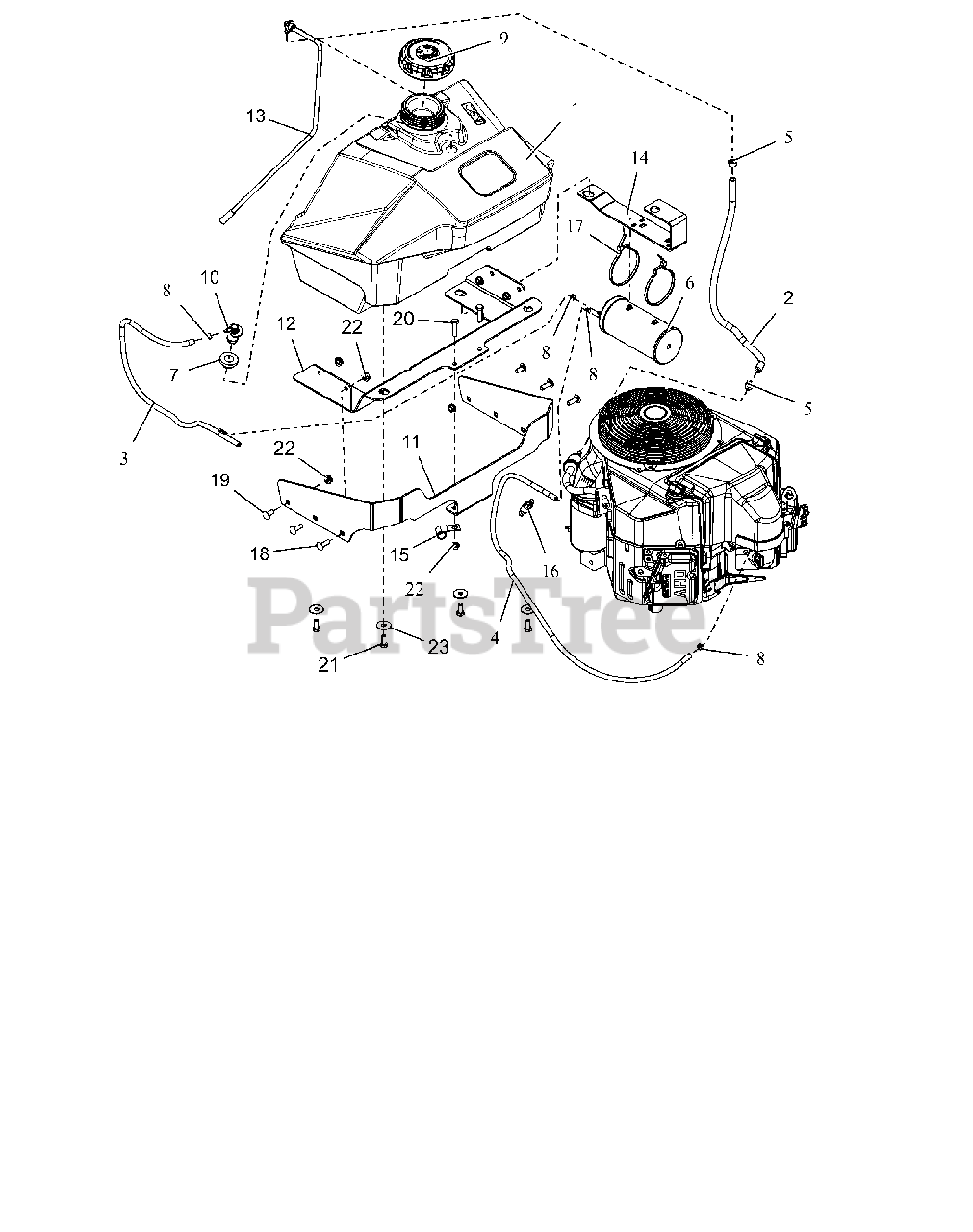

Fuel System Parts Diagram

  • Title

1

Gravely 05070600

TANK, PRO-WALK

$

$

Not available

2

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: 19.00"

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

Note: 29.00"

$1.49

$

In Stock, Qty 10

0

4

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

Note: 43.50"

$1.49

$

In Stock, Qty 10

0

5

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

6

Gravely 04058210

400 CC CARBON CANISTER 3/16 PT

$99.99

$

Usually ships in 4-12 days

0

7

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

8

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.99

$

Usually ships in 4-12 days

0

9

Gravely 04558100

CAP, FUEL NONVENT AUTOLOCK

$23.99

$

Usually ships in 4-12 days

0

10

Gravely 04815400

VALVE, 2-WAY

$19.99

$

In Stock, Qty 6

0

11

Gravely 05007253

BRKT, FUEL TANK MTG (RED)

$121.99

$

Usually ships in 4-12 days

0

12

Gravely 05067253

BRKT, FUEL

$

$

Currently unavailable

13

Gravely 05096700

ASM, PROWALK FUEL TANK PICK UP

$29.99

$

Usually ships in 4-12 days

0

14

Gravely 05143053

BRKT, CARBON CANISTER MTG (RED)

$

$

Currently unavailable

15

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 07001712

CLIP, T, .38-.50

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 00967006

CABLE TIE, .19 X 14.4

$

$

Not available

18

Gravely 06200007

@BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 6

0

21

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 20+

0
