988171 - Gravely Pro-Walk 36" Walk-Behind Mower, Kawasaki FS (SN: 000101 & Above) Steering Controls - Lower - 36" Parts Diagram

Pro-Walk 36" Walk-Behind Mower, Kawasaki FS

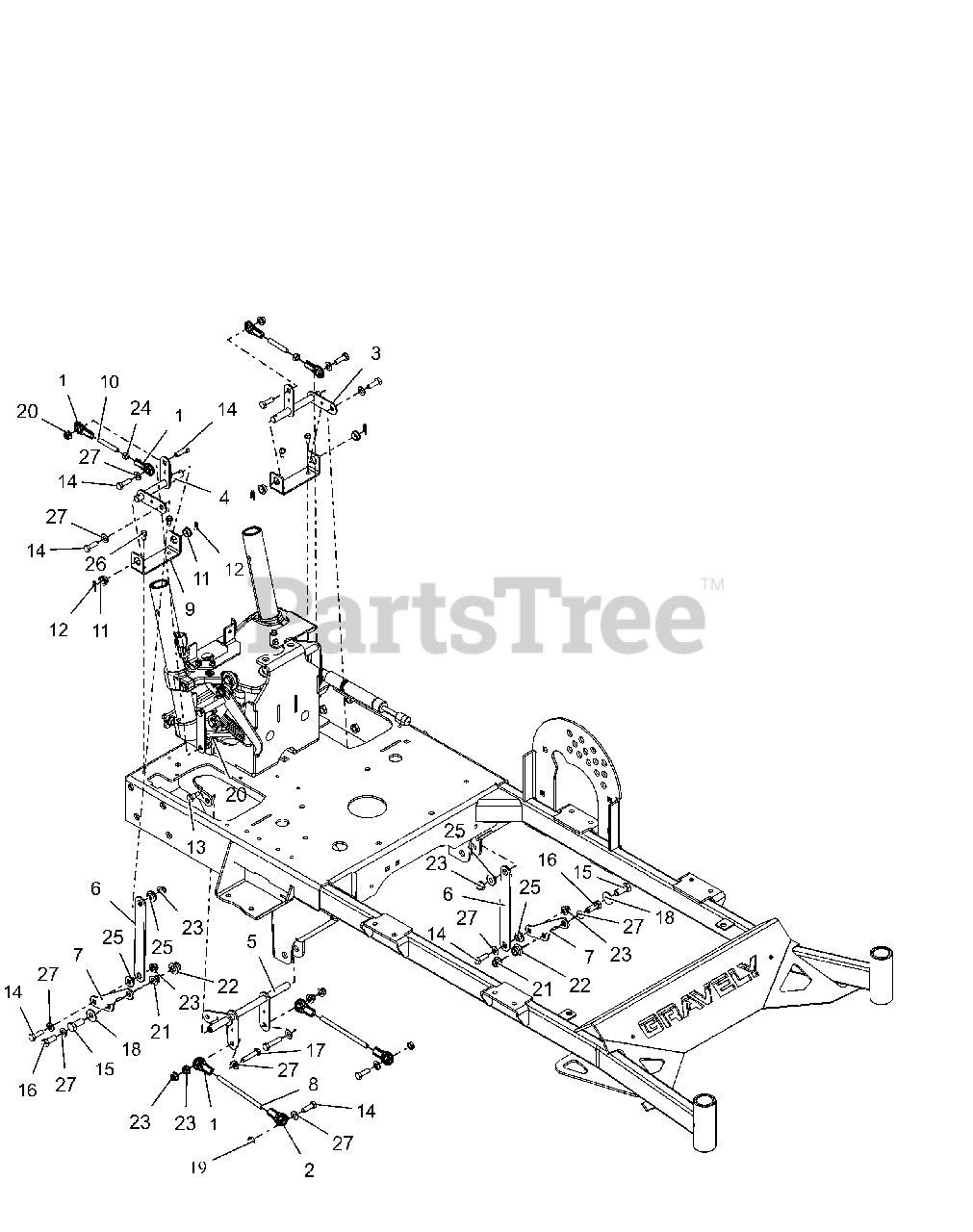

Steering Controls - Lower - 36" Parts Diagram

  • Title

1

Gravely 03787100

ALIGNABALL, 5/16 RH THREAD

$18.99

$

In Stock, Qty 5

0

2

Gravely 03787200

ALIGNABALL, 5/16 LH THREAD
(Superseded to 05298700)

$17.99

$

Usually ships in 4-12 days

0

3

Gravely 05110400

WLDMT, 36" LH LOWER STEERING SHAFT

$

$

Currently unavailable

4

Gravely 05110300

WLDMT, 36" RH LOWER STEERING SHAFT

$

$

Currently unavailable

5

Gravely 05145151

WLDMT, BRAKE SHAFT

$86.99

$

Usually ships in 4-12 days

0

6

Gravely 05013951

LINK, VERT STEERING (BLACK)

$21.99

$

Usually ships in 4-12 days

0

7

Gravely 05014051

LINK, TRANSAXLE STEERING (BLACK)

$18.99

$

Usually ships in 4-12 days

0

8

Gravely 05071700

ROD, STEERING

$58.99

$

Usually ships in 4-12 days

0

9

Gravely 05110251

BRKT, 36" LOWER STEERING MTG (BLACK)

$35.99

$

Usually ships in 4-12 days

0

10

Gravely 05100900

LINKAGE, STEERING

$8.49

$

Usually ships in 0 days

0

11

Gravely 05501119

BSHG,FLANGE .500X.625X.270X.75

$3.99

$

In Stock, only 2 left!

0

12

Gravely 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 6

0

13

Gravely 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, only 4 left!

0

14

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

15

Gravely 05958700

@BLT-HEX .44-14X1.00 GR5 YWZC
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

16

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 6

0

18

Gravely 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$1.49

$

In Stock, Qty 7

0

20

Gravely 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06500009

@NUT-LK-NYL-FLG .44-14 YWZC
(Superseded to 06500811)

$6.49

$

In Stock, only 1 left!

0

23

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06529500

NUT-HEX .312-24 YWZC
(Superseded to 06500939)

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, Qty 20+

0

26

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
