988171 - Gravely Pro-Walk 36" Walk-Behind Mower, Kawasaki FS (SN: 000101 & Above) Tires and Caster Forks - 36" Parts Diagram

Pro-Walk 36" Walk-Behind Mower, Kawasaki FS

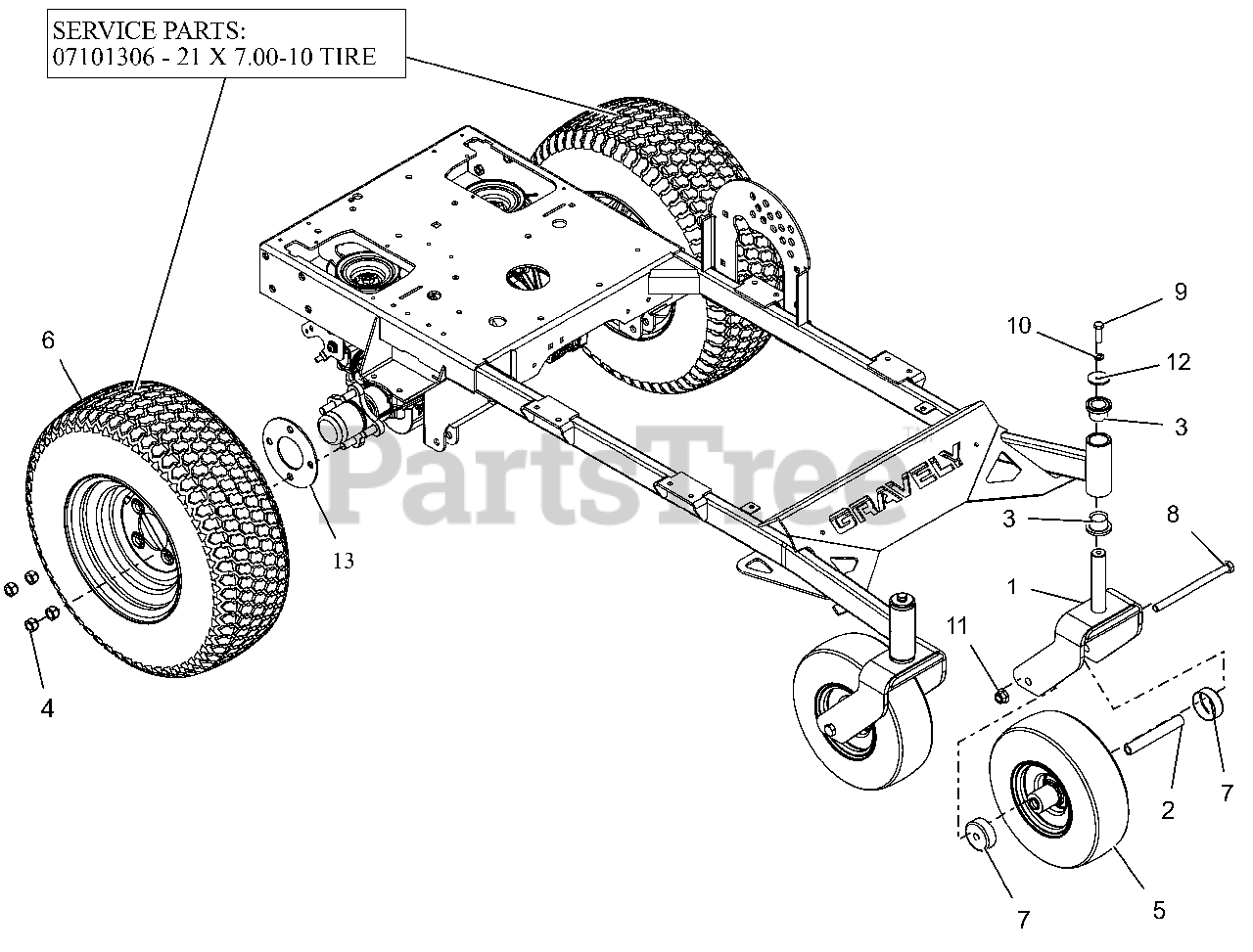

Tires and Caster Forks - 36" Parts Diagram

  • Title

1

Gravely 04986653

WLDMT, CASTER FORK (RED)

$146.99

$

Usually ships in 4-12 days

0

2

Gravely 00278500

SPACER, ROLLED WHEEL

$17.99

$

In Stock, Qty 20+

0

3

Gravely 04366100

BRG, FLG 1.00 X 1.25 X 1.00

$18.99

$

Usually ships in 4-12 days

0

4

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 07101233

ASM, WHL/TIRE 11X4.00-5

$111.99

$

Usually ships in 4-12 days

0

6

Gravely 07101305

ASSY, TIRE/WHL 21X7.00-10

$183.99

$

Usually ships in 4-12 days

0

6

Gravely 07101306

TIRE, 21 X 7.00-10

Note: SERVICE PART

$

$

Not available

7

Gravely 09357800

SHIELD, WHEEL BEARING

$13.99

$

In Stock, Qty 20+

0

8

Gravely 05900002

@BLT-HEX .50-13X7.00 GR5 YWZC
(Superseded to 05901917)

$9.49

$

In Stock, only 2 left!

0

9

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$4.99

$

In Stock, Qty 20+

0

13

Gravely 09126951

SPACER, WHEEL 4-BOLT

$15.99

$

Usually ships in 4-12 days

0
