988171 - Gravely Pro-Walk 36" Walk-Behind Mower, Kawasaki FS (SN: 000101 & Above) Transaxle Drive - 36" Parts Diagram

Pro-Walk 36" Walk-Behind Mower, Kawasaki FS

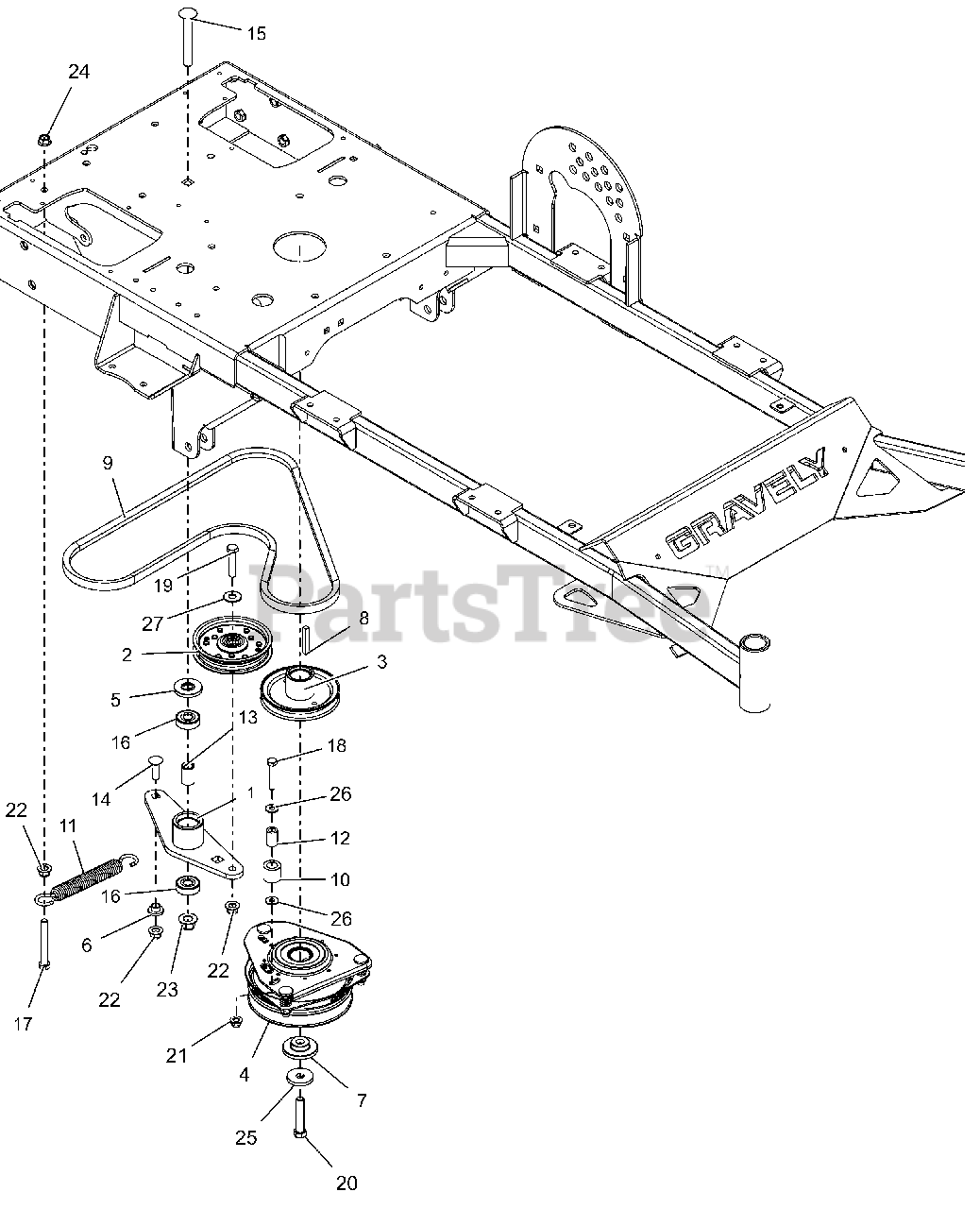

Transaxle Drive - 36" Parts Diagram

  • Title

1

Gravely 05118351

WLDMT, PRO WALK IDLER ARM (BLACK)

$93.99

$

Usually ships in 4-12 days

0

2

Gravely 07300101

ASM, 4" IDLER (.75 WIDE)

$64.99

$

In Stock, Qty 20+

0

3

Gravely 07346167

SHEAVE, ENGINE 4.50 x 1.004 ID (BLACK)

$104.99

$

Usually ships in 4-12 days

0

4

Gravely 03789900

CLUTCH, OGURA GT1A-AR03

$370.99

$

In Stock, only 2 left!

0

5

Gravely 04714600

SPACER, IDLER ARM

$6.99

$

In Stock, Qty 15

0

6

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

7

Gravely 05501206

BSHG-FLG .469X1.06X.574X2.0

$19.99

$

In Stock, only 4 left!

0

8

Gravely 06601800

KEY-STR .25X1.75X.25

$3.99

$

In Stock, only 1 left!

0

9

Gravely 07200610

V-BELT, HA WRAPPED

$47.99

$

In Stock, Qty 8

0

10

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$6.49

$

In Stock, Qty 9

0

11

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

12

Gravely 08833400

BUSH.,S.391X.622X.950 ST

$6.49

$

In Stock, only 4 left!

0

13

Gravely 09357700

SPACER .510 X .75 X 1.1485

$5.49

$

In Stock, Qty 20+

0

14

Gravely 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06200003

@BLT-RHDSSQNK .50-13X3.50 G5YZ
(Superseded to 06200340)

$6.49

$

In Stock, Qty 12

0

16

Gravely 05408000

BRG-BALL .500X1.38X.437

$6.99

$

In Stock, Qty 20+

0

17

Gravely 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 19

0

18

Gravely 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 5

0

19

Gravely 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, only 3 left!

0

20

Gravely 05901532

BLT-HEX .44-20X2.25 G8YZNYTORQ
(Superseded to 05902031)

$6.99

$

Usually ships in 4-12 days

0

21

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 2 left!

0

26

Gravely 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0
