988172 - Gravely Pro-Walk 48" Walk-Behind Mower, Kawasaki FS (SN: 000101 & Above) Steering Controls - Upper (Continued) Parts Diagram

Pro-Walk 48" Walk-Behind Mower, Kawasaki FS

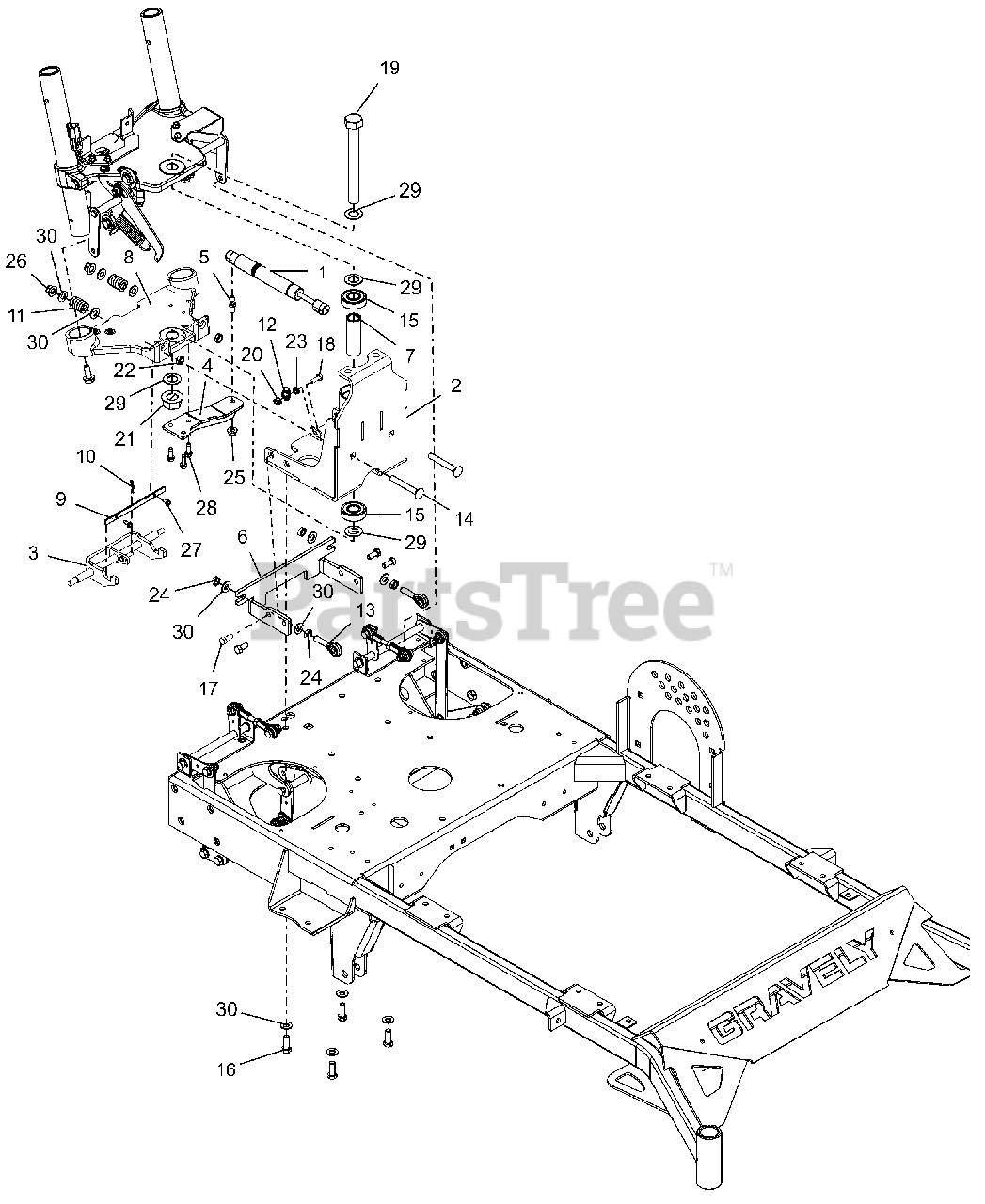

Steering Controls - Upper (Continued) Parts Diagram

  • Title

1

Gravely 03914200

DAMPER, CONTROL

$59.99

$

In Stock, only 1 left!

0

2

Gravely 05007453

WLDMT, BRKT STEERING MTG (RED)

$

$

Currently unavailable

3

Gravely 05114800

WLDMT, STEERING LOCK

$

$

Currently unavailable

4

Gravely 05118253

WLDMT, DAMPENER MTG BRKT (RED)

$65.99

$

Usually ships in 4-12 days

0

5

Gravely 03652200

STUD- BALL

$3.99

$

In Stock, Qty 20+

0

6

Gravely 05115153

BRKT, STEERING LOCK MTG (RED)

$47.99

$

Usually ships in 4-12 days

0

7

Gravely 05127200

SPCR, STEERING

$38.99

$

Usually ships in 4-12 days

0

8

Gravely 05127400

BRKT, LOWER STEERING

$79.99

$

Usually ships in 4-12 days

0

9

Gravely 05128200

STRIP, WEAR

$7.49

$

Usually ships in 4-12 days

0

10

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 9

0

11

Gravely 08300707

SPRG, COMPRESSION

$32.99

$

Usually ships in 4-12 days

0

12

Gravely 08318400

SPRG, EXTENSION

$10.99

$

Usually ships in 4-12 days

0

13

Gravely 08790600

ROD, END 3/8 RH

$60.99

$

Usually ships in 4-12 days

0

14

Gravely 06225400

@BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$4.99

$

In Stock, Qty 11

0

15

Gravely 05406300

BRG-BALL .750X1.750X.50

$27.99

$

In Stock, only 2 left!

0

16

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

19

Gravely 05901732

BLT, HEX 0.75-10X6.5 GR5 ZC120

$

$

Currently unavailable

20

Gravely 06500710

NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 8

0

21

Gravely 06500829

NUT-HEX-FLG-TPLK .75-10 YWZC
(Superseded to 06500931)

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06500635

NUT-LK-CTR JAM .25-20 YWZC
(Superseded to 06500912)

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

25

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

28

Gravely 07400111

SCR-TAP-PM .25-20X.75 TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, only 1 left!

0

29

Gravely 00150052

WSHR-FL-STL .750X1.250X.048 YZ

$5.49

$

Usually ships in 4-12 days

0

30

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0
