988174 - Gravely Pro-Walk 60" Walk-Behind Mower, Kawasaki FS (SN: 000101 & Above) Discharge Chute and Belt Guards - 60" Parts Diagram

Pro-Walk 60" Walk-Behind Mower, Kawasaki FS

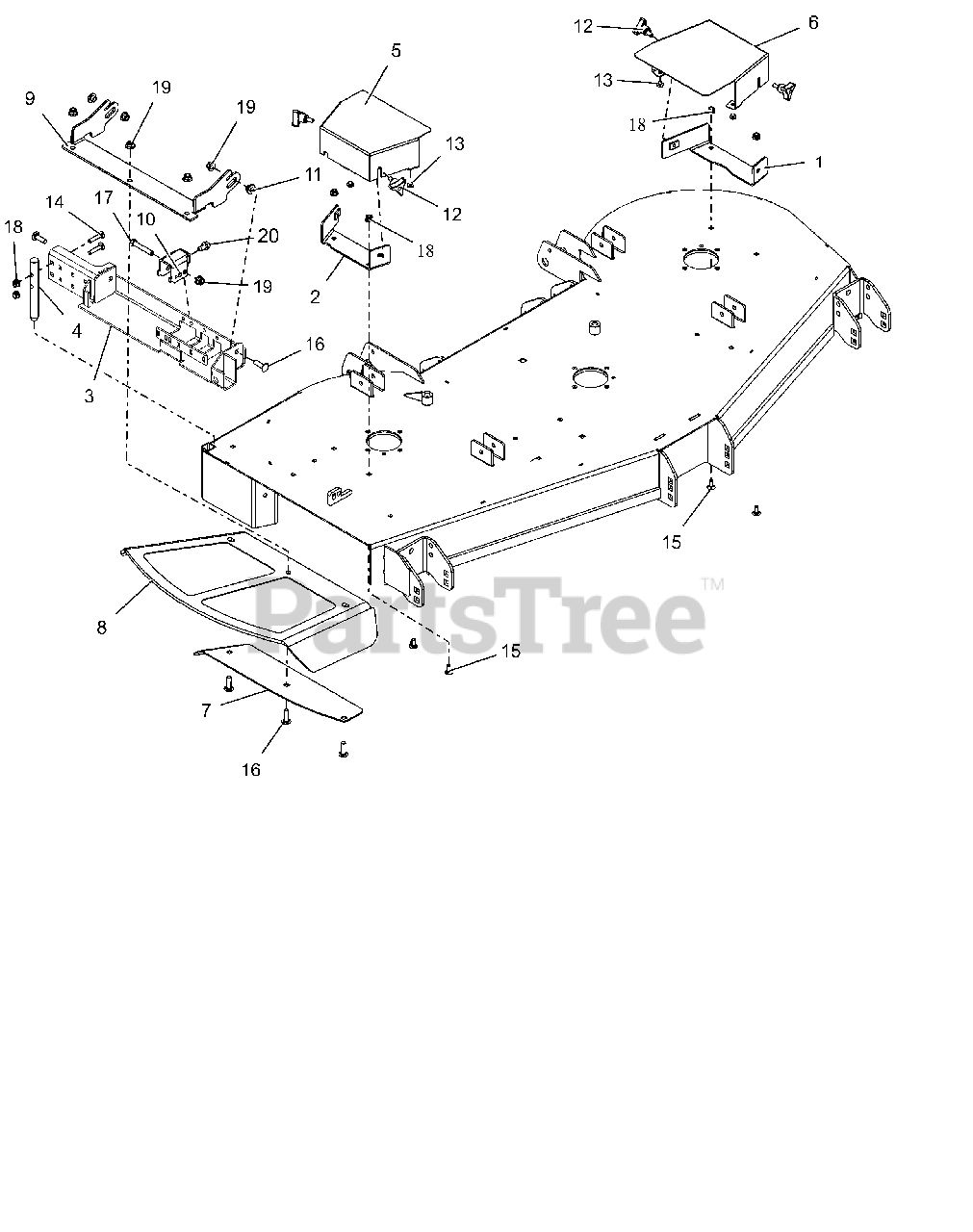

Discharge Chute and Belt Guards - 60" Parts Diagram

  • Title

1

Gravely 04792453

BRKT, LH BELT GUARD MOUNTING

$36.99

$

Usually ships in 4-12 days

0

2

Gravely 04792553

BRKT, RH BELT GUARD MOUNTING

$59.99

$

Usually ships in 4-12 days

0

3

Gravely 04984053

WLDMT, GRASS CATCHER

$139.99

$

Usually ships in 4-12 days

0

4

Gravely 03830600

PIN, DISCHARGE CHUTE X-DRILLED

$32.99

$

Usually ships in 4-12 days

0

5

Gravely 04788353

GUARD, RH DECK BELT

$42.99

$

In Stock, only 1 left!

0

6

Gravely 04788453

GUARD, LH DECK BELT

$43.99

$

Usually ships in 4-12 days

0

7

Gravely 04873751

48-60 DISCH CHUTE CLMP PLT-BLK

$32.99

$

Usually ships in 4-12 days

0

8

Gravely 04881200

CHUTE,48-60" FRMD RUBBER DISCH

$84.99

$

In Stock, only 3 left!

0

9

Gravely 04984353

BRKT, 48-60" CHUTE MTG

$52.99

$

Usually ships in 4-12 days

0

10

Gravely 04985153

BRKT, DISCH. CHUTE MTG

$40.99

$

Usually ships in 4-12 days

0

11

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

12

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$6.99

$

In Stock, Qty 20+

0

13

Gravely 07503100

BUMPER GROMMET

$3.99

$

In Stock, Qty 20+

0

14

Gravely 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 7

0

15

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

16

Gravely 06222200

@BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

$2.99

$

In Stock, Qty 12

0

17

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 12

0

18

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0
