988174 - Gravely Pro-Walk 60" Walk-Behind Mower, Kawasaki FS (SN: 000101 & Above)

Pro-Walk 60" Walk-Behind Mower, Kawasaki FS

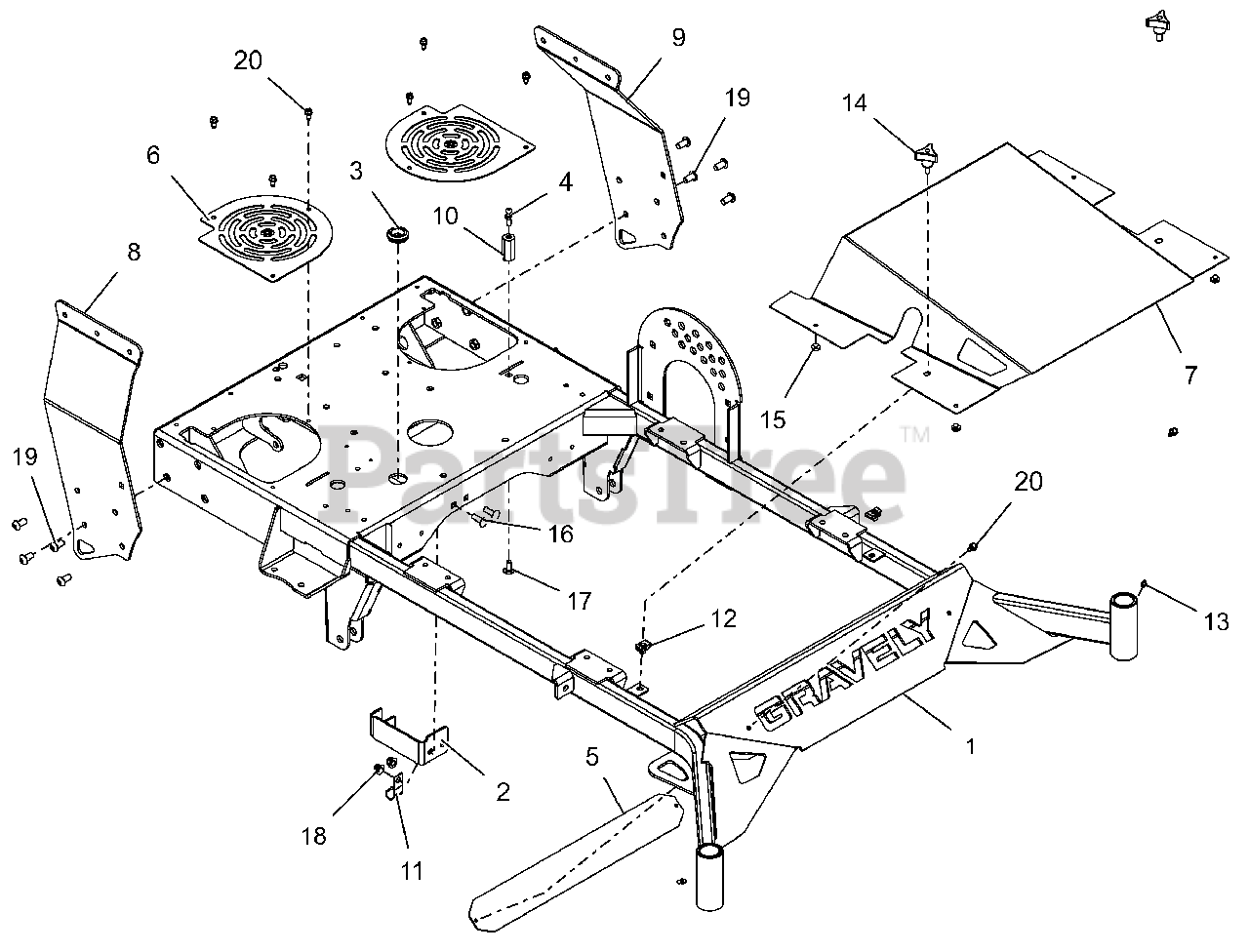

988174 - Gravely Pro-Walk 60" Walk-Behind Mower, Kawasaki FS (SN: 000101 & Above) > Parts Diagrams (22) > Frame - 60"

  • Title
05023553

1

WLDMT, FRAME 60" HYDRO PRO WALK (RED)

Part# 05023553

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1330.58

05066051

2

WLDMT, CLUTCH STOP

Part# 05066051

OEM Warranty Repair Part for Gravely

Currently unavailable

03384007

3

GROMMET:RUB:.88IDX1.38ODX.14GR

Part# 03384007

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03652200

4

STUD- BALL

Part# 03652200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

04386551

5

BUMPER LOGO BACKING PLATE -BLK

Part# 04386551

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.32

04988853

6

COVER, COOLING FAN (RED)

Part# 04988853

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.84

58811900

7

KIT, 60" FRONT SHEILD W DECALS

Part# 58811900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $72.52

05066453

8

PANEL, RH TANK TOWER (RED)

Part# 05066453

OEM Warranty Repair Part for Gravely

Currently unavailable

05066553

9

PANEL, LH TANK TOWER (RED)

Part# 05066553

OEM Warranty Repair Part for Gravely

Currently unavailable

05119800

10

SPCR, DAMPENER MTG

Part# 05119800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

06916000

11

J-CLAMP

Part# 06916000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07000829

12

NUT-CLIP RETAINER 5/16-18X.56

Part# 07000829

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

07001738

13

FTG-LUBE .25-28X.256 SST

Part# 07001738

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07500008

14

KNOB,WING STUD 5/16-18 X .75

Part# 07500008

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $20.07

07503100

15

BUMPER GROMMET

Part# 07503100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06200007

16

@BLT-RHDSSQNK .31-18X1.00 G5YZ

Part# 06200007

OEM Warranty Repair Part for Gravely

Not available

06220800

17

@BLT-RHDSSQNK .31-18X.75 G5YZ

Part# 06220800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06545400

18

@NUT-LK-NYL-FLG .31-18 YWZC

Part# 06545400

OEM Warranty Repair Part for Gravely

Not available

07069200

19

BLT-BTHD-SOCKET .38-16X.75

Part# 07069200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07400034

20

SCR-TAP .25-20X.50 HWH TR YWZ

Part# 07400034

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85
