988174 - Gravely Pro-Walk 60" Walk-Behind Mower, Kawasaki FS (SN: 000101 & Above) Transaxles and Guards - 48", 52", and 60" Parts Diagram

Pro-Walk 60" Walk-Behind Mower, Kawasaki FS

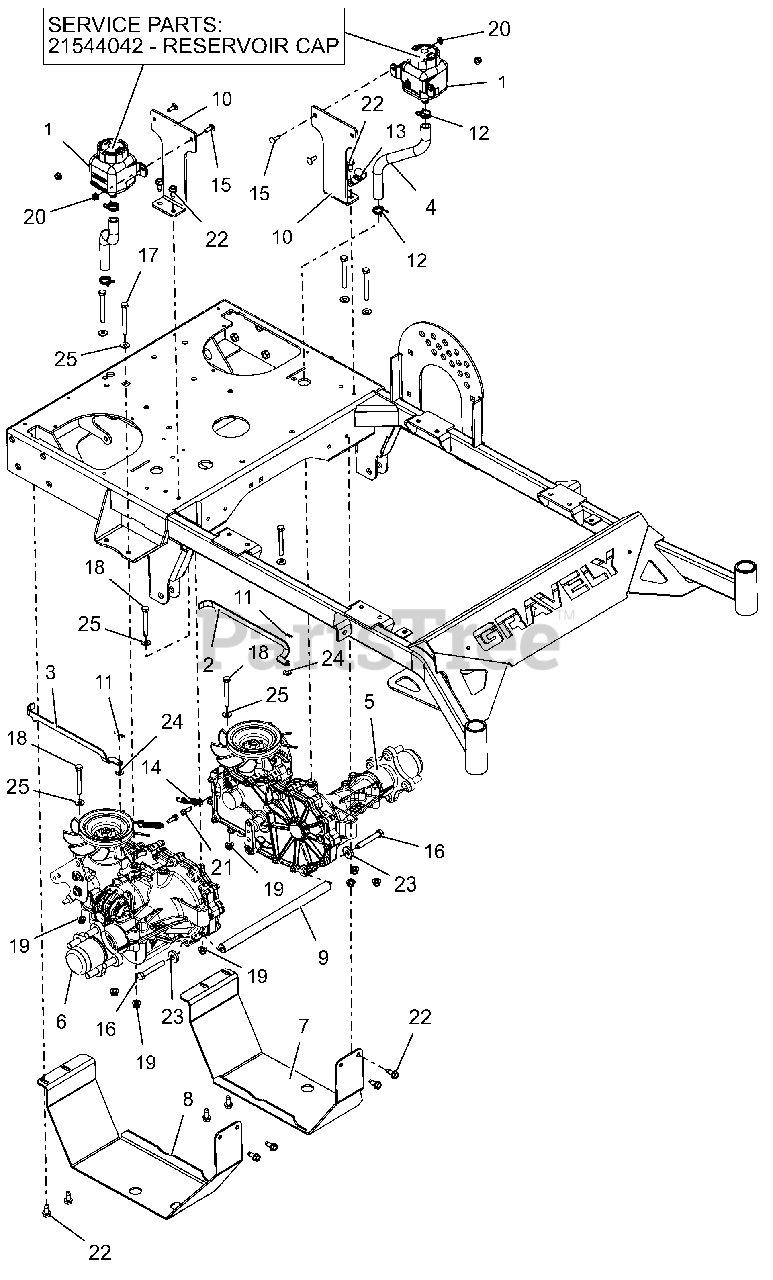

Transaxles and Guards - 48", 52", and 60" Parts Diagram

  • Title

1

Gravely 02970200

TANK, EXPANSION

$32.99

$

In Stock, Qty 5

0

1

Gravely 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: SERVICE PART

$19.99

$

Usually ships in 4-12 days

0

2

Gravely 04992951

BRKT, LH DUMP VALVE (BLACK)

$28.99

$

Usually ships in 4-12 days

0

3

Gravely 04993051

BRKT, RH DUMP VALVE (BLACK)

$25.99

$

Usually ships in 4-12 days

0

4

Gravely 04995500

HOSE, PRO WALK OVERFLOW

$

$

Currently unavailable

5

Gravely 05006200

TRANSAXLE, ZT2800 - LH

$1396.99

$

Usually ships in 4-12 days

0

6

Gravely 05006300

TRANSAXLE, ZT2800 - RH

$

$

Not available

7

Gravely 05015851

PLATE, LH SKID (BLACK)

$

$

Currently unavailable

8

Gravely 05015951

PLATE, RH SKID (BLACK)

$100.99

$

Usually ships in 4-12 days

0

9

Gravely 05016200

SHAFT, CROSS BRACE

$127.99

$

Usually ships in 4-12 days

0

10

Gravely 05068853

BRKT, EXPANSION TANK MTG (RED)

$

$

Currently unavailable

11

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

12

Gravely 06900634

3/4 WIRE HOSE CLMP ZC

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 08300527

SPRING, EXTENSION

$3.49

$

In Stock, only 2 left!

0

15

Gravely 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

17

Gravely 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, only 4 left!

0

19

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

21

Gravely 07400111

SCR-TAP-PM .25-20X.75 TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 11

0

22

Gravely 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, only 2 left!

0

23

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

24

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

25

Gravely 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0
