988180 (48 HE) - Gravely Pro-Hydro 48" Walk-Behind Mower (SN: 000101 & Above) Pulleys And Idlers - 48" Parts Diagram

Pro-Hydro 48" Walk-Behind Mower

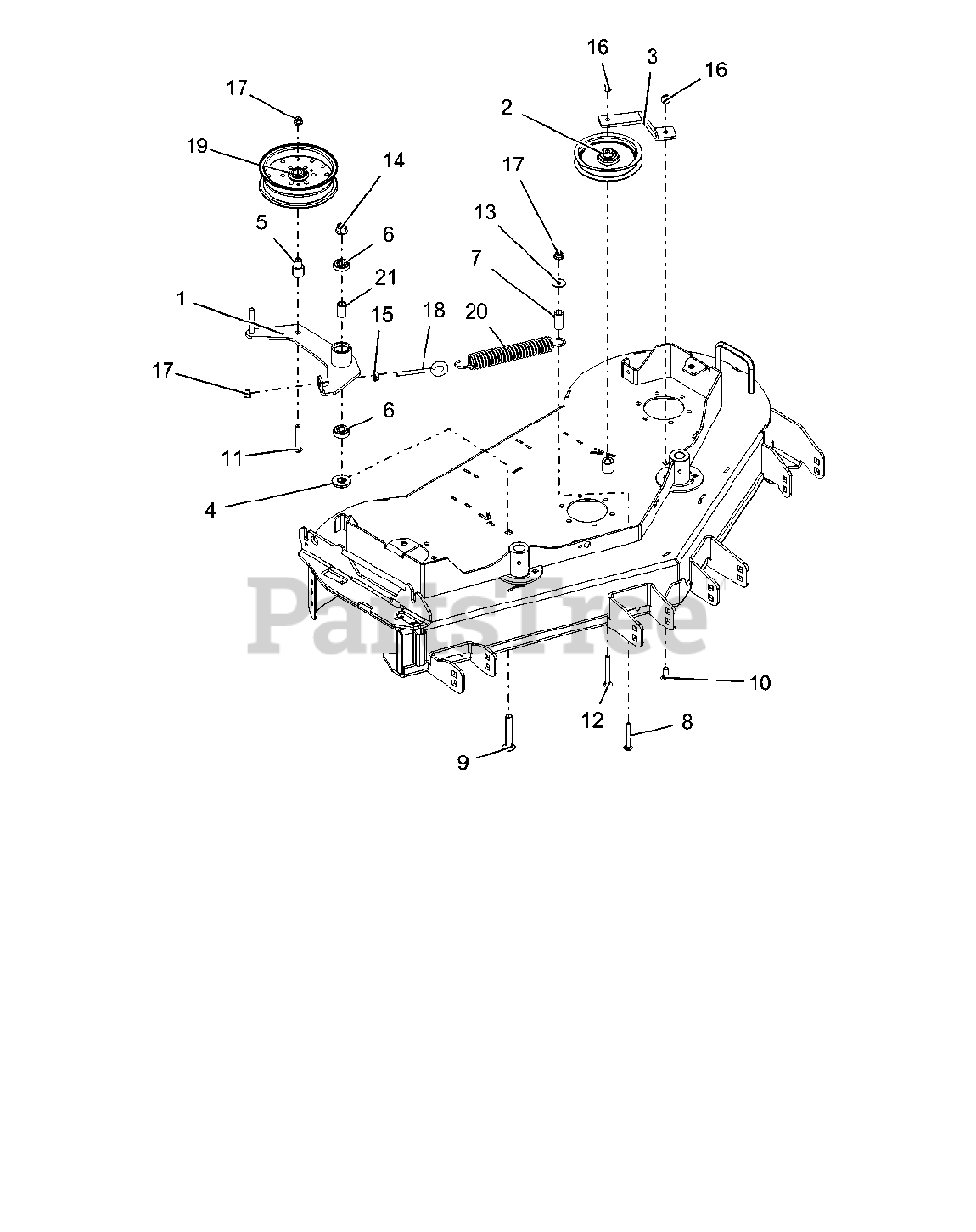

Pulleys And Idlers - 48" Parts Diagram

  • Title

1

Gravely 04846551

WLDMT, IDLER ARM 48 FLWLK

$

$

Not available

2

Gravely 07334500

IDLER, FLAT-5.00X.75

$88.99

$

In Stock, Qty 19

0

3

Gravely 03856451

STRAP, IDLER 48/52 WALK

$14.99

$

Usually ships in 4-12 days

0

4

Gravely 04714600

SPACER, IDLER ARM

$7.49

$

In Stock, Qty 20+

0

5

Gravely 04870200

SPACER, IDLER

$42.99

$

Usually ships in 4-12 days

0

6

Gravely 05408000

BRG-BALL .500X1.38X.437

$7.49

$

In Stock, Qty 20+

0

7

Gravely 05516400

BSHG-SLV .500X.750X1.560

$6.99

$

In Stock, only 2 left!

0

8

Gravely 06200213

BLT-RDHDSQSHK, 38-16X2.50 G5YZ
(Superseded to 06200315)

$4.99

$

In Stock, Qty 12

0

9

Gravely 06200216

BLT,RDHDSQSHNK.50-13X3.25 G5YZ
(Superseded to 06200339)

$4.99

$

In Stock, Qty 20+

0

10

Gravely 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$5.49

$

In Stock, Qty 20+

0

12

Gravely 06228100

@BLT-RDHDSQNK .38-16X3.00 G5YZ
(Superseded to 06200418)

$5.49

$

In Stock, Qty 16

0

13

Gravely 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$3.49

$

In Stock, Qty 10

0

14

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.99

$

In Stock, Qty 20+

0

17

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 07001701

BOLT,EYE .38-16X4.50,.75"EYE

$14.99

$

Usually ships in 4-12 days

0

19

Gravely 07300535

PULLEY, FLAT IDLER 6.00 X .635

$68.99

$

Usually ships in 4-12 days

0

20

Gravely 08300627

SPRG, EXTENSION .170X1.385X6.7

$22.99

$

In Stock, Qty 7

0

21

Gravely 09357700

SPACER .510 X .75 X 1.1485

$5.99

$

In Stock, Qty 20+

0
