988181 (48 LP) - Gravely Pro-Hydro 48" Walk-Behind Mower, Propane (SN: 000101 & Above) Brakes Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Propane

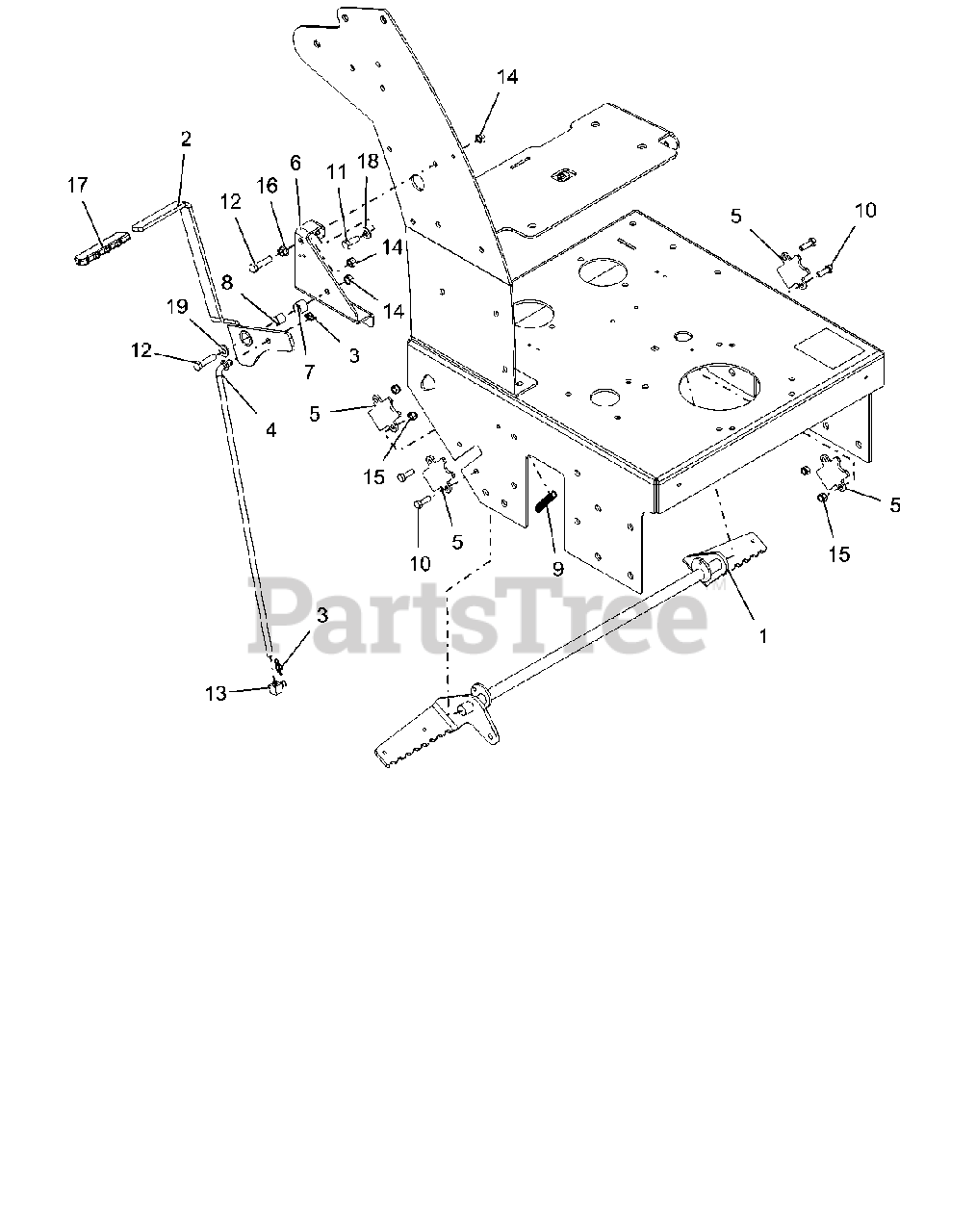

Brakes Parts Diagram

  • Title

1

Gravely 03859951

WLDMT, BRAKE SYS FLOAT HYDRO-BLACK

$129.99

$

Usually ships in 4-12 days

0

2

Gravely 04785751

HANDLE, PARK BRAKE

$

$

Not available

3

967353

RING, RUE .375 x .054 x 1.254

$

$

Not available

4

Gravely 03858911

ROD, DRIVE CONTROL FW

$54.99

$

Usually ships in 4-12 days

0

5

Gravely 03885753

SHOE, BRAKE SYSTEM FLOAT WALK-RED

$6.49

$

Usually ships in 4-12 days

0

6

Gravely 03935053

LOCATOR, BRAKE ARM WD-RED

$25.99

$

Usually ships in 4-12 days

0

7

Gravely 04392300

PARK BRAKE HANDLE BUSHING

$8.49

$

Usually ships in 4-12 days

0

8

Gravely 04392400

PARK, BRAKE LEVER SPACER

$18.99

$

Usually ships in 4-12 days

0

9

Gravely 08300107

SPRG, EXTENSION

$9.49

$

Usually ships in 4-12 days

0

10

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

11

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

13

Gravely D33002

SWIVEL, 3/8-24

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

16

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0

17

Gravely TCU19034

GRIP
(Superseded to 03826900)

$3.99

$

In Stock, Qty 8

0

18

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0
