988181 (48 LP) - Gravely Pro-Hydro 48" Walk-Behind Mower, Propane (SN: 000101 & Above) Dash Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Propane

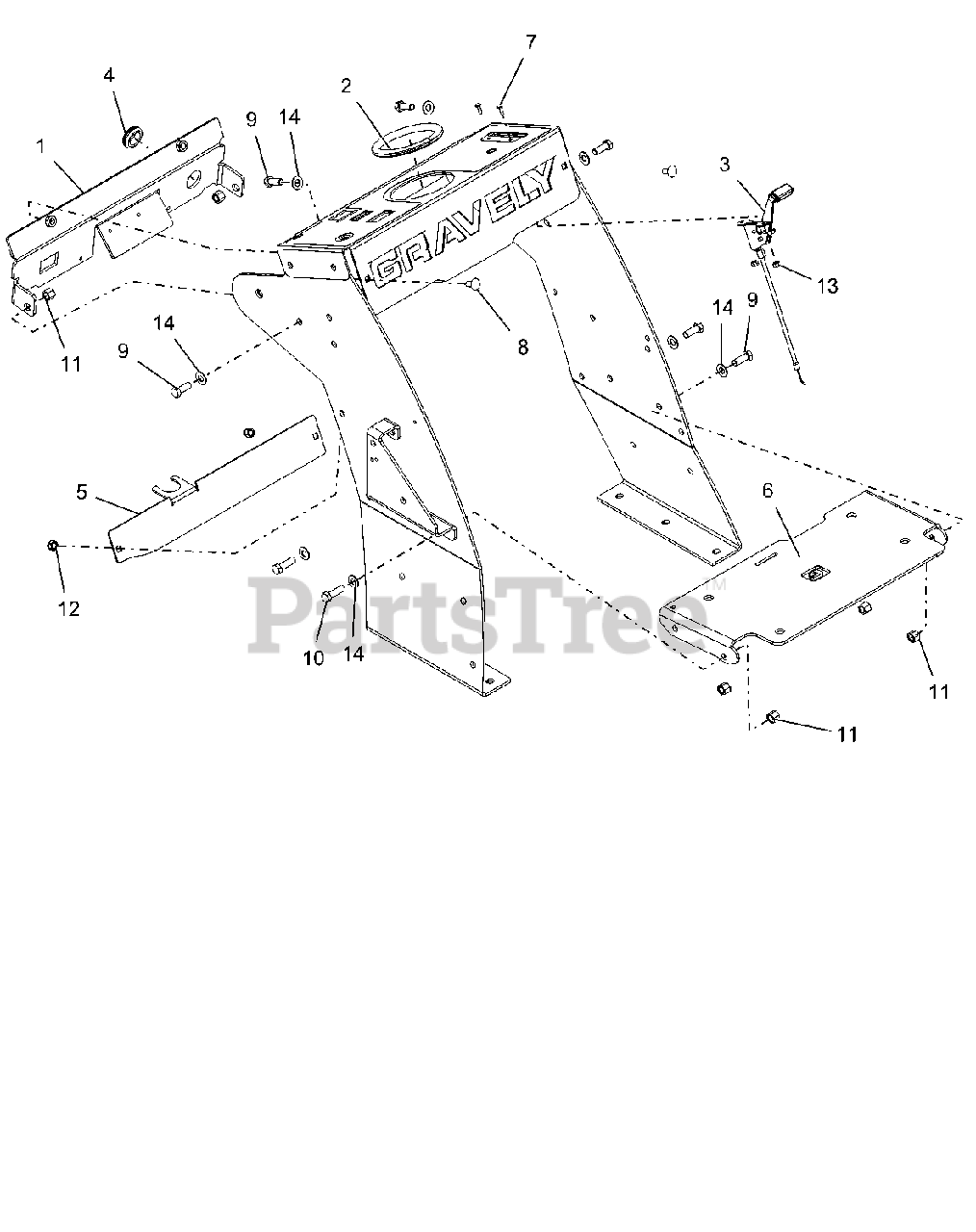

Dash Parts Diagram

  • Title

1

Gravely 04190653

WLDMT, HANDLE BRACE-RED

$

$

Not available

2

Gravely 00170900

TRIM, RUBBER DEGE 12"

$12.24

$

Usually ships in 4-12 days

0

3

Gravely 00200413

CABLE, THROTTLE 49.5"
(Superseded to 06900714)

$34.99

$

In Stock, only 3 left!

0

4

Gravely 03384007

GROMMET:RUB:.88IDx1.38ODX.14GR

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 04263351

BRACKET, REMOTE ROV HYDRO-BLACK

$26.99

$

Usually ships in 4-12 days

0

6

Gravely 04589153

BRKT, FUEL TANK GRAVELY

$43.99

$

Usually ships in 4-12 days

0

7

Gravely 06006023

SCR - PANHDPHLPS 8-32 X .5

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 8

0

9

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 8

0

11

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

12

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

13

Gravely 06531300

NUT-LK-NYL #8-32 YWZC

$1.99

$

Usually ships in 4-12 days

0

14

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
