988181 (48 LP) - Gravely Pro-Hydro 48" Walk-Behind Mower, Propane (SN: 000101 & Above) Engine Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Propane

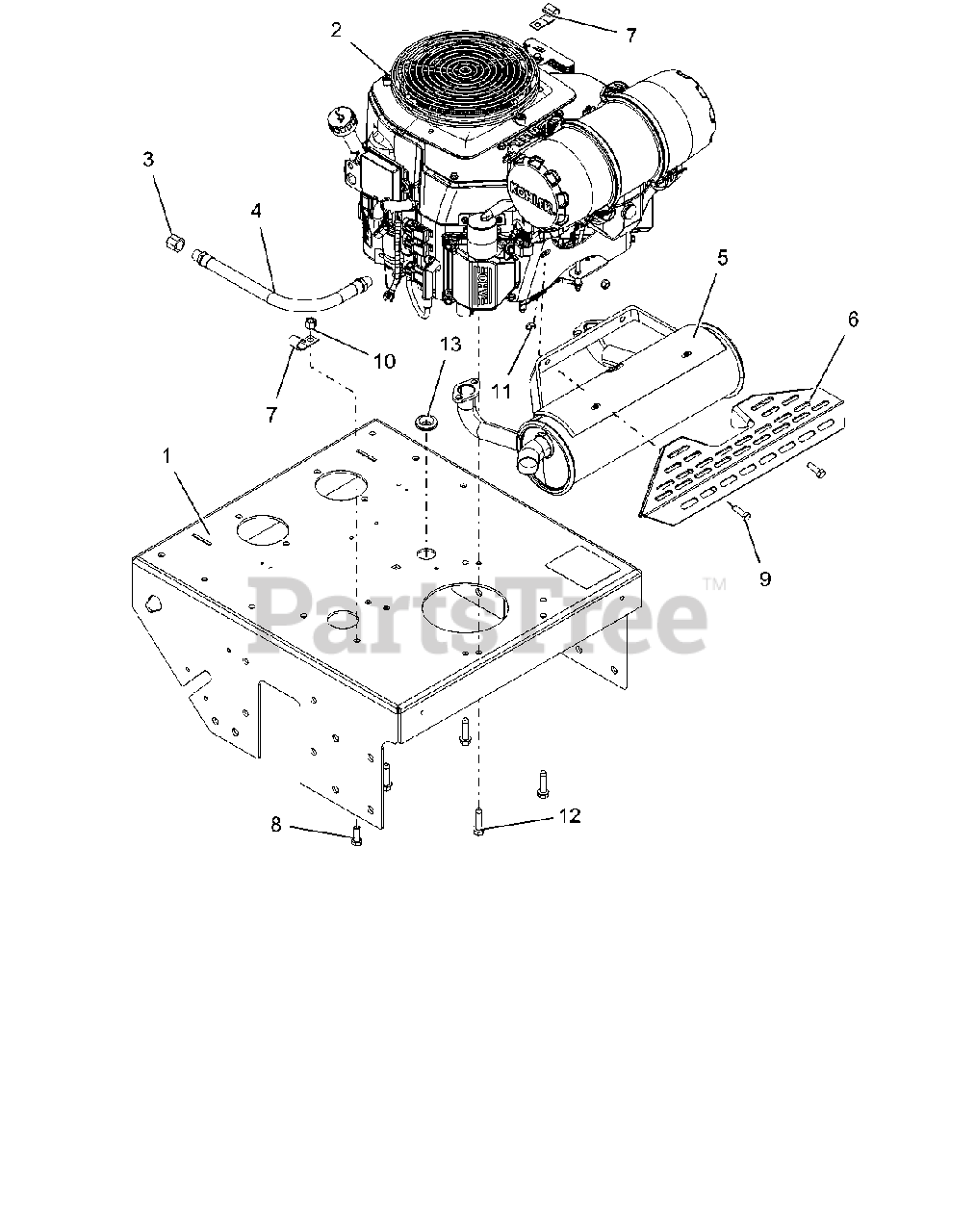

Engine Parts Diagram

  • Title

1

Gravely 58815401

ASSM, 48-52" FRAME W/DECALS

$176.99

$

Usually ships in 4-12 days

0

2

Gravely 08201035

ENGINE, KOHLER PVC680 EFI LP

$

$

Not available

3

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

4

Gravely 04058500

HOSE, HYD .38-11-OK M6N0-M6N0
(Superseded to 05155100)

$20.99

$

In Stock, only 1 left!

0

5

Gravely 04375100

MFLR, KOHLER

$200.99

$

Usually ships in 4-12 days

0

6

Gravely 04807651

GUARD, HEAT SHIELD (BLACK)

$70.99

$

Usually ships in 4-12 days

0

7

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

8

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, only 2 left!

0

10

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

11

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

12

Gravely 07417400

SCR-TAP .38-16X1.50 HWH TR YZ
(Superseded to 07400203)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 03384007

GROMMET:RUB:.88IDx1.38ODX.14GR

$3.49

$

Usually ships in 4-12 days

0
