988181 (48 LP) - Gravely Pro-Hydro 48" Walk-Behind Mower, Propane (SN: 000101 & Above) Frame And Casters Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Propane

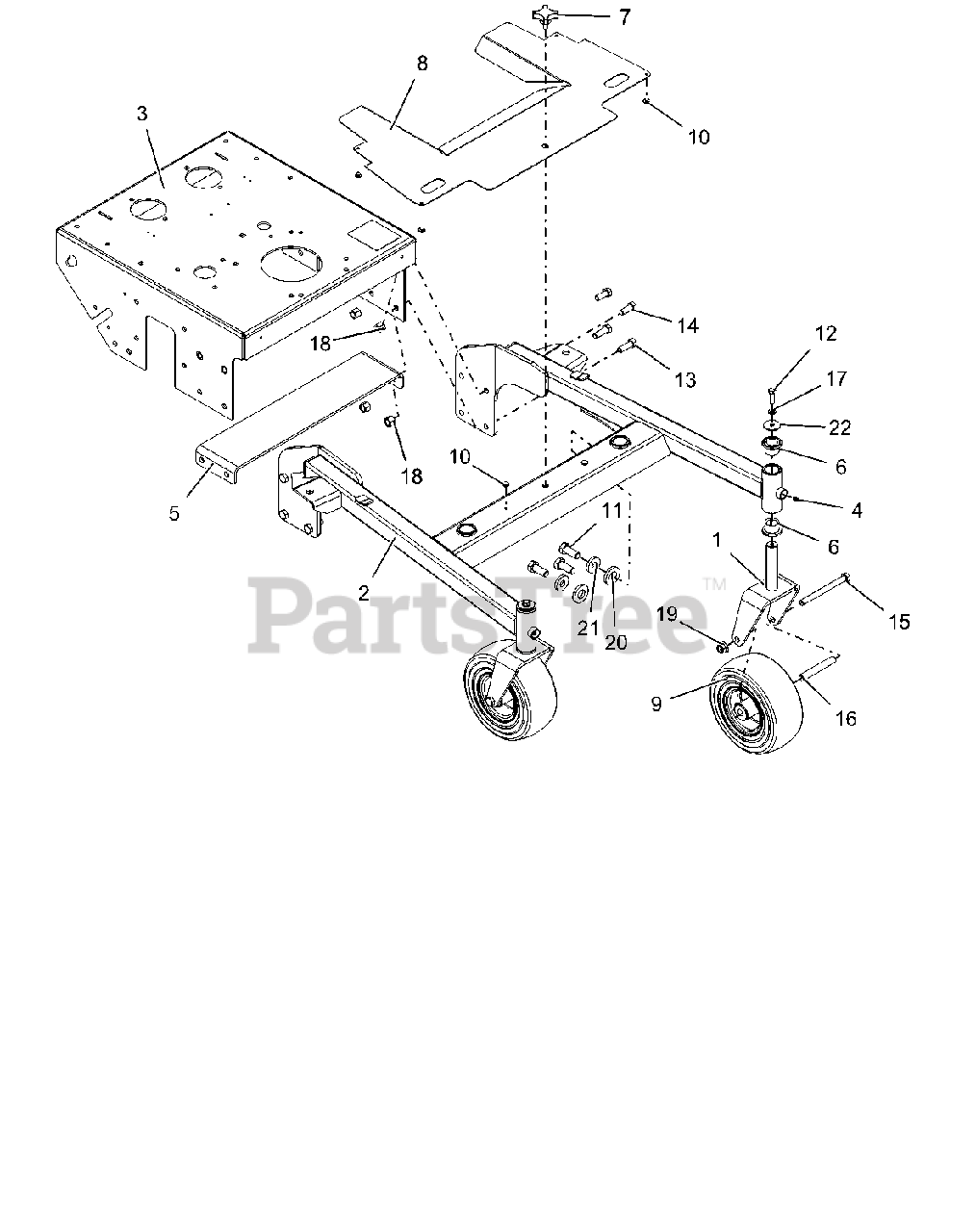

Frame And Casters Parts Diagram

  • Title

1

Gravely 03855153

WLDT, FRONT WHEEL FLWLK GRVLY

$130.99

$

In Stock, only 1 left!

0

2

Gravely 03858953

WLDT, DECK FRAME 48 FLWLK GRV

$824.99

$

Usually ships in 4-12 days

0

3

Gravely 58815401

ASSM, 48-52-61" FRAME W/DECALS

$190.99

$

Usually ships in 4-12 days

0

4

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$4.99

$

In Stock, only 2 left!

0

5

Gravely 03925453

PLATE, CROSS GRAVELY ENG BED

$26.99

$

Usually ships in 4-12 days

0

6

Gravely 04366100

BRG, FLG 1.00 X 1.25 X 1.00

$18.99

$

Usually ships in 4-12 days

0

7

Gravely 04378100

KNOB, 3/8 -16 X .75

$13.99

$

Usually ships in 4-12 days

0

8

Gravely 04660200

SHIELD, BELT 48" HYDRO WALK

$

$

Not available

9

Gravely 07100931

9X3.5-4 CAREFREE BLT TOGETHER

$158.99

$

In Stock, only 3 left!

0

10

Gravely 07503100

BUMPER GROMMET

$4.99

$

In Stock, Qty 14

0

11

Gravely 05901321

BOLT, HEX 5/8-11 1.5" GR8 YWZC
(Superseded to 05901723)

$4.99

$

Usually ships in 4-12 days

0

12

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$5.49

$

In Stock, Qty 11

0

14

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.99

$

In Stock, only 2 left!

0

15

Gravely 05964100

BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$7.99

$

In Stock, Qty 12

0

16

Gravely D13003

TUBE, CASTER AXLE

$22.99

$

Usually ships in 4-12 days

0

17

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$3.49

$

In Stock, Qty 20+

0

19

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 03841023

WASHER, .905X1.750X.250

$

$

Not available

21

Gravely 06400913

WSHR-FL-STL .630X1.50X.25 YWZC
(Superseded to 06401033)

$7.99

$

In Stock, only 3 left!

0

22

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$4.99

$

In Stock, Qty 20+

0
