988181 (48 LP) - Gravely Pro-Hydro 48" Walk-Behind Mower, Propane (SN: 000101 & Above) Idler And Clutch Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Propane

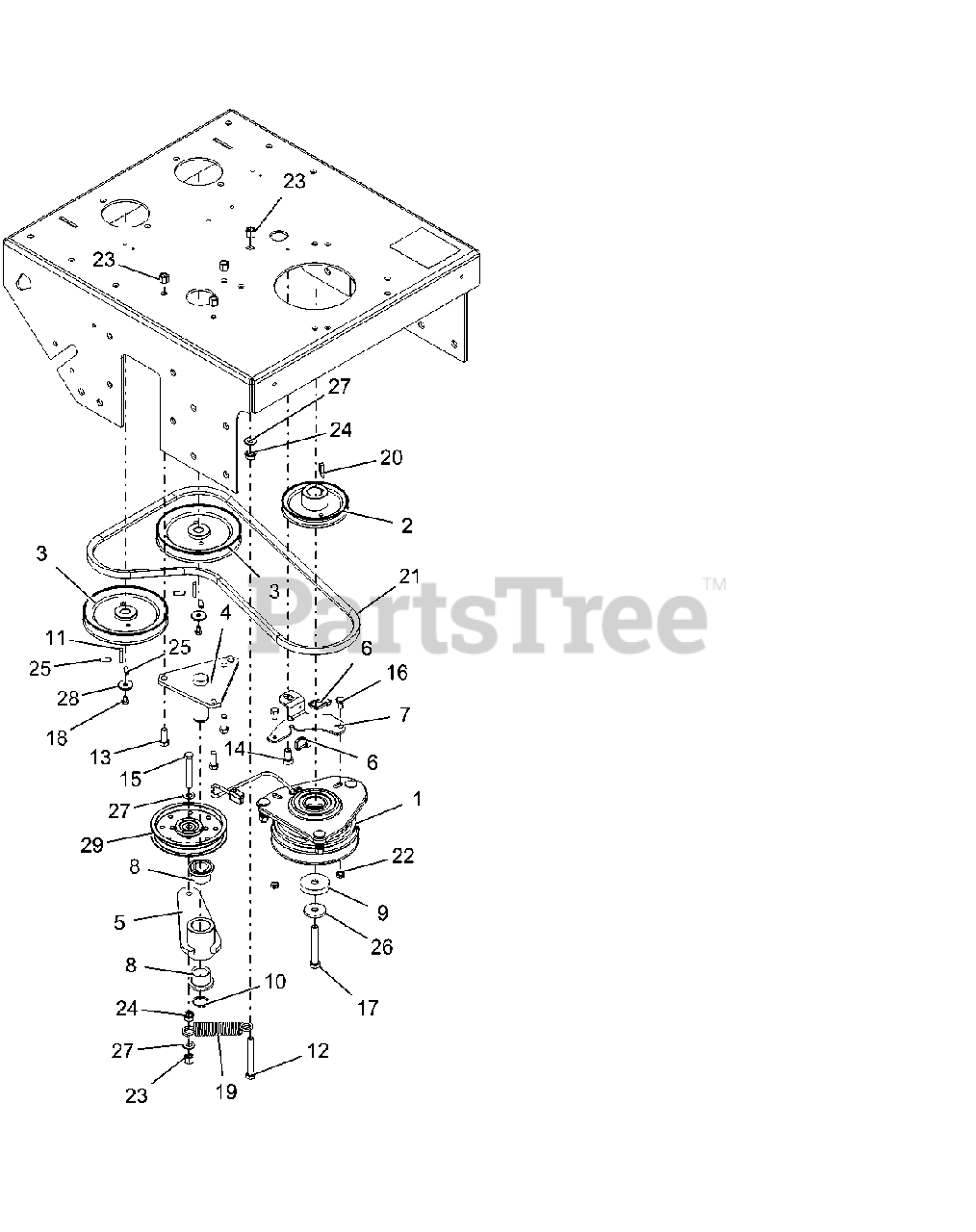

Idler And Clutch Parts Diagram

  • Title

1

Gravely 00200665

CLUTCH ASSY, OGURA# GT1A-HU02

$315.99

$

Usually ships in 4-12 days

0

2

Gravely 07338700

PULLEY, V-BELT WLK TRANS DRIVE

$85.99

$

Usually ships in 4-12 days

0

3

Gravely 07338800

PULLEY, V-BELT PUMP HYD WLK

$111.99

$

Usually ships in 4-12 days

0

4

Gravely 00203918

WLDT, IDLER PIVOT MOUNT
(Superseded to 05180151)

$51.99

$

Usually ships in 4-12 days

0

5

Gravely D15032

WLDT, IDLER ARM

$36.99

$

Usually ships in 4-12 days

0

6

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

7

Gravely 00203840

PLATE, CLUTCH DOG

$29.99

$

Usually ships in 4-12 days

0

8

Gravely 04366100

BRG, FLG 1.00 X 1.25 X 1.00

$18.99

$

Usually ships in 4-12 days

0

9

Gravely 05501222

SPACER, .450X2.00X.396

$12.99

$

Usually ships in 4-12 days

0

10

Gravely 05700160

SNAP RING, 1.00 X .042 EXT

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 00966058

KEY, M5 X M5 X M30 RD

$4.99

$

In Stock, only 1 left!

0

12

Gravely 05985200

BLT-HEX .38-16X3.00 HEX 8 YWZC
(Superseded to 05901816)

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 05900121

BLT-HEX .44-14X.75 GR5 YWZC
(Superseded to 05901920)

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 05947200

BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$2.49

$

In Stock, Qty 5

0

17

Gravely 05901535

BLT-HEX .44-20X3 G8YZ NYTORQ
(Superseded to 05901819)

$6.99

$

In Stock, Qty 7

0

18

Gravely 05900045

BLT-HEX M6 X 1.0X10 YWZC

$

$

Not available

19

Gravely D18071

SPRING, EXT .900X.135X4.50 Y

$15.99

$

Usually ships in 4-12 days

0

20

Gravely D18145

KEY, .250 X .250 X .995 TPR

$7.99

$

Usually ships in 4-12 days

0

21

Gravely D38006

BELT, HA 55.1 EL AMD OHR

$56.99

$

In Stock, only 2 left!

0

22

Gravely 06500011

NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$1.99

$

In Stock, Qty 11

0

23

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.99

$

In Stock, Qty 20+

0

24

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$2.49

$

In Stock, Qty 20+

0

25

Gravely 06000222

SCR,SET .25-20X.75 PCPT SH

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 06400936

WASHER, 7/16" SPRING DISK

$12.99

$

In Stock, only 4 left!

0

27

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

28

Gravely D14160

WASHER, .250 WIDE HEAVY FLAT Y

$4.99

$

Usually ships in 4-12 days

0

29

Gravely GDA10032

PULLEY, FLAT 4.50X.375 W/BRG

$46.99

$

Usually ships in 4-12 days

0
