988181 (48 LP) - Gravely Pro-Hydro 48" Walk-Behind Mower, Propane (SN: 000101 & Above) Tires And Hydraulic Motors Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Propane

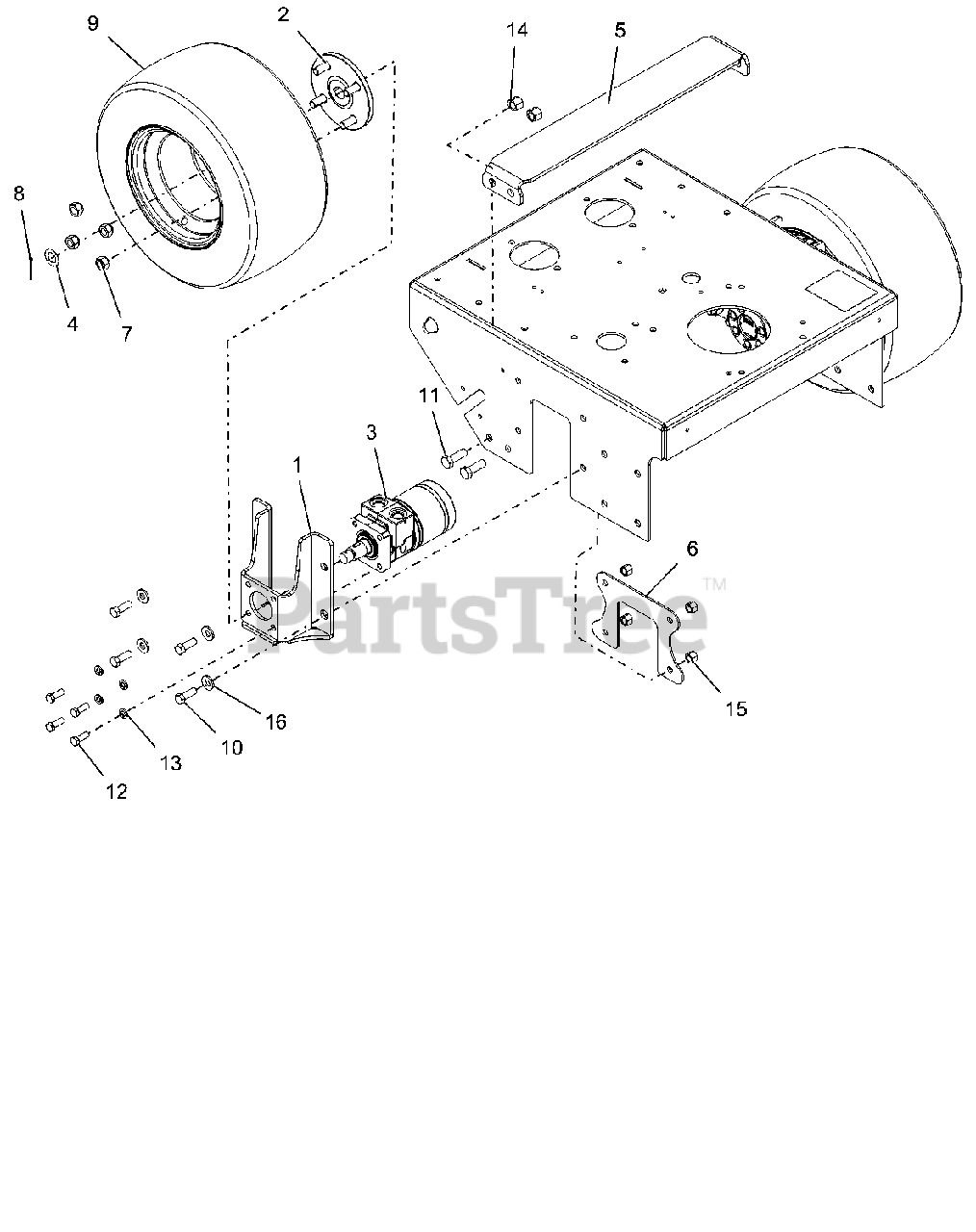

Tires And Hydraulic Motors Parts Diagram

  • Title

1

Gravely 04506953

WLDMT, WHEEL MOTOR BRKT GRAVEL

$83.99

$

Usually ships in 4-12 days

0

2

Gravely 00203842

ASSY, WHEEL HUB

$189.99

$

Usually ships in 4-12 days

0

3

Gravely D18311

MOTOR, HYDRAULIC WHEEL

$857.99

$

Usually ships in 4-12 days

0

4

Gravely 00150052

BUSHING, MACH .750X1.25X.048 Y

$5.49

$

Usually ships in 4-12 days

0

5

Gravely 03932053

PLATE, ENGINE BED REAR 52/48

$27.99

$

Usually ships in 4-12 days

0

6

Gravely 04440353

ENGINE BED DOUBLE PLATE

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 06553000

NUT, 1/2-20 LUG, GRADE 5
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06714300

PIN-CTR .12X1.50 EXTPRSQCT YZ

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 07100906

ASSM, WHL/TIRE 16X7.50-8 K500

$179.99

$

Usually ships in 4-12 days

0

10

Gravely 05963800

BLT-HEX .44-14X1.25 GR5 YWZC

$2.99

$

In Stock, only 1 left!

0

11

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

12

Gravely D14280

BOLT, 3/8-16 X 1 GR8 BLACK

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06527500

NUT-LK-NYL .44-14 YWZC

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 06400914

WSHR-FL-STL .468X1.00X.125 YZ

$

$

Not available
