988182 (52 HE) - Gravely Pro-Hydro 52" Walk-Behind Mower (SN: 000101 & Above) Pulleys And Idlers - 52" Parts Diagram

Pro-Hydro 52" Walk-Behind Mower

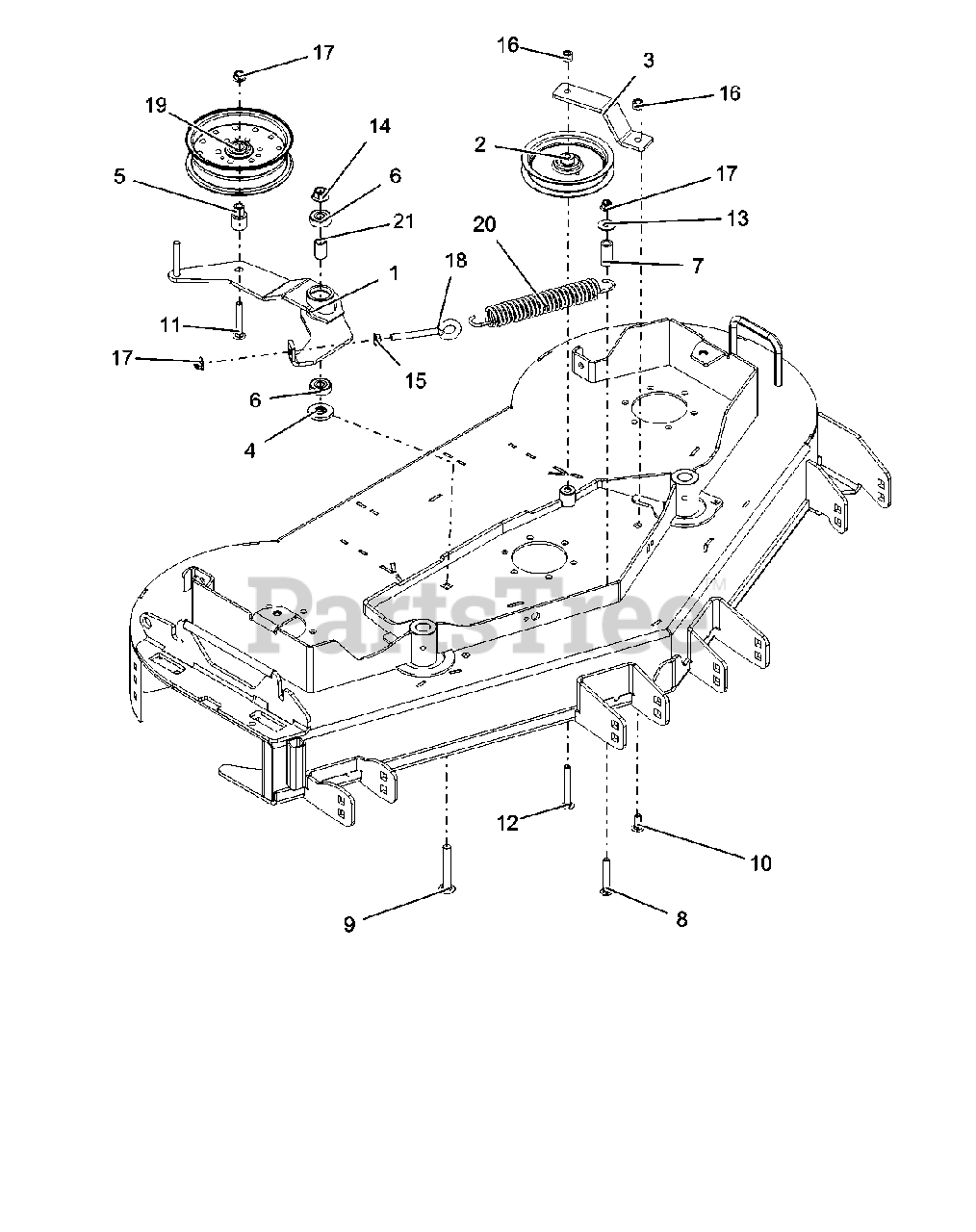

Pulleys And Idlers - 52" Parts Diagram

  • Title

1

Gravely 04877951

WLDMT, IDLER ARM 52 FLWLK (BLACK)

$95.99

$

Usually ships in 4-12 days

0

2

Gravely 07334500

IDLER, FLAT - 5.00" X .75"

$79.99

$

In Stock, only 3 left!

0

3

Gravely 03856451

STRAP, IDLER 48/52 WALK-BLACK

$13.99

$

Usually ships in 4-12 days

0

4

Gravely 04714600

SPACER, IDLER ARM

$4.99

$

In Stock, Qty 20+

0

5

Gravely 04870200

SPCR, IDLER

$38.99

$

Usually ships in 4-12 days

0

6

Gravely 05408000

BRG-BALL .500X1.375X.44

$5.99

$

In Stock, Qty 20+

0

7

Gravely 05516400

BSHG-SLV .500X.750X1.560

$5.99

$

In Stock, Qty 10

0

8

Gravely 06200213

BLT-RHDSSQNK .38-16X2.50 G5YZ
(Superseded to 06200315)

$3.49

$

In Stock, only 2 left!

0

9

Gravely 06200216

BLT-RDHDSQSHNK .50-13X3.25 YWZC
(Superseded to 06200339)

$3.99

$

In Stock, only 3 left!

0

10

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06224400

BLT-RDHDSQNK .38-16X2.50 G5 Y
(Superseded to 06200234)

$3.99

$

In Stock, only 2 left!

0

12

Gravely 06228100

BLT-RDHDSQNK .38-16X3.00 G5 YWZC
(Superseded to 06200418)

$3.99

$

In Stock, Qty 11

0

13

Gravely 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.49

$

In Stock, Qty 5

0

14

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0

16

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

17

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 07001701

BOLT, EYE .38-16X4.50 .75 DIA

$12.99

$

Usually ships in 4-12 days

0

19

Gravely 07300535

PULLEY, FLAT IDLER 6.00 X .635

$63.99

$

Usually ships in 4-12 days

0

20

Gravely 08300627

SPRG, EXTENSION

$21.99

$

In Stock, only 1 left!

0

21

Gravely 09357700

SPACER, .510 X .750 X 1.148

$3.99

$

In Stock, Qty 7

0
