988182 (52 HE) - Gravely Pro-Hydro 52" Walk-Behind Mower (SN: 000101 & Above) Tires, Wheel Motors - 48", 52" And 61" Parts Diagram

Pro-Hydro 52" Walk-Behind Mower

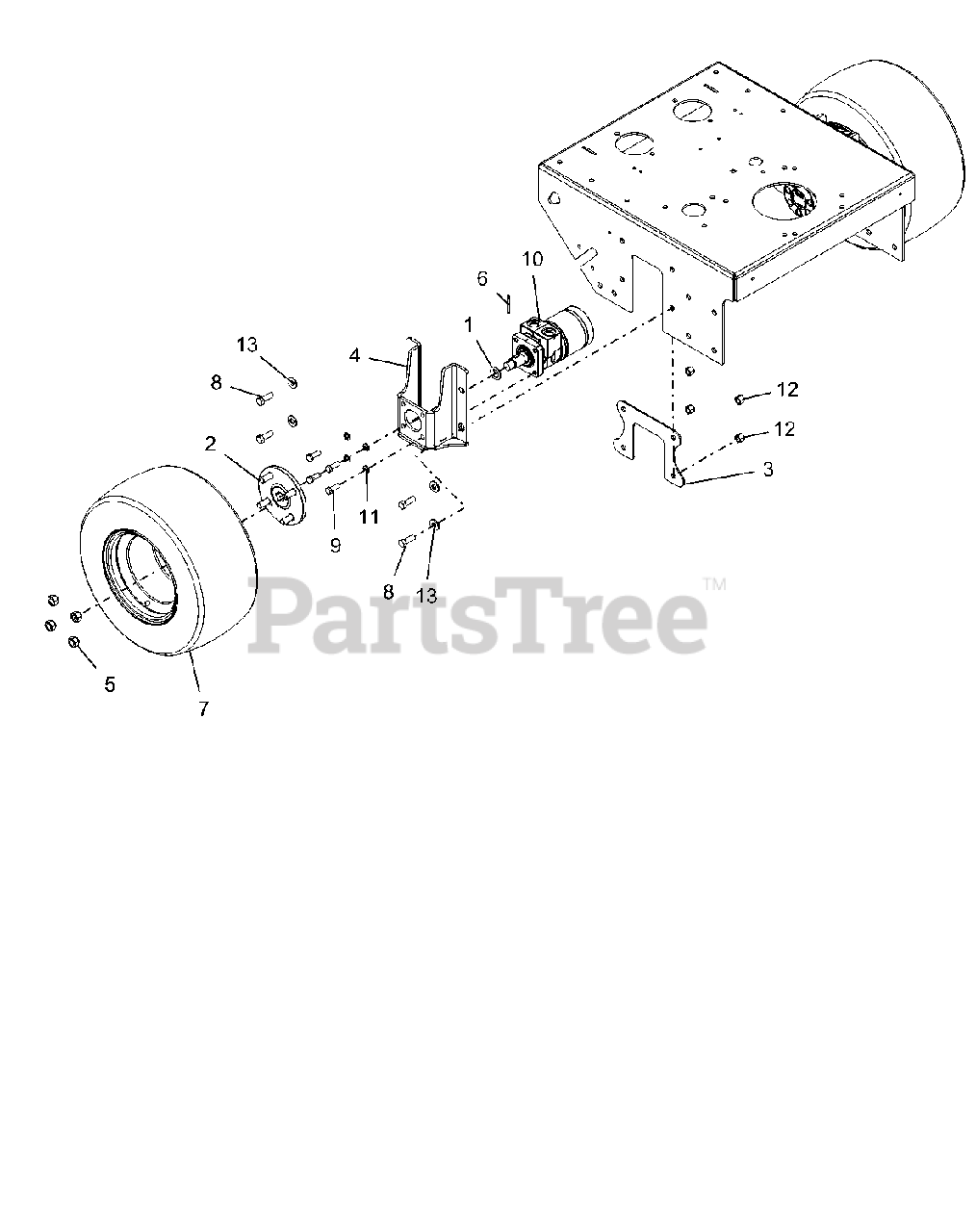

Tires, Wheel Motors - 48", 52" And 61" Parts Diagram

  • Title

1

150052

BUSHING, MACH .75 X 1.25 X .048

$

$

Not available

2

203842

ASSY, WHEEL HUB

$

$

Not available

3

Gravely 04440353

PLATE, ENGINE BED DOUBLE-RED

$17.99

$

Usually ships in 4-12 days

0

4

Gravely 04506953

WLDMT, WHEEL MOTOR BRACKET-RED

$83.99

$

Usually ships in 4-12 days

0

5

Gravely 06553000

NUT, 1/2-20 LUG C
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06714300

PIN, COTTER

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 07100906

ASSM, WHL/TIRE 16X7.50-8 K500

$179.99

$

Usually ships in 4-12 days

0

8

Gravely 05963800

BLT-HEX .44-14X1.25 GR5 YWZC

$2.99

$

Usually ships in 4-12 days

0

9

Gravely D14280

BOLT, 3/8-16 X 1 GR8 BLACK

$2.99

$

Usually ships in 4-12 days

0

10

Gravely D18311

MOTOR, HYDRAULIC WHEEL

$857.99

$

Usually ships in 4-12 days

0

11

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

12

Gravely 06527500

NUT-LK-NYL .44-14 YWZC

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 06400914

WSHR-FL-STL .468X1.00X.125 YWZC

$3.99

$

Usually ships in 4-12 days

0
