988183 (61 HE) - Gravely Pro-Hydro 61" Walk-Behind Mower (SN: 000101 & Above) Chute, Belt Covers - 61" Parts Diagram

Pro-Hydro 61" Walk-Behind Mower

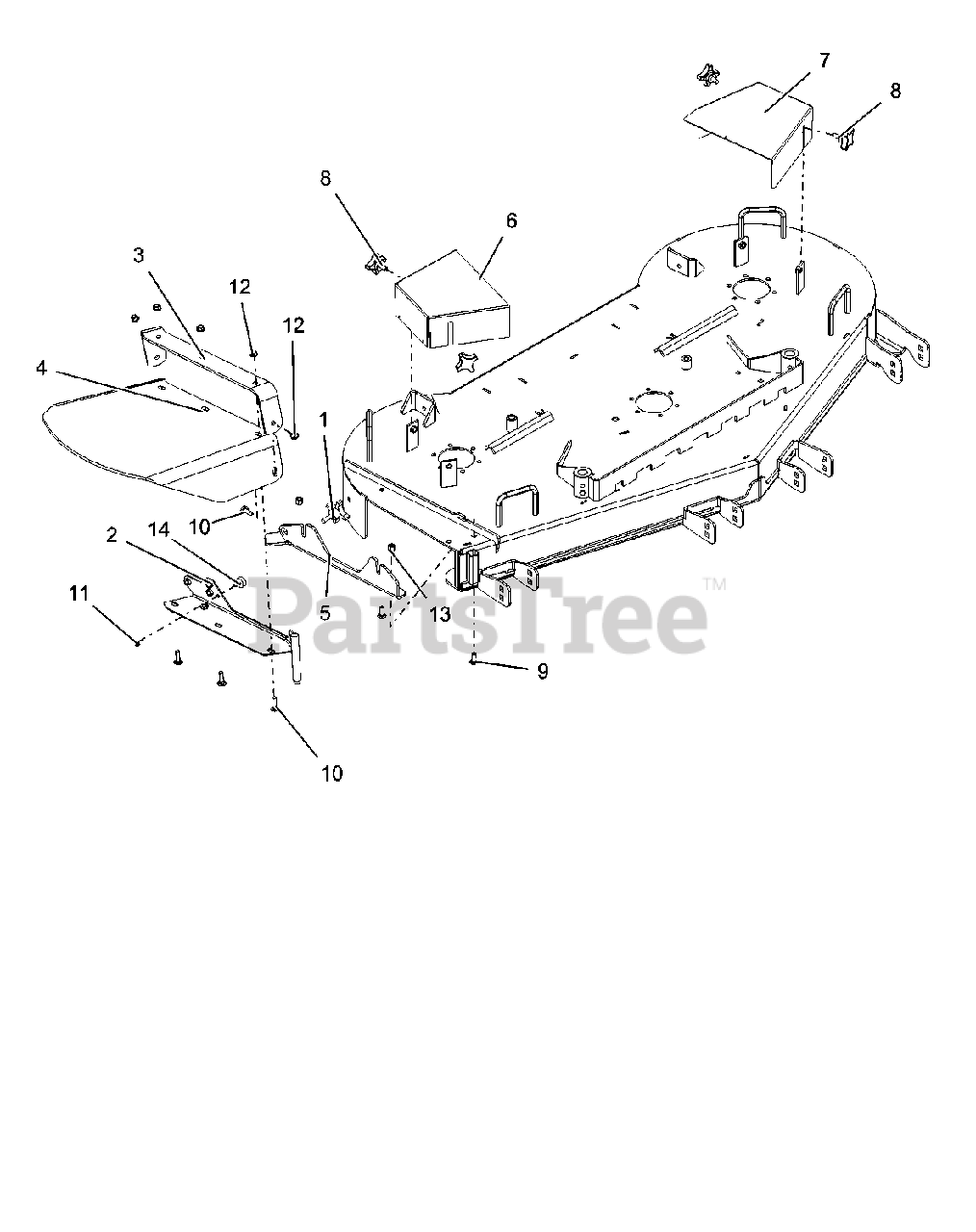

Chute, Belt Covers - 61" Parts Diagram

  • Title

1

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

In Stock, only 4 left!

0

2

Gravely 03981953

WLDT. DISCHARGE

$90.99

$

Usually ships in 4-12 days

0

3

Gravely 03983853

STRAP, GRAVELY WLK RUBBER DIS

$63.99

$

Usually ships in 4-12 days

0

4

Gravely 04044200

SHIELD, WALK RUBBER DISCHARGE

$70.99

$

Usually ships in 4-12 days

0

5

Gravely 04366953

RUBBER DISCHARGE BRKT

$51.99

$

Usually ships in 4-12 days

0

6

Gravely 04367053

PULLEY SHIELD

$52.99

$

Usually ships in 4-12 days

0

7

Gravely 04374653

PULLEY SHIELD LH

$

$

Not available

8

Gravely 04378100

KNOB, 3/8 -16 X .75

$13.99

$

Usually ships in 4-12 days

0

9

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

14

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, only 4 left!

0
