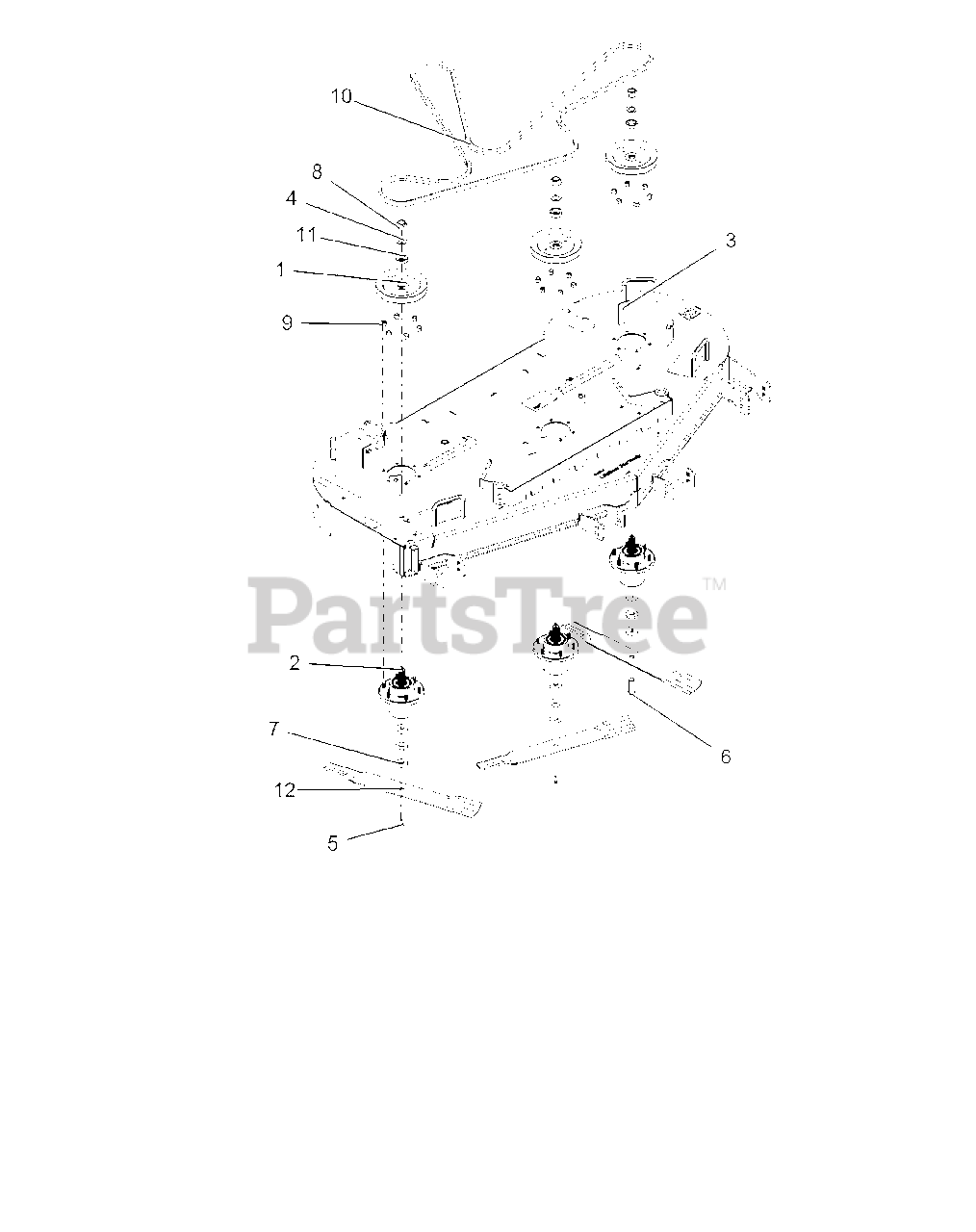

988183 (61 HE) - Gravely Pro-Hydro 61" Walk-Behind Mower (SN: 000101 & Above) Deck, Belt, Blades And Spindles - 61" Parts Diagram

Pro-Hydro 61" Walk-Behind Mower

Deck, Belt, Blades And Spindles - 61" Parts Diagram

  • Title

1

Gravely 03399709

PULLEY, SPINDLE 6.34 OD

$65.99

$

Usually ships in 4-12 days

0

2

200260

ASSY, SPINDLE HOUSING

$

$

Not available

3

Gravely 50490000

DECK, WITH DECALS 61"

$903.99

$

Usually ships in 4-12 days

0

4

Gravely 03399703

WASHER, .75X1.3125X.120

$3.99

$

In Stock, Qty 11

0

5

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

6

Gravely 05968100

BLT-HEX .62-11X2.00 GR5 YWZC

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 06400913

WSHR-FL-STL .630X1.50X.25 YWZC
(Superseded to 06401033)

$6.99

$

In Stock, only 4 left!

0

8

Gravely 06500709

LOCKNUT, 3/4-16 CROWN GR5 Y
(Superseded to 06500836)

$6.99

$

In Stock, only 2 left!

0

9

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

10

Gravely 07200614

BELT, 61" FLWLK

$102.99

$

Usually ships in 4-12 days

0

11

Gravely D13024

SPACER, 1.500X1.000X.510 Y

$10.99

$

In Stock, only 2 left!

0

12

Gravely GDU10232

BLADE, 21.000 X .80 LIFT

$28.99

$

In Stock, only 3 left!

0
