988184 - Gravely Pro-Walk 36" Walk-Behind Mower, Kawasaki FS (SN: 000101 - 000399) Deck Lift and Height of Cut- 36" Parts Diagram

Pro-Walk 36" Walk-Behind Mower, Kawasaki FS

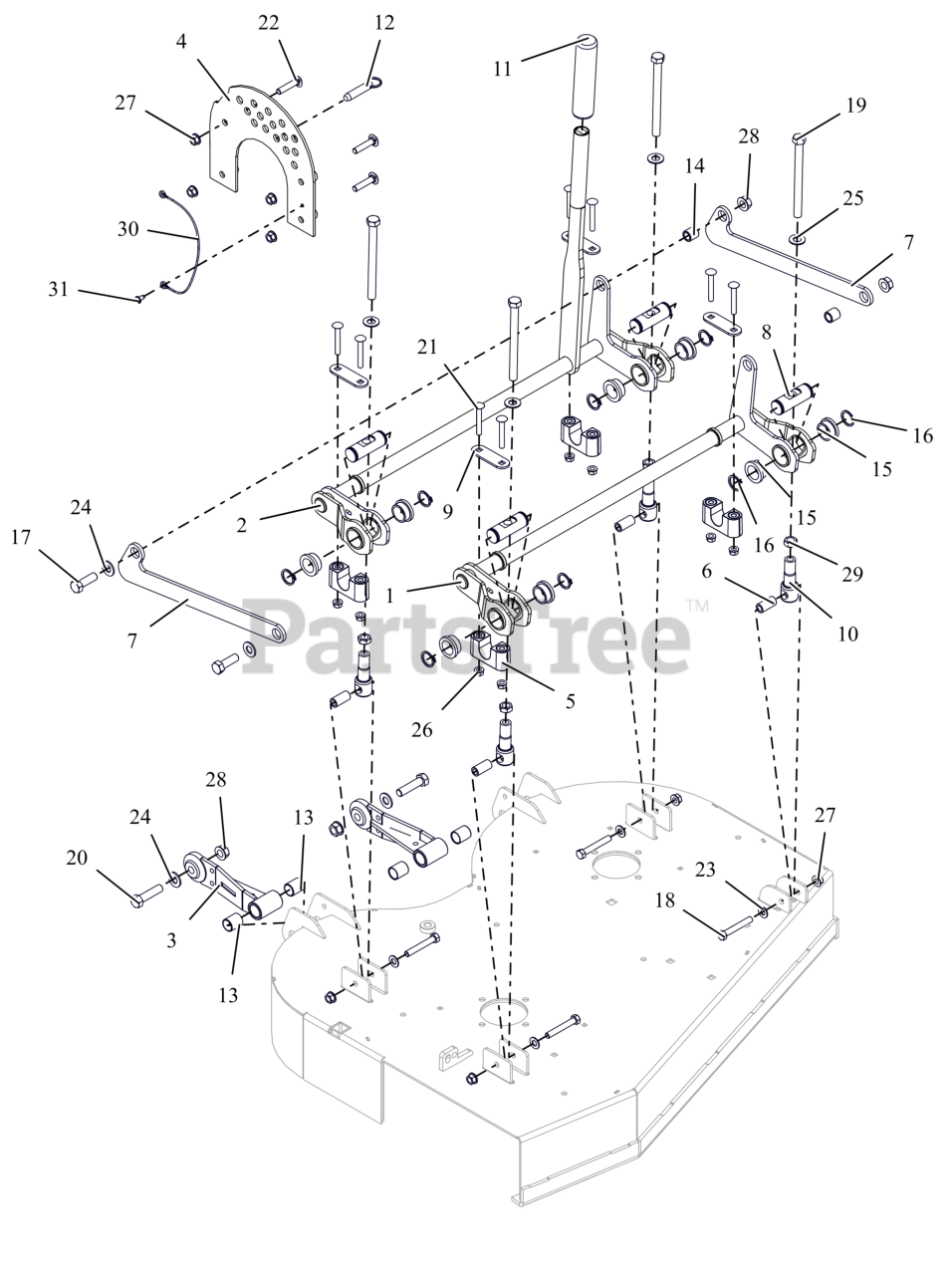

Deck Lift and Height of Cut- 36" Parts Diagram

  • Title

1

Gravely 04968951

WLDMT, DECK LIFT

$258.99

$

Usually ships in 4-12 days

0

2

Gravely 04969051

WLDMT, DECK LIFT

$109.99

$

Usually ships in 4-12 days

0

3

Gravely 04969551

WLDMT, PUSHER LINK BAR

$93.99

$

Usually ships in 4-12 days

0

4

Gravely 04997853

WLDMT, DECK INDEXING (RED)

$205.99

$

Usually ships in 4-12 days

0

5

Gravely 07500414

ASM-BUSHING, DECK LIFT

$21.99

$

In Stock, only 1 left!

0

6

Gravely 04895200

SPACER, DECK LEVELING

$2.49

$

In Stock, Qty 5

0

7

Gravely 04969151

LINK, DECK LIFT

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 04984500

PIN, DECK LIFT

$37.99

$

In Stock, only 2 left!

0

9

Gravely 04766551

PLATE, BEARING SUPPORT

$7.99

$

In Stock, only 2 left!

0

10

Gravely 05081400

LINK, DECK LIFT FORMED

$11.99

$

In Stock, Qty 5

0

11

Gravely 05082200

GRIP, DECK LIFT

$10.99

$

Usually ships in 4-12 days

0

12

Gravely 05117300

PIN, .500 x 2.000 USABLE LG BALL

$

$

Currently unavailable

13

Gravely 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, Qty 12

0

14

Gravely 05501104

BSHG, SLV .510 X .751 X .750

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 05501307

BSHG,FLG 1.0 X 1.25 X 1.5 X .6

$11.99

$

In Stock, Qty 16

0

16

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, only 2 left!

0

17

Gravely 05901631

BLT,HEX .50-13X1.50 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

18

Gravely 05901812

BLT, HEX .38-16X2.50 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

19

Gravely 05901924

BLT, HEX .50-13X6.00S G5 ZCC

$6.99

$

Usually ships in 4-12 days

0

20

Gravely 05901940

BLT, HEX .50-13X2.00 G8 ZCC

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 06200311

BLT, RHSSN.31-18X2.25 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

22

Gravely 06200329

BTL,RHSSN .375-16 X 1.75 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06401116

WSHR, FLT .557X1.040X.102 ZCC

$1.49

$

In Stock, Qty 6

0

26

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$0.99

$

In Stock, only 4 left!

0

27

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$2.99

$

In Stock, Qty 20+

0

29

Gravely 06500911

NUT-JAM .500-13 G2 ZCC

$1.49

$

In Stock, Qty 14

0

30

Gravely 06900317

CABLE, 12.0 LANYARD, NYLON

$3.49

$

In Stock, only 2 left!

0

31

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
