988184 - Gravely Pro-Walk 36" Walk-Behind Mower, Kawasaki FS (SN: 000600 & Above) Pulleys and Idlers - 36" Parts Diagram

Pro-Walk 36" Walk-Behind Mower, Kawasaki FS

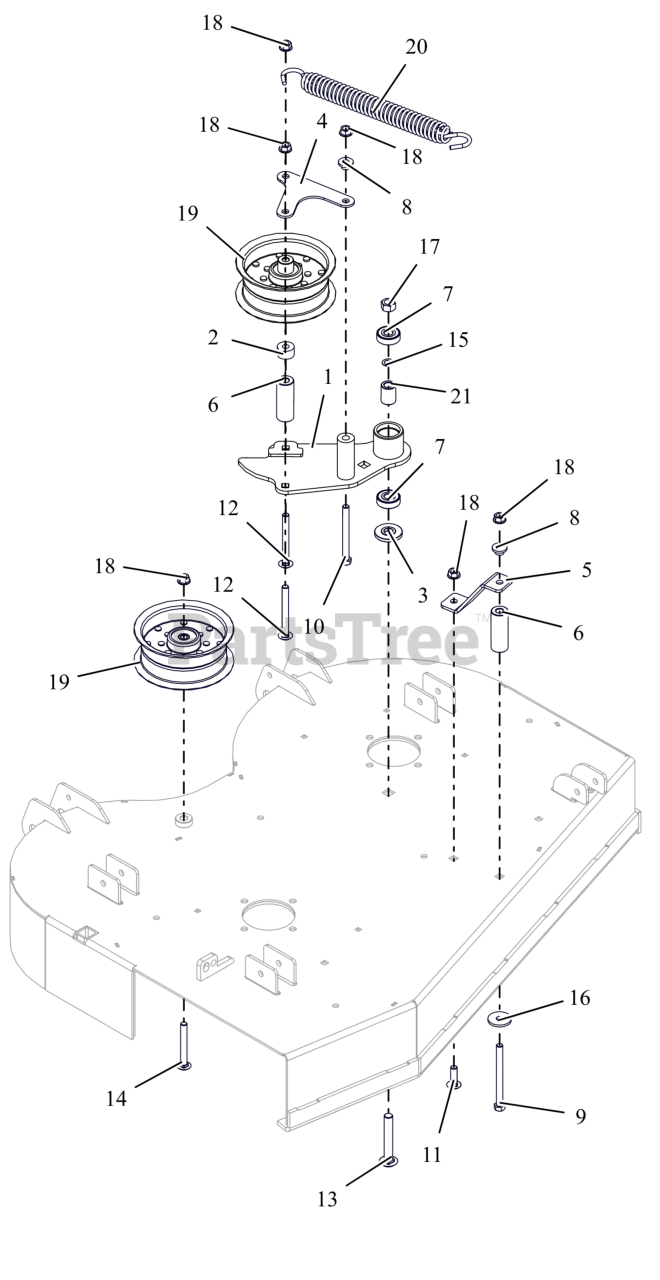

Pulleys and Idlers - 36" Parts Diagram

  • Title

1

Gravely 04998000

WLDMT, IDLER ARM

$

$

Currently unavailable

2

Gravely 03035100

SPACER .390X1.000X.562

$9.49

$

In Stock, only 3 left!

0

3

Gravely 04714600

SPACER, IDLER ARM

$4.99

$

In Stock, Qty 20+

0

4

Gravely 05102851

BRKT, SUPPORT (BLACK)

$20.99

$

Usually ships in 4-12 days

0

5

Gravely 05102951

BRKT, SPRG ANCHOR (BLACK)

$32.99

$

Usually ships in 4-12 days

0

6

Gravely 05103051

SPCR, TUBE (BLACK)

$54.99

$

Usually ships in 4-12 days

0

7

Gravely 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

8

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 05902024

BLT, HEX 0.375-16X4.25 GR5 ZCC

$4.49

$

Usually ships in 4-12 days

0

10

Gravely 05902025

BLT, HEX 0.375-16X3.75 GR5 ZCC

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 06200236

BLT,RHSSN .38-16X1.25 G5 ZCC

$2.49

$

In Stock, Qty 10

0

12

Gravely 06200238

BLT,RHSSN .38-16X3.50 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

13

Gravely 06200339

BTL,RHSSN .500-13 X 3.25 G5 ZCC

$3.99

$

In Stock, only 3 left!

0

14

Gravely 06200434

BTL,RHSSN .375-16 X 3 G5 ZCC

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 06400015

WASHER, .500X.750X.020 THRUST

$2.49

$

In Stock, Qty 20+

0

16

Gravely 06401121

WSHR,FLT .406X1.375X.135 ZCC

$5.99

$

In Stock, Qty 5

0

17

Gravely 06500827

NUT,LK-CTR .50-13 GA ZCC

$3.99

$

In Stock, only 2 left!

0

18

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07300532

PULLEY, FLAT 5.00X2.36X.375

$68.99

$

Usually ships in 4-12 days

0

20

Gravely 08300708

SPRING, EXTENSION

$18.99

$

In Stock, only 2 left!

0

21

Gravely 09357700

SPACER .510 X .867 X 1.1485

$3.99

$

In Stock, Qty 6

0
