988185 - Gravely Pro-Walk 48" Walk-Behind Mower, Kawasaki FS (SN: 000101 - 000399) Engine - Kawasaki FS600V Parts Diagram

Pro-Walk 48" Walk-Behind Mower, Kawasaki FS

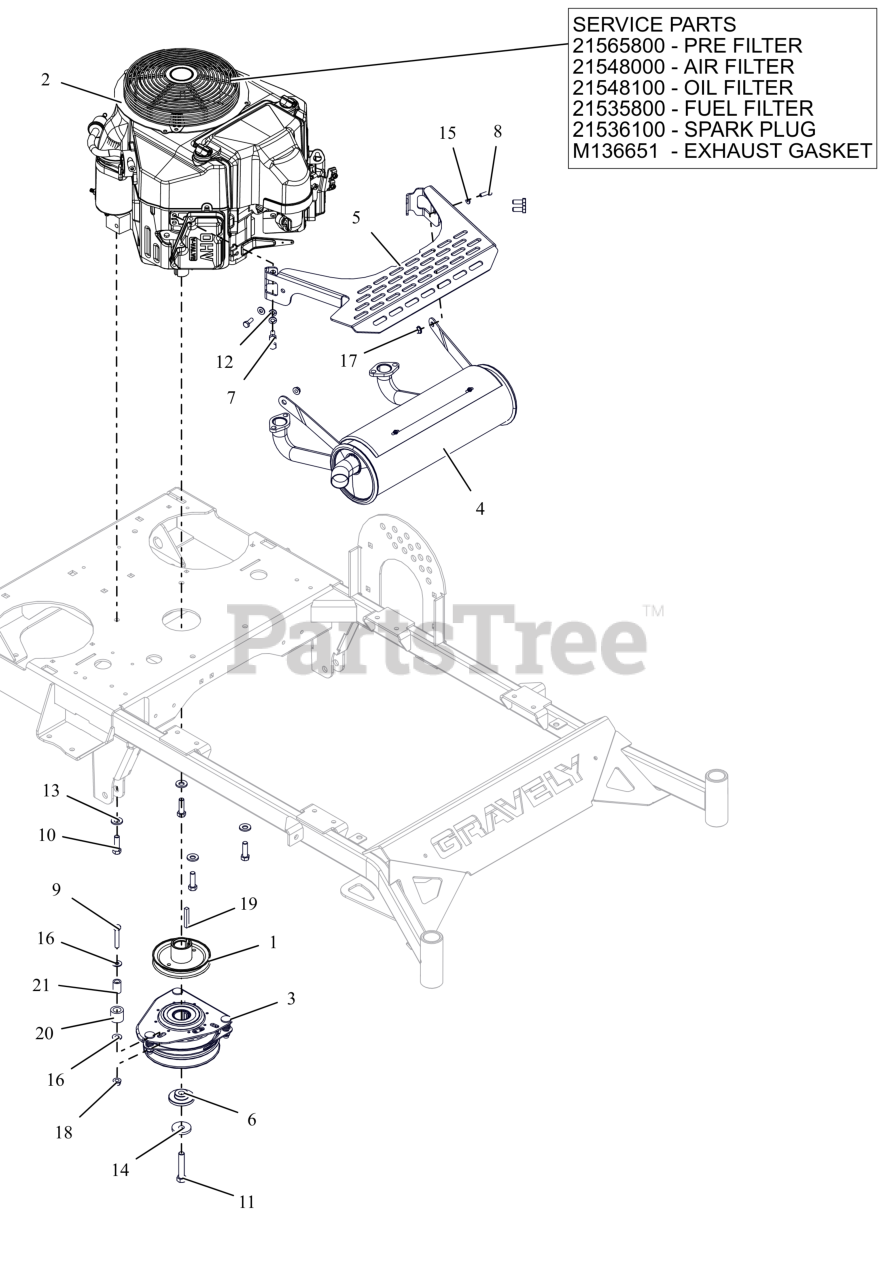

Engine - Kawasaki FS600V Parts Diagram

  • Title

1

Gravely 07346167

SHEAVE, ENGINE 4.50 x 1.004 ID (BLACK)

$104.99

$

Usually ships in 4-12 days

0

2

Gravely 08200921

ENG. KAW FS600

$

$

Not available

2

Gravely 21565800

PRE FILTER, KAWASAKI FS

Note: Component Service Part

$9.99

$

Usually ships in 4-12 days

0

2

Gravely 21548000

AIR FILTER, KAWASAKI FR

Note: Component Service Part

$17.99

$

In Stock, Qty 20+

0

2

Gravely 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: Component Service Part

$18.99

$

In Stock, Qty 20+

0

2

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: Component Service Part

$18.99

$

In Stock, Qty 20+

0

2

Gravely 21536100

PLUG, SPARK

Note: Component Service Part

$3.99

$

In Stock, Qty 20+

0

2

Gravely M136651

GASKET, MUFFLER #
(Superseded to 00191627)

Note: Component Service Part

$8.49

$

In Stock, Qty 20+

0

3

Gravely 03789900

CLUTCH, OGURA GT1A-AR03

$370.99

$

In Stock, only 2 left!

0

4

Gravely 04375200

MUFFLER, KAW FS PROWALK

$288.99

$

In Stock, only 1 left!

0

5

Gravely 04676751

SHIELD, MUFFLER
(Superseded to 09658251)

$67.99

$

Usually ships in 4-12 days

0

6

Gravely 05501206

BSHG-FLG .469X1.06X.574X2.0

$19.99

$

In Stock, only 4 left!

0

7

Gravely 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

9

Gravely 05901804

BLT, HEX .31-18X1.75 G5 ZCC

$3.49

$

In Stock, Qty 5

0

10

Gravely 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 05902031

BLT, HEX 0.4375-20X2.25 G8 ZCC NT

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 2 left!

0

15

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, only 3 left!

0

16

Gravely 06401124

WSHR, FLT .312X.734X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

18

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06601800

KEY-STR .25X1.75X.25

$3.99

$

In Stock, only 1 left!

0

20

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$6.49

$

In Stock, Qty 9

0

21

Gravely 08833400

BUSH.,S.391X.622X.950 ST

$6.49

$

In Stock, only 4 left!

0
