988185 - Gravely Pro-Walk 48" Walk-Behind Mower, Kawasaki FS (SN: 000101 - 000399) Fuel System Parts Diagram

Pro-Walk 48" Walk-Behind Mower, Kawasaki FS

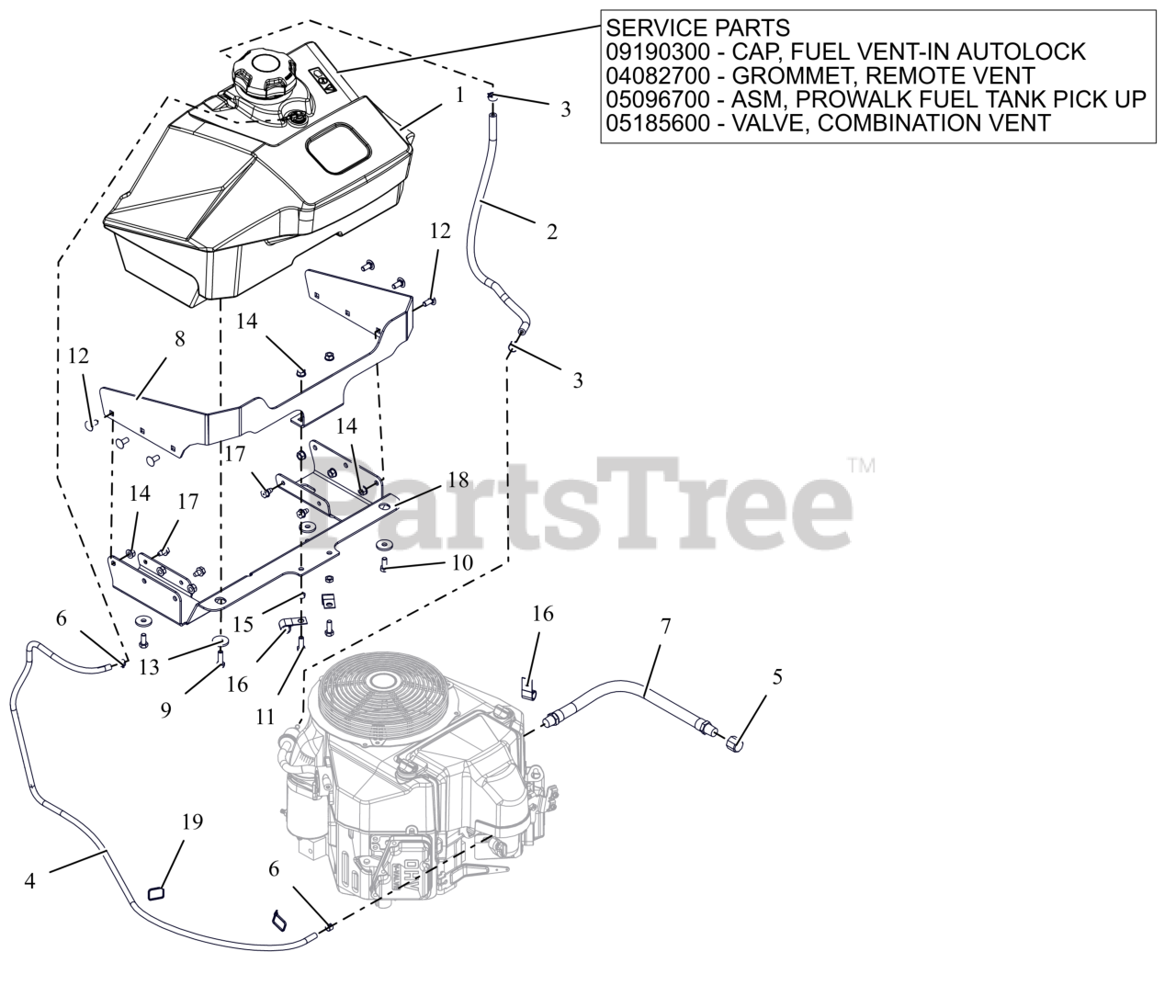

Fuel System Parts Diagram

  • Title

1

Gravely 05070600

TANK, PRO-WALK

$

$

Not available

1

Gravely 09190300

CAP, FUEL - 3.50 RATCHET INLET VENT

Note: Component Service Part

$35.99

$

In Stock, only 2 left!

0

1

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

Note: Component Service Part

$3.99

$

In Stock, Qty 12

0

1

Gravely 05096700

ASM, PROWALK FUEL TANK PICK UP

Note: Component Service Part

$29.99

$

Usually ships in 4-12 days

0

1

Gravely 05185600

VALVE, COMBINATION VENT 3/16

Note: Component Service Part

$18.99

$

In Stock, Qty 5

0

2

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

Usually ships in 4-12 days

0

4

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$1.49

$

In Stock, only 4 left!

0

5

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$14.99

$

Usually ships in 4-12 days

0

6

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.99

$

In Stock, only 3 left!

0

7

Gravely 04271700

DRAIN, M20 OIL

$35.99

$

Usually ships in 4-12 days

0

8

Gravely 05007253

BRKT, FUEL TANK MTG (RED)

$121.99

$

Usually ships in 4-12 days

0

9

Gravely 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, only 4 left!

0

10

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

11

Gravely 05901801

BLT, HEX .31-18X.875 G5 ZCC

$2.99

$

In Stock, Qty 6

0

12

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.99

$

In Stock, Qty 5

0

13

Gravely 06401104

WSHR, FLT .340X1.125X.135 ZCC

$4.99

$

In Stock, only 3 left!

0

14

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06500909

NUT-JAM .312-18 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

18

Gravely 09175151

BRKT, FUEL TANK MTG (BLACK)

$71.99

$

Usually ships in 4-12 days

0

19

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0
