988185 - Gravely Pro-Walk 48" Walk-Behind Mower, Kawasaki FS (SN: 000101 - 000399) Lower Steering Controls - 48", 52", 60" Parts Diagram

Pro-Walk 48" Walk-Behind Mower, Kawasaki FS

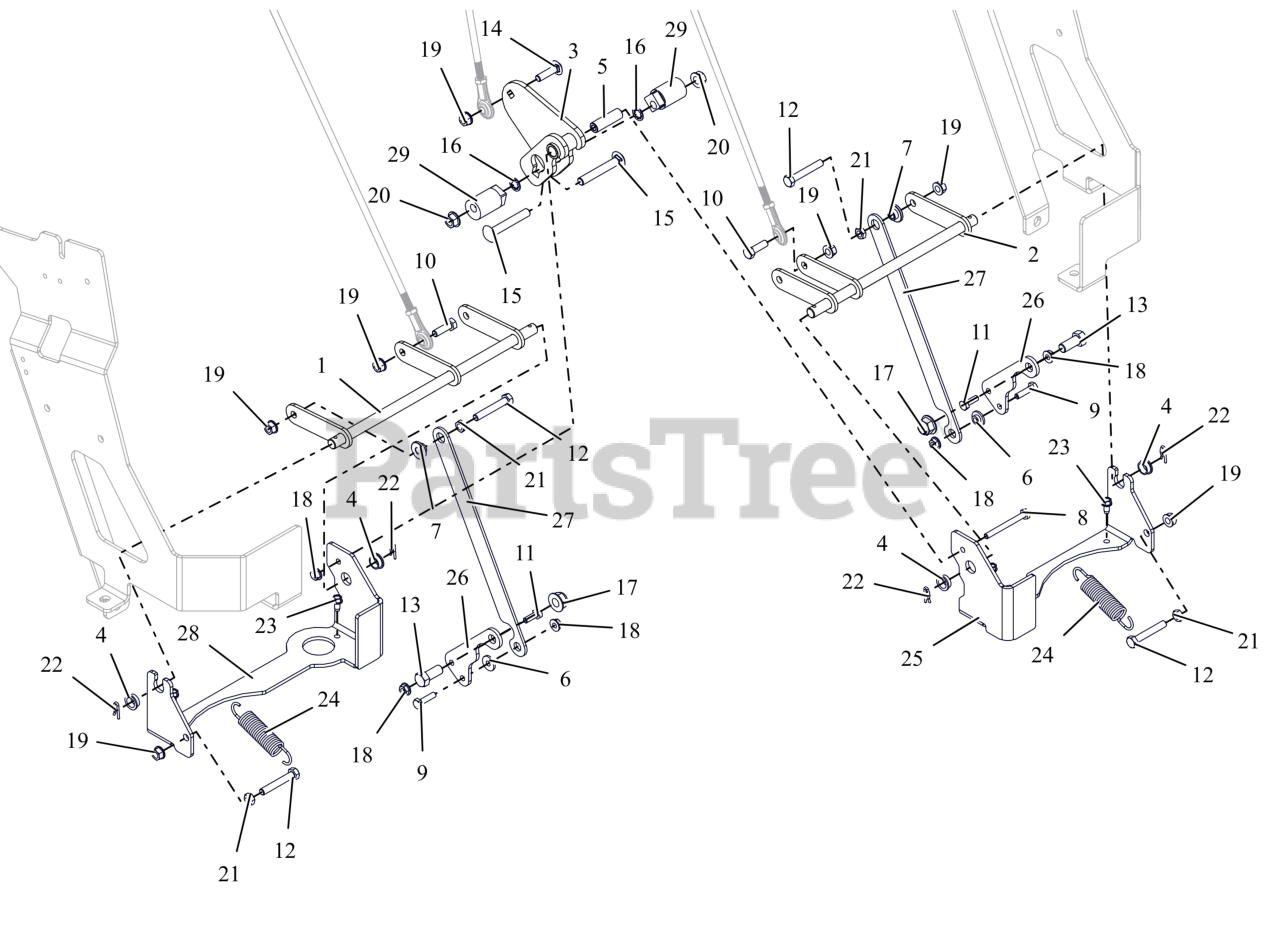

Lower Steering Controls - 48", 52", 60" Parts Diagram

  • Title

1

Gravely 09172251

WLDMT, RH LOWER STEERING SHAFT (BLACK)

$45.99

$

Usually ships in 4-12 days

0

2

Gravely 09173951

WLDMT, LH LOWER STEERING SHAFT (BLACK)

$64.99

$

Usually ships in 4-12 days

0

3

Gravely 09178200

WLDMT, SPEED STOP

$23.99

$

Usually ships in 0 days

0

4

Gravely 05501119

BSHG,FLANGE .500X.625X.270X.75

$3.99

$

In Stock, only 2 left!

0

5

Gravely 05501130

BSHG, SLV .265X.505X1.665

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, only 4 left!

0

7

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, Qty 20+

0

8

Gravely 05900034

BLT, HEX 0.25-20X2.5 GR8 ZCC

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 05901639

BLT,HEX .25-20X1.00 G5 ZCC

$1.99

$

In Stock, Qty 8

0

10

Gravely 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, only 4 left!

0

11

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

12

Gravely 05901805

BLT, HEX .31-18X2.00 G5 ZCC

$1.99

$

In Stock, Qty 13

0

13

Gravely 05901913

BLT, HEX 0.4375-14X1 GR5 ZCC

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 06200310

BTL,RHSSN .313-18 X 1.25 G5 ZCC

$1.99

$

In Stock, only 3 left!

0

15

Gravely 06200315

BLT, RHSSN.38-16X2.50 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

16

Gravely 06319000

WSHR-LK .38 INT STAR YWZC

$

$

Not available

17

Gravely 06500811

NUT,NYL-FLG .44-14 GF ZCC

$6.49

$

In Stock, only 1 left!

0

18

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

19

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06500909

NUT-JAM .312-18 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 6

0

23

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

24

Gravely 08311700

SG-TENS .105X.812X3.88 WLD 15

$9.49

$

In Stock, Qty 6

0

25

Gravely 09172351

BRKT, LOWER STEERING - LH

$52.99

$

Usually ships in 4-12 days

0

26

Gravely 09172851

PLATE, TRANSAXLE ADAPTER (BLACK)

$

$

Currently unavailable

27

Gravely 09172900

LINK, STEERING (BLACK)

$

$

Currently unavailable

28

Gravely 09173151

BRKT, LOWER STEERING - RH

$35.99

$

Usually ships in 4-12 days

0

29

Gravely 09173600

ECCENTRIC - .390X1.000X1.750

$

$

Currently unavailable
