988185 - Gravely Pro-Walk 48" Walk-Behind Mower, Kawasaki FS (SN: 000600 & Above) Transaxles and Guards - 48", 52", and 60" Parts Diagram

Pro-Walk 48" Walk-Behind Mower, Kawasaki FS

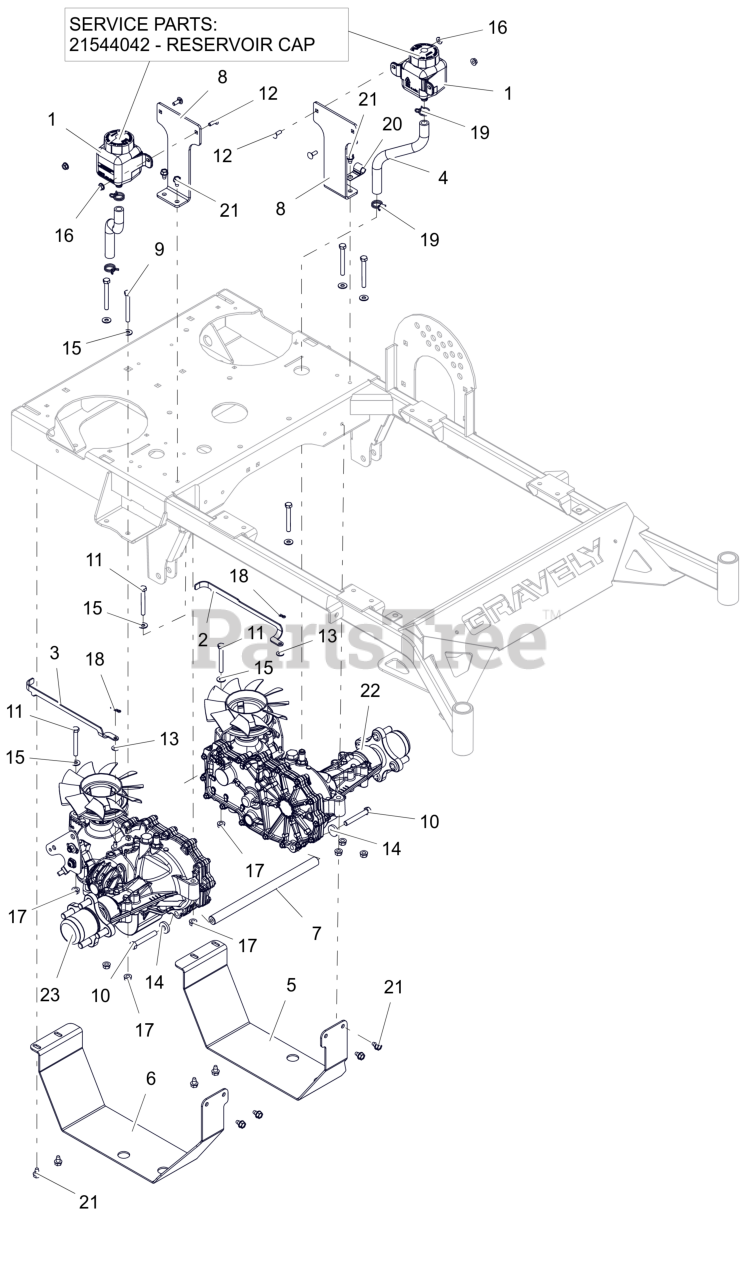

Transaxles and Guards - 48", 52", and 60" Parts Diagram

  • Title

1

Gravely 02970200

TANK, EXPANSION

$38.99

$

In Stock, Qty 10

0

1

Gravely 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: Service Part Component

$24.99

$

Usually ships in 4-12 days

0

2

Gravely 04992951

BRKT, LH DUMP VALVE (BLACK)

$29.99

$

Usually ships in 4-12 days

0

3

Gravely 04993051

BRKT, RH DUMP VALVE (BLACK)

$26.99

$

Usually ships in 4-12 days

0

4

Gravely 04995500

HOSE, PRO WALK OVERFLOW

$

$

Currently unavailable

5

Gravely 05015851

PLATE, LH SKID (BLACK)

$

$

Currently unavailable

6

Gravely 05015951

PLATE, RH SKID (BLACK)

$104.99

$

Usually ships in 4-12 days

0

7

Gravely 05016200

SHAFT, CROSS BRACE

$130.99

$

Usually ships in 4-12 days

0

8

Gravely 05068853

BRKT, EXPANSION TANK MTG (RED)

$

$

Currently unavailable

9

Gravely 05901807

BLT, HEX .31-18X2.75 G5 ZCC

$2.99

$

In Stock, only 2 left!

0

10

Gravely 05901812

BLT, HEX .38-16X2.50 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

11

Gravely 05901912

BLT, HEX 0.3125-18X2.5 GR5 ZCC

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$1.49

$

Usually ships in 4-12 days

0

13

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, only 3 left!

0

14

Gravely 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06401124

WSHR, FLT .312X.734X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

17

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06700223

PIN, HAIR #225 .072X1.09

$0.99

$

In Stock, only 4 left!

0

19

Gravely 06900634

3/4 WIRE HOSE CLMP ZC

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

22

Gravely 09170900

TRANSAXLE, ZT2800 - LH

$1134.99

$

Usually ships in 4-12 days

0

23

Gravely 09171000

TRANSAXLE, ZT2800 - RH

$1158.99

$

Usually ships in 4-12 days

0
