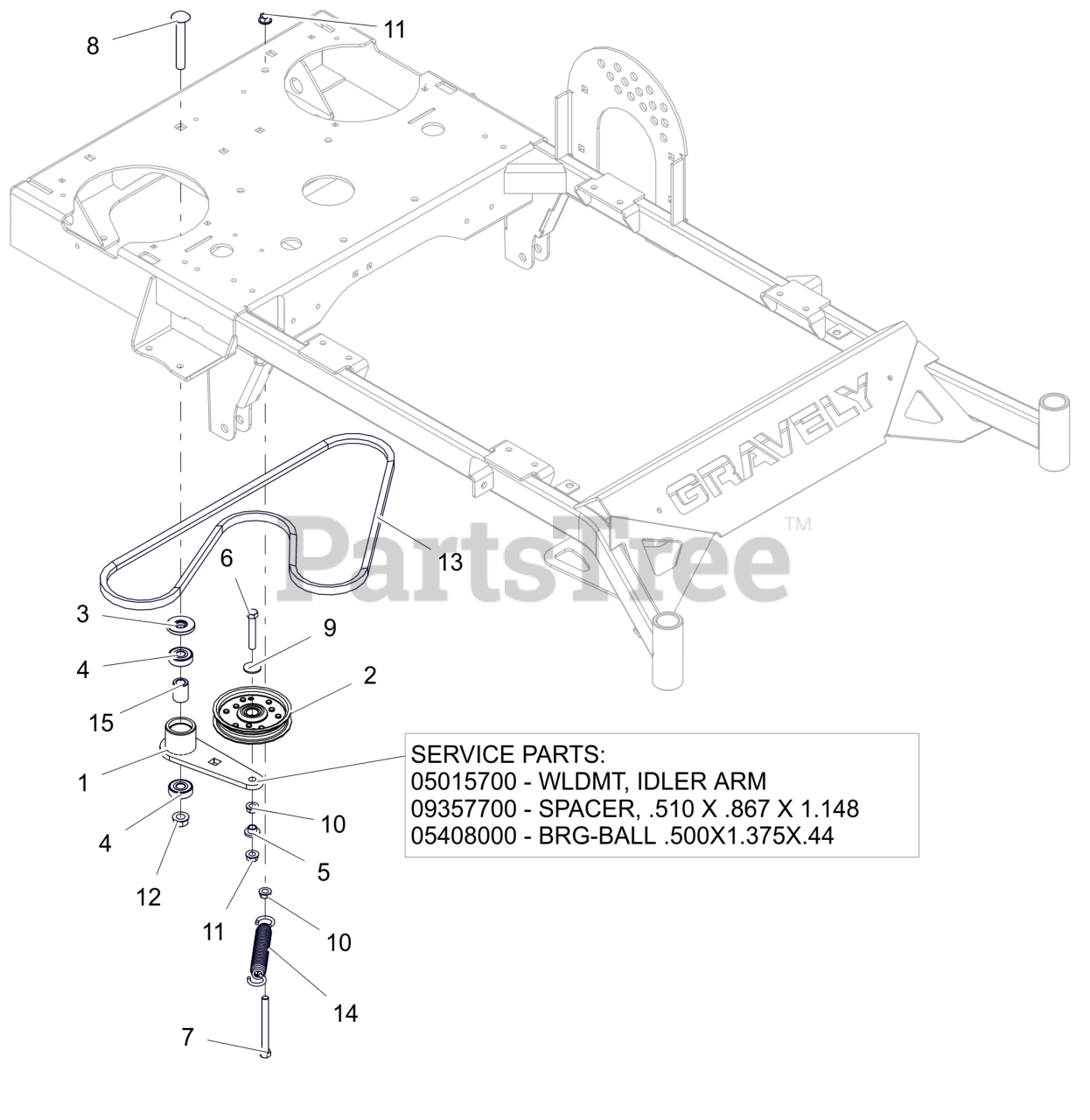

988187 - Gravely Pro-Walk 60" Walk-Behind Mower, Kawasaki FS (SN: 000600 & Above) Transaxle Drive - 48", 52", and 60" Parts Diagram

Pro-Walk 60" Walk-Behind Mower, Kawasaki FS

Transaxle Drive - 48", 52", and 60" Parts Diagram

  • Title

1

Gravely 58813700

ASM, IDLER ARM SERVICE

$38.99

$

Usually ships in 0 days

0

1

Gravely 05015700

WELDMENT, IDLER ARM

Note: Service Part Component

$33.99

$

Usually ships in 0 days

0

1

Gravely 09357700

SPACER .510 X .867 X 1.1485

Note: Service Part Component

$5.49

$

In Stock, Qty 20+

0

1

Gravely 05408000

BRG-BALL .500X1.38X.437

Note: Service Part Component

$6.99

$

In Stock, Qty 20+

0

2

Gravely 07300101

ASM, 4" IDLER (.75 WIDE)

$64.99

$

In Stock, Qty 20+

0

3

Gravely 04714600

SPACER, IDLER ARM

$6.99

$

In Stock, Qty 16

0

4

Gravely 05408000

BRG-BALL .500X1.38X.437

$6.99

$

In Stock, Qty 20+

0

5

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

6

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$4.99

$

In Stock, Qty 20+

0

7

Gravely 05902025

BLT, HEX 0.375-16X3.75 GR5 ZCC

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 06200340

BLT, RHSSN .50-13X3.50 G5 ZCC

$6.49

$

In Stock, Qty 12

0

9

Gravely 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07241400

BELT,HA WRAPPED

$53.99

$

In Stock, only 2 left!

0

14

Gravely 08300728

SPRING- EXTENSION

$28.99

$

In Stock, Qty 20+

0

15

Gravely 09357700

SPACER .510 X .867 X 1.1485

$5.49

$

In Stock, Qty 20+

0
