988301 - Gravely Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki (SN: 000101 & Above) FRAME Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki

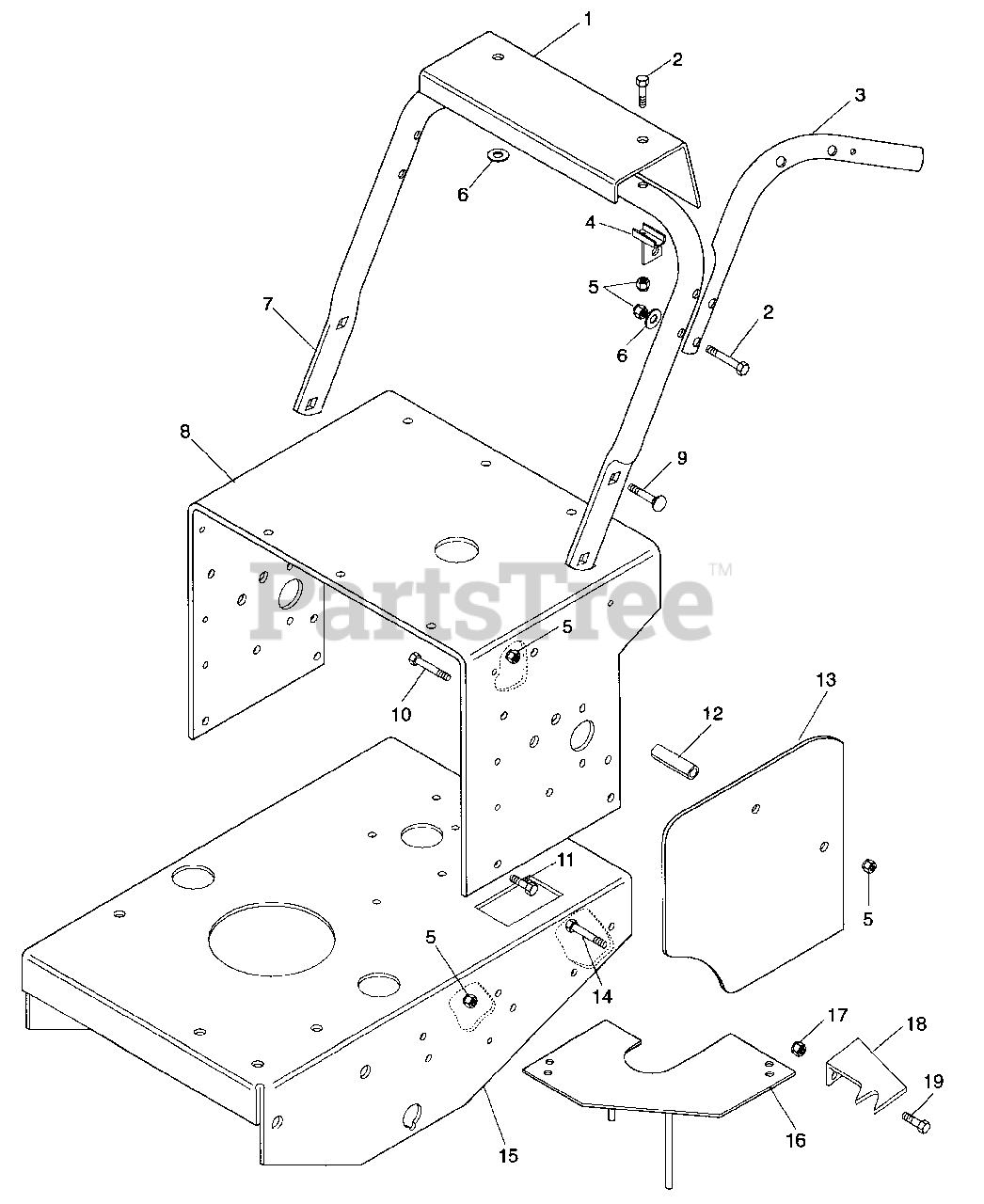

FRAME Parts Diagram

  • Title

1

Gravely 049275

PRO-150 INST PANEL W/ DECALS
(Superseded to 58801300)

$

$

Not available

2

Gravely 180130

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.99

$

In Stock, Qty 20+

0

3

Gravely 052622

HANDLEBAR, L.H.
(Superseded to 08847551)

$

$

Not available

Gravely 052623

HANDLEBER, R.H.
(Superseded to 08847651)

$

$

Not available

4

Gravely 088734

PTO LEVER MTG BKT
(Superseded to 08873400)

$

$

Not available

5

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.99

$

In Stock, Qty 20+

0

6

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 088735

LOWER HANDLEBAR, PRO 150
(Superseded to 08873500)

$

$

Not available

8

Gravely 088721

FRAME, TOP - PRO 150
(Superseded to 08872100)

$

$

Not available

9

Gravely 120915

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 189304

BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$5.49

$

In Stock, Qty 13

0

11

Gravely 180122

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 088753

BSHG, SPACER, 3.25X3/8IDX5/8OD
(Superseded to 08875300)

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 088737

GUARD, DRIVE.PRO-150 SIDE CVR
(Superseded to 08873700)

$

$

Not available

14

Gravely 180125

BLT-HEX .38-16X1.38
(Superseded to 05934900)

$

$

Not available

15

Gravely 088720

FRAME, MAIN - PRO 150
(Superseded to 08872000)

$

$

Not available

16

Gravely 088739

WLDT, BELT FINGER, PRO-150
(Superseded to 08873900)

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 065062

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

18

Gravely 088489

CLEANER,PLLY GROOVE L.H.
(Superseded to 08848900)

$

$

Not available

Gravely 088490

CLEANER,PLLY GROOVE R.H.
(Superseded to 08849000)

$26.99

$

Usually ships in 4-12 days

0

19

Gravely 059321

BLT-HEX .31-18X.63 GR5 YWZC
(Superseded to 05901832)

$2.49

$

Usually ships in 4-12 days

0

Gravely 078749

DECAL SET, PRO-150, ID & SHFTR
(Superseded to 07874900)

$

$

Not available

Gravely 07711200

DECAL WARNING FOREIGN

Note: (Euro Models Only)

$

$

Not available
