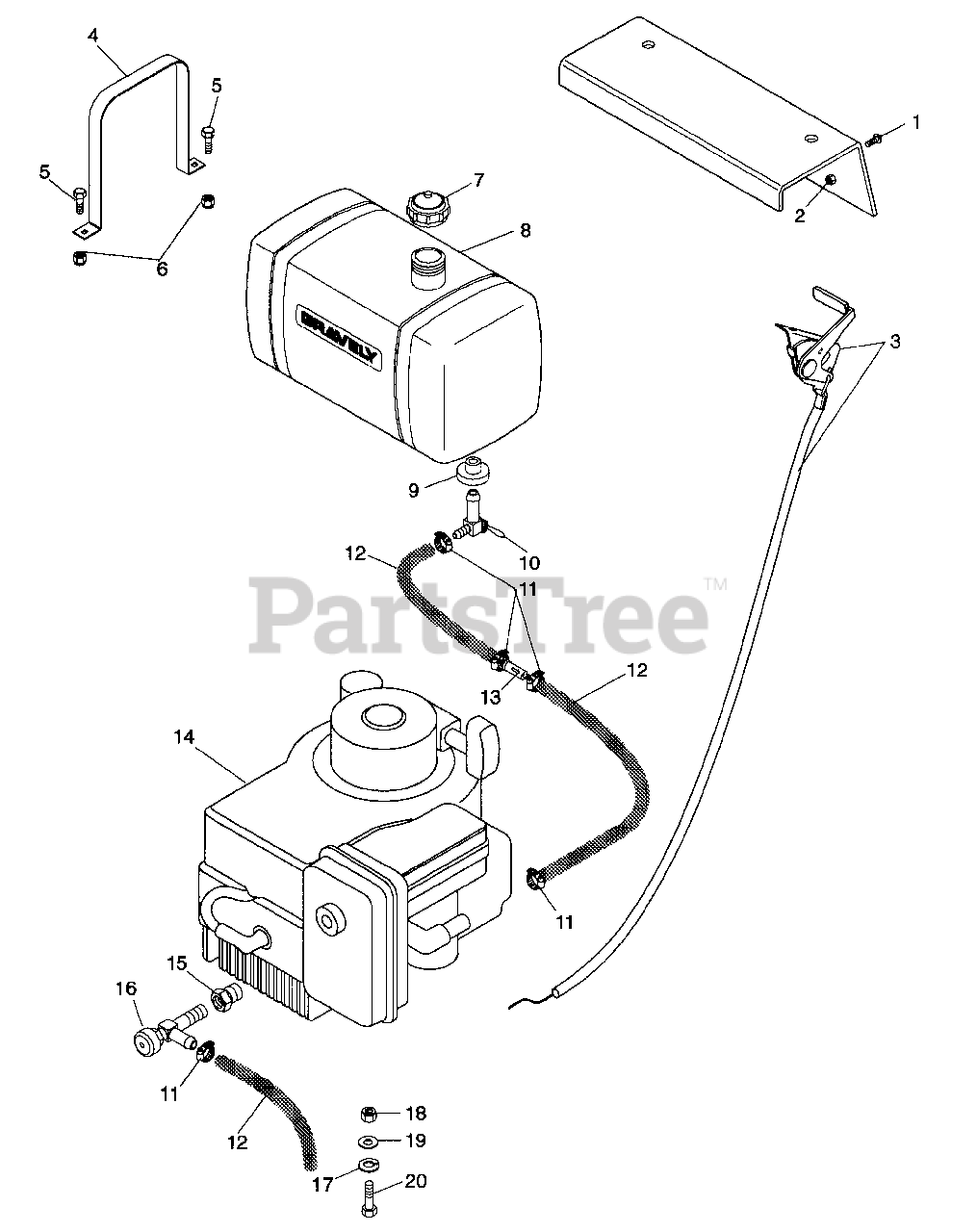

988301 - Gravely Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki (SN: 000101 & Above) FUEL & EXHAUST SYSTEM Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki

FUEL & EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 160046

SCR-MCH 10-32X.50 PHD
(Superseded to 06113300)

$2.99

$

Usually ships in 4-12 days

0

2

Gravely 411893

NUT-LK 10-32 NY YWZC
(Superseded to 06539200)

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 088731

CABLE, CONTROL
(Superseded to 06943600)

$54.99

$

Usually ships in 4-12 days

0

4

Gravely 091121

TANK STRAP FOR 4.5 G FUEL TANK
(Superseded to 09112100)

$

$

Not available

5

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

6

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

7

Gravely 048856

CAP, FUEL TANK
(Superseded to 07533400)

$23.99

$

Usually ships in 4-12 days

0

8

Gravely 091120

FUEL TANK, 4.5 GALLON
(Superseded to 09112000)

$

$

Not available

9

Gravely 047613

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 049284

VALVE,BALL SHUT-OFF
(Superseded to 08835100)

$

$

Not available

11

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

12

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 040742

FILTER,FUEL
(Superseded to 08811700)

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 044350

ENG,KAWASAKI SPEC GS01

Note: (Used Only On Model(s): 060,301).

$

$

Not available

14

Gravely 082375

ENGINE-14 HP KAWASAKI OHV

Note: (Used Only On Model(s): 059).

$

$

Not available

14

Gravely 048621

ENG,14 HP KOHLER, PS-1411

Note: (Used Only On Model(s): 069).

$

$

Not available

14

Gravely 082446

ENG,12.5HP KOHLER COMD PS-1283

Note: (Used Only On Model(s): 074).

$

$

Not available

14

Gravely 082454

ENG. 15HP KOHLER COMD PS-41532

Note: (Used Only On Model(s): 070).

$

$

Not available

15

Gravely 041831

ADPT,OIL DRAIN
(Superseded to 08757700)

$14.99

$

Usually ships in 4-12 days

0

16

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

17

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

19

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 021914

BLT-HEX M8 X 1.25X30 GR5 YWZC
(Superseded to 05968200)

$4.99

$

Usually ships in 4-12 days

0

Gravely 088812

GUARD,MUFFLER,12.5KAW,EUROPRO
(Superseded to 08881200)

Note: (Used Only On Model(s): 301).

$

$

Not available

Gravely 088813

GUARD,MUFFLER,14KAW, EUROPRO
(Superseded to 08881300)

Note: (Used Only On Model(s): 059,060,301).

$

$

Not available
