988304 - Gravely Pro 300 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton, Hydro (SN: 000101 & Above)

Pro 300 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton, Hydro

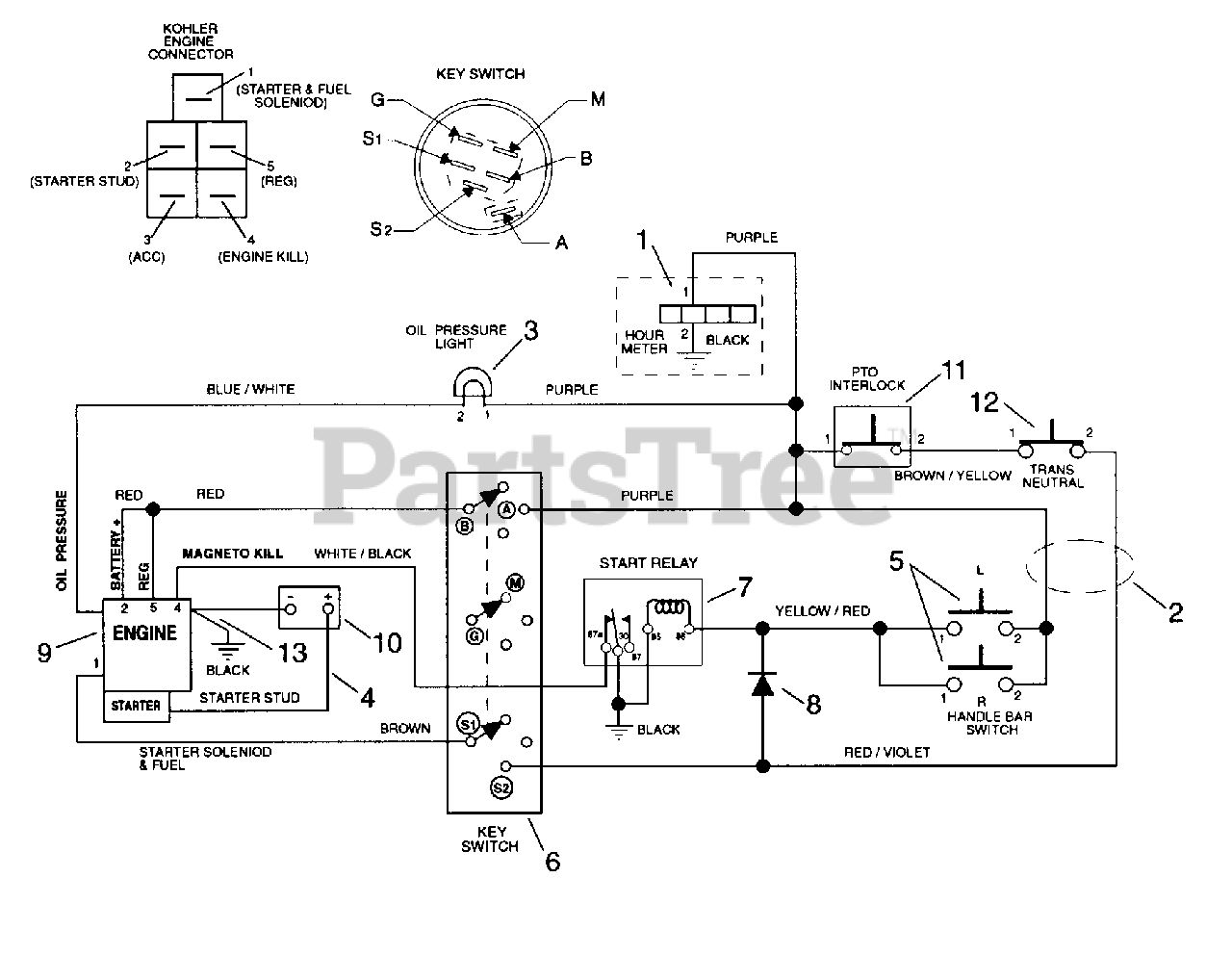

988304 - Gravely Pro 300 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton, Hydro (SN: 000101 & Above) > Parts Diagrams (7) > ELECTRICAL - 18 & 20 HP UNITS

  • Title
038256

1

Hour Meter

Part# 038256 (Superseded to 03966800)

OEM Warranty Repair Part for Gravely

Not available

088938

2

Wire Harness, PRO-300 CV18

Part# 088938

Not available

050673

3

Light, Indicator

Part# 050673 (Superseded to 05128700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $20.63

047649

4

Cable, Starter

Part# 047649 (Superseded to 03492500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $20.07

046823

5

Switch

Part# 046823 (Superseded to 08828300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $20.07

027396

6

Ignition Switch Assembly

Part# 027396 (Superseded to 52709300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $67.02

040216

7

Relay

Part# 040216 (Superseded to 00432101)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $20.07

030817

8

Molded Diode Plug - Clear 1 AMP

Part# 030817

Not available

082467

9

Engine, Kohler CV18

Part# 082467

OEM Warranty Repair Part for Gravely

Not available

041358

10

Battery, 12 Volt

Part# 041358 (Superseded to 78801800)

OEM Warranty Repair Part for Gravely

Not available

020916

11

Switch - Neutral Start N.O.

Part# 020916 (Superseded to 02913100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $33.48

046219

12

Switch, Interlock

Part# 046219 (Superseded to 08828100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $16.71

042130

13

Cable, Negative Battery

Part# 042130 (Superseded to 03288100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48
