988307 - Gravely Pro 300 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton, Hydro (SN: 000101 - 009999) Traction Clutch Linkage And Electric Clutch Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton, Hydro

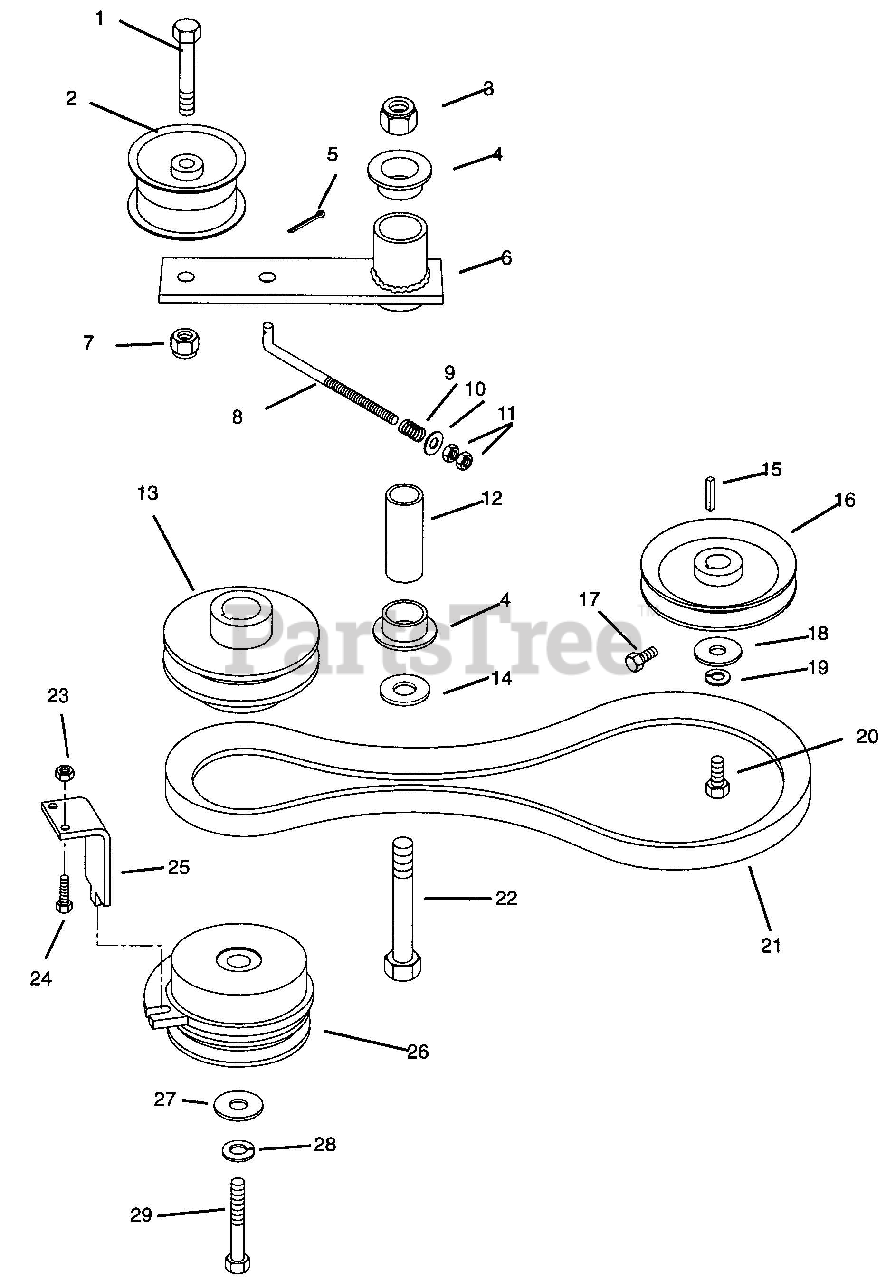

Traction Clutch Linkage And Electric Clutch Parts Diagram

  • Title

1

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, only 3 left!

0

2

Gravely 052062

Idler-Pulley-Flat 3.25 x .625
(Superseded to 07320700)

Note: Gravely Part Number

$34.99

$

In Stock, only 3 left!

0

3

Gravely 06536300

Nut-Locking-Center .50-13 Grade 5
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

4

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

Note: Gravely Part Number

$4.99

$

In Stock, Qty 20+

0

5

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 5

0

6

Gravely 051134

Weldment - Ground Drive Idler
(Superseded to 08844251)

Note: Gravely Part Number

$58.99

$

Usually ships in 4-12 days

0

7

Gravely 06529600

Nut-Locking-Center .375-16 Grade 2
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 052661

Rod - Idler
(Superseded to 08879300)

Note: Gravely Part Number

$77.99

$

Usually ships in 4-12 days

0

9

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

Note: Gravely Part Number

$15.99

$

In Stock, Qty 5

0

10

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06534700

Nut-Hex .375-24 Grade 2
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

12

Gravely 041992

Bushing-Steel .560 x .745 x 2.04
(Superseded to 08815100)

Note: Gravely Part Number

$21.99

$

Usually ships in 4-12 days

0

13

Gravely 09113600

Sheave - Engine

$116.99

$

Usually ships in 4-12 days

0

14

Gravely 06441900

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 0509950

Key - Straight 5mm x 25mm x 5mm

$

$

Not available

16

Gravely 051138

Sheave 4.0 x .199
(Superseded to 07318900)

Note: Gravely Part Number

$51.99

$

In Stock, Qty 7

0

17

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

18

Gravely 012694

Washer-Flat-Steel .281 x 1.250 x .062
(Superseded to 06403700)

Note: Gravely Part Number

$1.49

$

Usually ships in 4-12 days

0

19

Gravely 06308400

Washer-Lock .250 Reg.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

20

Gravely 05969800

Bolt-Hex M6 x 1.0 x 12mm Lg

$1.99

$

In Stock, Qty 5

0

21

Gravely 051141

V-Belt-A-RMA 24.50 x 33/64
(Superseded to 07223100)

Note: Gravely Part Number

$40.99

$

Usually ships in 4-12 days

0

22

Gravely 05959900

Bolt-Hex .50-13 x 3.00
(Superseded to 05901737)

$4.99

$

In Stock, Qty 8

0

23

Gravely 06529800

Nut-Locking-Center .312-18 Grade 2
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

25

Gravely 09113400

Clutch Stop

$

$

Not available

26

Gravely 03357900

Clutch - Electric

Note: (988083, 307)

$491.99

$

Usually ships in 4-12 days

0

26

Gravely 09225400

Clutch - Electric

Note: (988084)

$362.99

$

Usually ships in 4-12 days

0

27

Gravely 06443600

Washer-Special .469 x 2.000 x .250
(Superseded to 06401111)

$6.99

$

In Stock, Qty 20+

0

28

Gravely 06309300

Washer-Lock .44 Reg.
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

29

Gravely 05965700

Bolt-Hex .44-20 x 3.00
(Superseded to 05900037)

$6.99

$

In Stock, only 4 left!

0
