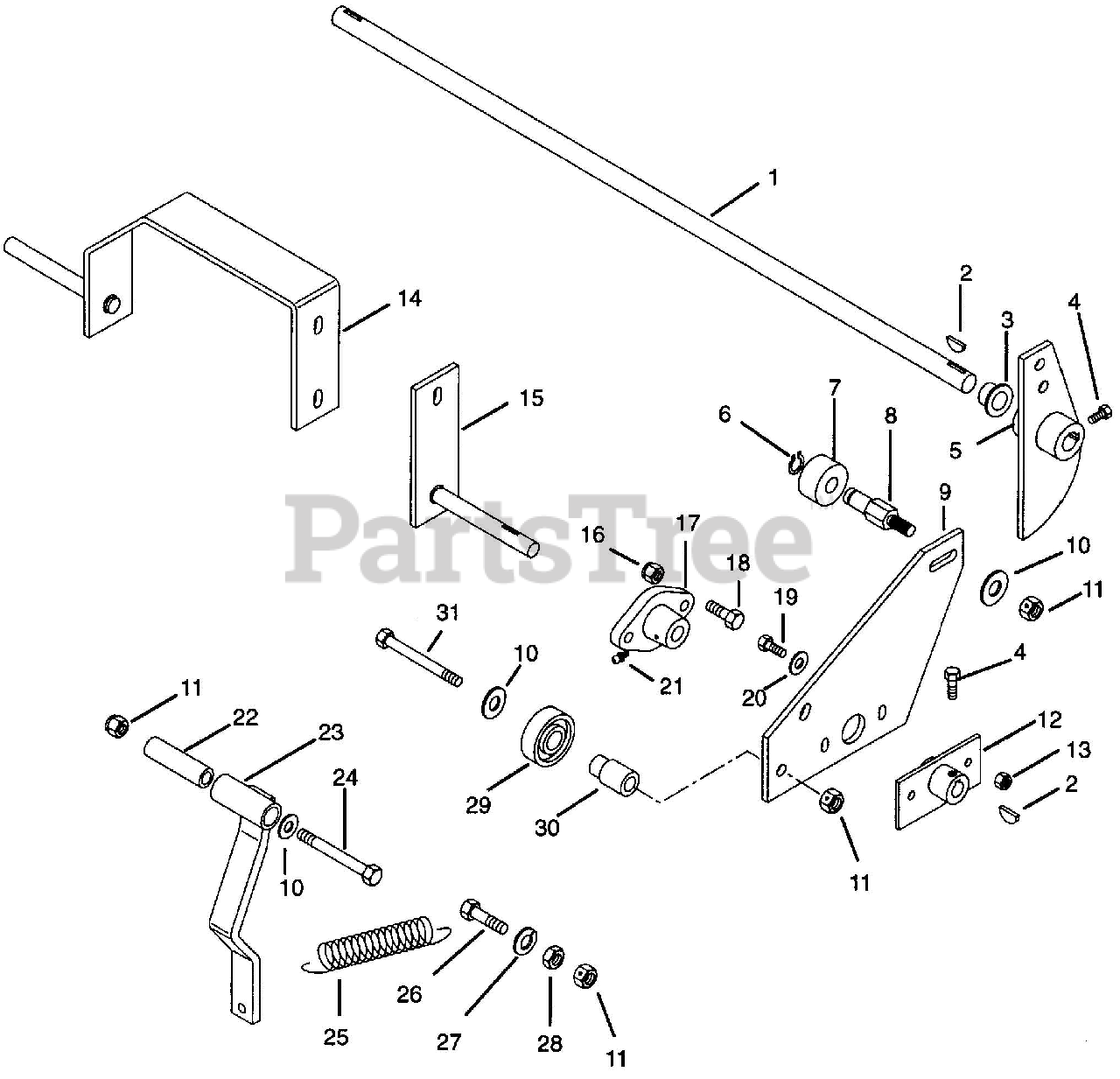

988307 - Gravely Pro 300 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton, Hydro (SN: 000101 - 009999) Wheel Drive Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton, Hydro

Wheel Drive Parts Diagram

  • Title

1

Gravely 051131

Shaft - Speed Control Cam
(Superseded to 08843900)

Note: Gravely Part Number

$13.99

$

Usually ships in 4-12 days

0

2

Gravely 124547

Key - Woodruff .13 x .75
(Superseded to 06608600)

Note: Gravely Part Number

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 045787

Bushing-Flang .630 x 1.000 x .625
(Superseded to 05517400)

Note: Gravely Part Number

$6.99

$

In Stock, only 2 left!

0

4

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

5

Gravely 051117

Weldment - Control Cam
(Superseded to 08842900)

Note: Gravely Part Number

$17.99

$

Usually ships in 4-12 days

0

6

Gravely 048988

Ring-Retaining-Internal 2.68 x .049
(Superseded to 05715600)

Note: Gravely Part Number

$2.49

$

In Stock, only 2 left!

0

7

Gravely 050993

Roller - Nylon
(Superseded to 08834000)

Note: Gravely Part Number

$43.99

$

Usually ships in 4-12 days

0

8

Gravely 051123

Pin - Roller
(Superseded to 08843300)

Note: Gravely Part Number

$

$

Not available

9

Gravely 052202

Arm - Speed Control
(Superseded to 08847100)

Note: Gravely Part Number

$

$

Not available

10

Gravely 06536200

Washer-Flat-Steel .406 x .812 x .065

$

$

Not available

11

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 01525500

Weldment - Neutral Adjustment

$20.99

$

Usually ships in 4-12 days

0

13

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 052682

Weldment - Pump Control - Right Hand
(Superseded to 08848400)

Note: Gravely Part Number

$

$

Not available

15

Gravely 052683

Weldment - Pump Control - Left Hand
(Superseded to 08848500)

Note: Gravely Part Number

$109.99

$

Usually ships in 4-12 days

0

16

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 01522000

Bushing-Flanged Support

$21.99

$

In Stock, only 1 left!

0

18

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

19

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

20

Gravely 06437300

Washer-Flat-Steel .81 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 16

0

21

Gravely 411027

Fitting - Lube .25-28 x .256
(Superseded to 07012600)

Note: Gravely Part Number

$

$

Not available

22

Gravely 049022

Bushing-Steel .385 x .610 x 1.80
(Superseded to 08831500)

Note: Gravely Part Number

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 051124

Weldment - Detent Strap
(Superseded to 04906451)

Note: Gravely Part Number

$

$

Not available

24

Gravely 05961400

Bolt-Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, Qty 20+

0

25

Gravely 051233

Spring-Tens .063 x .62 x 2.75
(Superseded to 08345500)

Note: Gravely Part Number

$14.99

$

Usually ships in 4-12 days

0

26

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

27

Gravely 06308800

Washer-Lock .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

28

Gravely 06529400

Nut-Hex .375-16
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

29

Gravely 05407900

Bearing-Ball .500 x 1.375 x .437
(Superseded to 05408000)

$5.99

$

In Stock, Qty 20+

0

30

Gravely 09107200

Hub - Bearing Mount

$

$

Not available

31

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 13

0
