988309 - Gravely Pro 150 Walk-Behind Mower Power Unit, Hydro Drive, 14hp Kawasaki (SN: 010000 & Above) Fuel And Exhaust System - 12.5 H.P. And 14 H.P. Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, Hydro Drive, 14hp Kawasaki

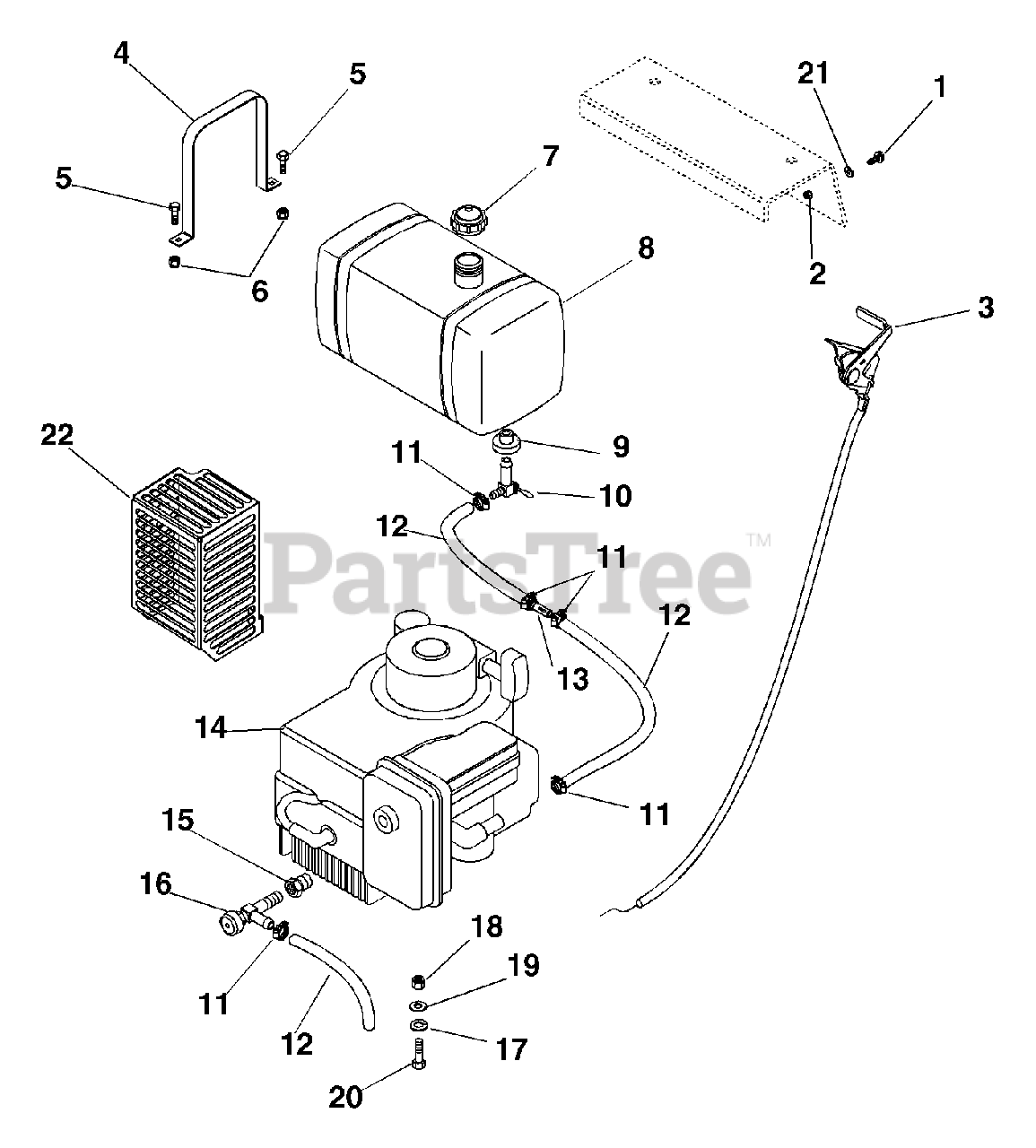

Fuel And Exhaust System - 12.5 H.P. And 14 H.P. Parts Diagram

  • Title

1

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

3

Gravely 06943600

Cable, Control

$52.99

$

Usually ships in 4-12 days

0

4

Gravely 09112100

Tank Strap For 4.5 Gallon Fuel Tank

$

$

Not available

5

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

6

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 048856

Cap, Fuel Tank
(Superseded to 07533400)

$22.99

$

In Stock, only 1 left!

0

8

Gravely 09112000

Fuel Tank, 4.5 Gallon

$

$

Not available

9

Gravely 047613

Bushing Flange .375 x 1.06 x .625
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 049284

Valve Ball Shut-Off
(Superseded to 08835100)

$

$

Not available

11

Gravely 032045

Clamp, Hose
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 021134

Gas Line-Bulk .25" I.D.
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 040742

Filter, Fuel
(Superseded to 08811700)

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 08235000

Engine, Kawasaki-12.5 H.P.

Note: (Model 091)

$

$

Not available

14

Gravely 08237500

Engine, Kawasaki-14 HP OHV

Note: (Models 088, 309)

$

$

Not available

15

Gravely 041831

Adapter, Oil Drain
(Superseded to 08757700)

$14.99

$

Usually ships in 4-12 days

0

16

Gravely 035329

Cock, Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

17

Gravely 06308600

Washer-Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

20

Gravely 05968200

Bolt-Hex M8 x 1.25 x 30 Grade 5

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

22

Gravely 04903000

Weldment, Muffler Guard

Note: (Model 039)

$31.99

$

Usually ships in 4-12 days

0
