988312 - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 000101 - 001999) 36", 44" And 48" Fixed Deck And Mower Frame Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

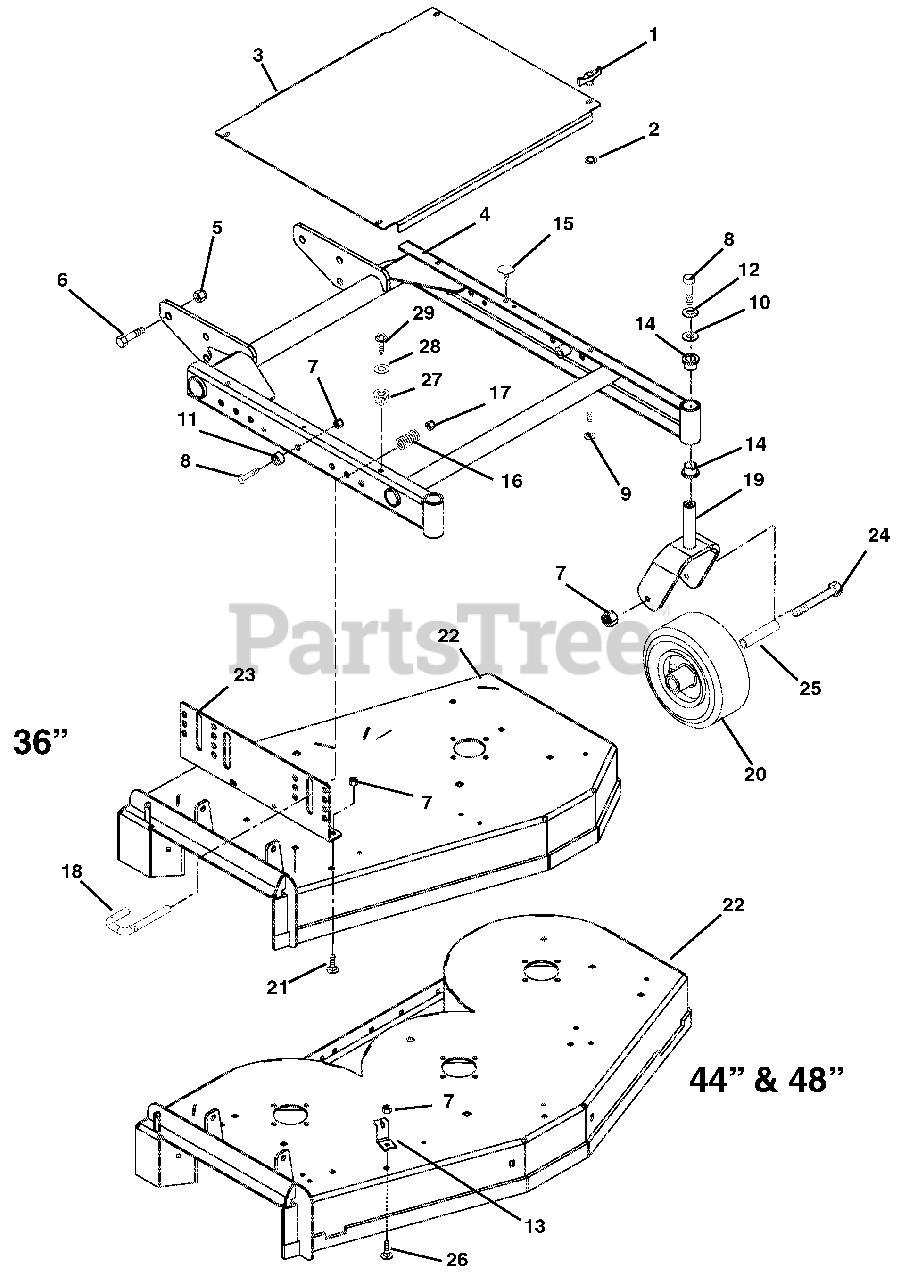

36", 44" And 48" Fixed Deck And Mower Frame Parts Diagram

  • Title

1

Gravely 07531700

Knob- Wing .312-18 (105, 106, 113)
(Superseded to 07534800)

Note: (105, 106, 113)

$3.99

$

In Stock, Qty 20+

0

2

Gravely 040380

Nut-Push .312 (105, 106, 113)
(Superseded to 06514900)

Note: (105, 106, 113)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 04916753

Cover, Belt Pro Mower(105, 312)

Note: (105, 312)

$

$

Not available

Gravely 04919853

Cover, Belt Pro Mower(106)

Note: (106)

$131.99

$

Usually ships in 4-12 days

0

Gravely 04929753

Cover- Belt- Pro- 32

$

$

Not available

Gravely 04940153

Cover- Belt- Pro- 44(113)

Note: (113)

$

$

Not available

4

Gravely 04916653

Weldment - Mower Frame 36"(105, 312)

Note: (105, 312)

$

$

Not available

Gravely 04919753

Weldment - Mower Frame 48" (106)

Note: (106)

$

$

Not available

Gravely 04940053

Weldment - Mower Frame 44" (113)

Note: (113)

$

$

Not available

5

Gravely 06540700

Nut-Locking-Nylon .625-11

$4.99

$

In Stock, Qty 20+

0

6

Gravely 05968700

Bolt-Hex .62-11 x 1.50

$3.99

$

In Stock, Qty 12

0

7

Gravely 06542000

Nut-Locking-Top-Flange .38-16(105, 312)
(Superseded to 06500822)

Note: (105, 312)

$1.49

$

In Stock, Qty 20+

0

Gravely 06542000

Nut-Locking-Top-Flange .38-16(106, 113)
(Superseded to 06500822)

Note: (106, 113)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.99

$

In Stock, Qty 17

0

9

Gravely 06221800

Bolt-Round Head Square Neck .31-18 x 1.00 (105, 106, 113)
(Superseded to 06200237)

Note: (105, 106, 113)

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 06443400

Washer-Flat-Steel .38 x 1.50 x .125
(Superseded to 06401106)

$3.99

$

In Stock, Qty 20+

0

11

Gravely 043922

Bushing
(Superseded to 08553700)

$6.49

$

In Stock, Qty 20+

0

12

Gravely 06308800

Washer-Locking .38 x .094 Regular
(Superseded to 06300116)

$1.49

$

In Stock, Qty 19

0

13

Gravely 09245353

Anchor, Spring (106, 113)

Note: (106, 113)

$42.99

$

Usually ships in 4-12 days

0

14

Gravely 05533600

Bushing-Flange 1.00 x 1.25 x 1.50 x 1.50
(Superseded to 05500934)

$7.99

$

In Stock, Qty 20+

0

15

Gravely 07503100

Bumper Grommet .125 x .25 Dia.

$3.99

$

In Stock, Qty 20+

0

16

Gravely 051650

Spring-Compression .058 x .65 x 2.13
(Superseded to 08325900)

$

$

Not available

17

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$4.99

$

In Stock, Qty 16

0

18

Gravely 04920400

Pin- Latch

$38.99

$

Usually ships in 4-12 days

0

19

Gravely 04917053

Weldment-Caster Fork

$151.99

$

Usually ships in 4-12 days

0

20

Gravely 07157200

Wheel 9 x 3.50
(Superseded to 07100931)

$151.99

$

In Stock, only 2 left!

0

21

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 1 left!

0

22

Gravely 58804500

Kit, 36" Fixed Mower Deck with Decals(105, 312)

Note: (105, 312)

$484.99

$

Usually ships in 4-12 days

0

Gravely 58804600

Kit, 48" Fixed Mower Deck with Decals(106)

Note: (106)

$

$

Not available

Gravely 58806100

Kit, 44" Fixed Mower Deck with Decals (113)

Note: (113)

$

$

Not available

23

Gravely 58806600

Kit-Mower Side Support Bracket-Right Hand and Left Hand

$161.99

$

Usually ships in 4-12 days

0

24

Gravely 05925400

Bolt-Hex .38-16 x 5.50
(Superseded to 05982000)

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 04916900

Bearing .625 x .380 x 4.08

$73.99

$

Usually ships in 4-12 days

0

26

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.99

$

In Stock, only 4 left!

0

27

Gravely 07538100

Grommet,Plastic(312)

Note: (312)

$1.49

$

Usually ships in 4-12 days

0

28

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065(312)
(Superseded to 06401001)

Note: (312)

$0.99

$

In Stock, only 3 left!

0

29

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head(312)
(Superseded to 07400122)

Note: (312)

$0.99

$

In Stock, Qty 20+

0
