988312 - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 000101 - 001999) Hydraulics Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

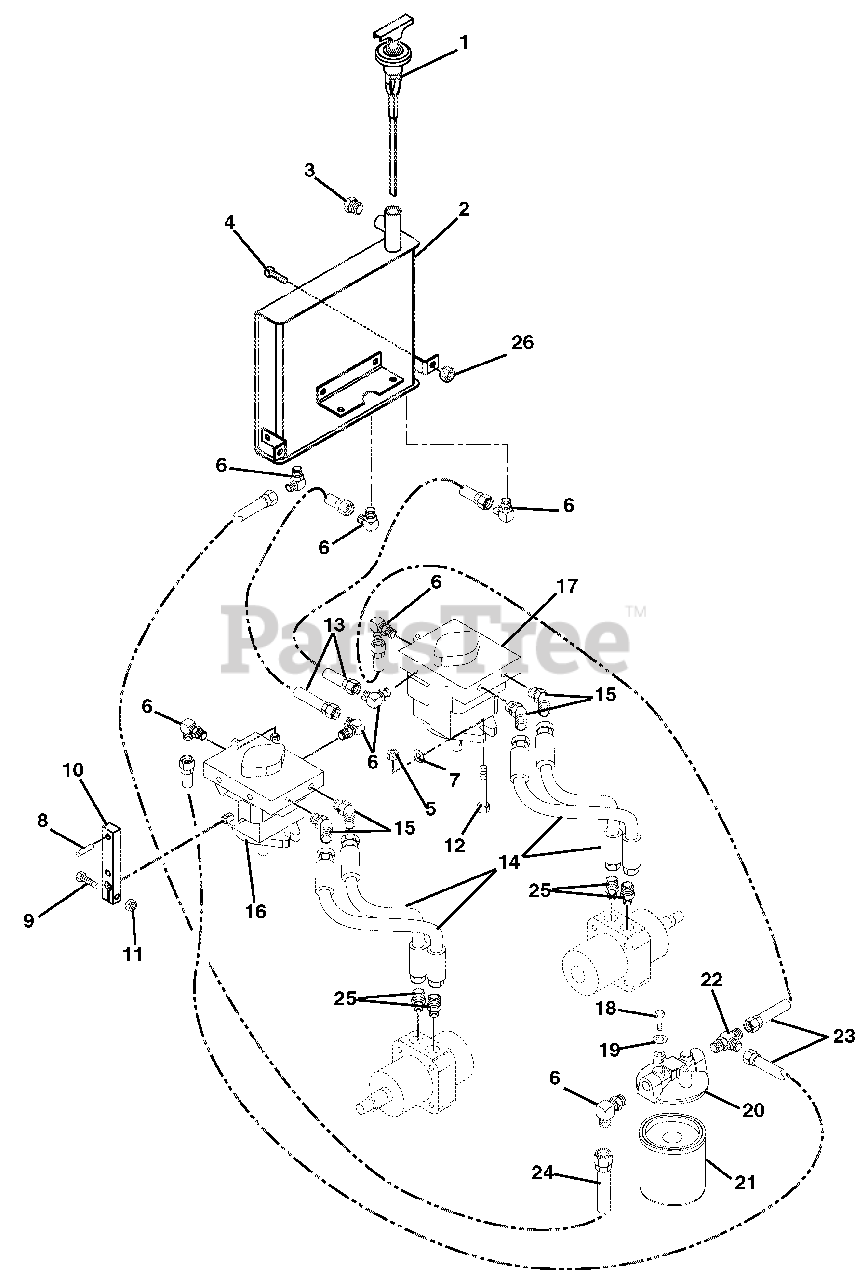

Hydraulics Parts Diagram

  • Title

1

Gravely 04935400

Dipstick, Hydraulic Tank

$

$

Not available

2

Gravely 04915853

Tank Assembly, Hydraulic
(Superseded to 58806900)

$

$

Not available

3

Gravely 07050600

Plug, Breather .38"

$

$

Not available

4

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 039413

Nut-Nylon-Locking .44-14
(Superseded to 06527500)

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 07063600

Fitting, Hydraulic

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 06443800

Washer-Flat-Steel .43 x 1.00 x .16

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 051889

Pin-Dowel .312 x 1.25
(Superseded to 05808000)

$6.49

$

Usually ships in 4-12 days

0

9

Gravely 05947400

Bolt-Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$2.49

$

In Stock, Qty 7

0

10

Gravely 08880700

Arm, Pump Actuating

$

$

Not available

11

Gravely 06531000

Nut-Locking-Nylon .25-20
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

12

Gravely 05962800

Bolt-Hex .44-14 x 1.50 Grade 5
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

13

Gravely 04925500

Hose Hydraulic

$86.99

$

Usually ships in 4-12 days

0

14

Gravely 04925900

Hose,Hydraulic

$100.99

$

In Stock, only 2 left!

0

15

Gravely 07066200

Fitting,Hydraulic

$62.99

$

Usually ships in 4-12 days

0

16

Gravely 04915600

Pump, Hydraulic Right Hand

$716.99

$

Usually ships in 4-12 days

0

17

Gravely 04915700

Pump, Hydraulic Left Hand

$

$

Not available

18

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

19

Gravely 06308400

Washer-Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

20

Gravely 09072100

Head, Filter

$62.99

$

Usually ships in 4-12 days

0

21

Gravely 09246900

Filter- Oil

$28.99

$

In Stock, Qty 14

0

22

Gravely 07066100

Fitting,Hydraulic Tee

$

$

Not available

23

Gravely 04925600

Hose,Hydraulic

$

$

Not available

24

Gravely 04911500

Hose,Hydraulic

$81.99

$

In Stock, only 1 left!

0

25

Gravely 07060000

Adapter, Face Seal 10 x 8.625 O-Ring
(Superseded to 07062100)

$15.99

$

Usually ships in 4-12 days

0

26

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0
