988312 - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 000101 - 001999) Speed Controls Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

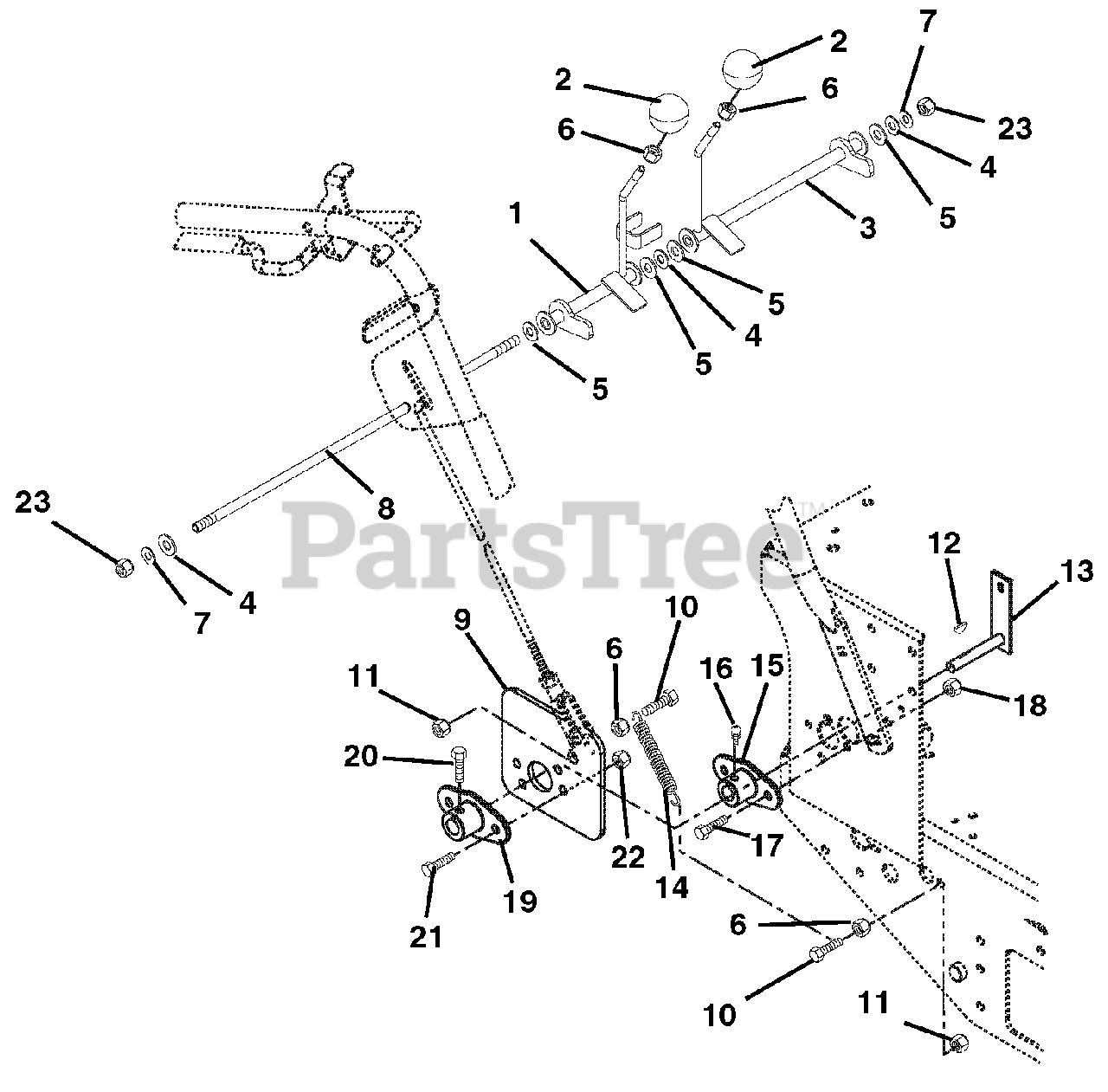

Speed Controls Parts Diagram

  • Title

1

Gravely 04926300

Weldment, Right Hand Lever

$

$

Not available

2

Gravely 07533500

Knob,Ball-Black 1-13/32, .375-16

$10.99

$

In Stock, only 2 left!

0

3

Gravely 04926400

Weldment, Left Hand Lever

$131.99

$

Usually ships in 4-12 days

0

4

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06435500

Washer-Flat-Nylon .375 x 1.00 x .062

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06308800

Washer-Locking .38 x .094 Regular
(Superseded to 06300116)

$1.49

$

In Stock, Qty 19

0

8

Gravely 04926600

Rod, Speed Control

$34.99

$

Usually ships in 4-12 days

0

9

Gravely 04926751

Plate, Speed Control

$

$

Not available

10

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

11

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 124547

Key-Woodruff .125 x .75
(Superseded to 06608600)

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 052683

Weldment,Pump Control Left Hand
(Superseded to 08848500)

$112.99

$

Usually ships in 4-12 days

0

14

Gravely 052617

Spring-Tension .105 x 1.00 x 5.0
(Superseded to 08346800)

$15.99

$

In Stock, Qty 5

0

15

Gravely 01522000

Bushing, Flanged

$35.99

$

In Stock, only 1 left!

0

16

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

17

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

18

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 01525500

Arm, Speed Control

$21.99

$

Usually ships in 4-12 days

0

20

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

21

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 13

0

22

Gravely 06531000

Nut-Locking-Nylon .25-20
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

23

Gravely 120369

Nut-Hex .375-24 Grade 2
(Superseded to 06522900)

$2.99

$

In Stock, only 2 left!

0
