988312 - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 000101 - 001999) Steering Controls Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

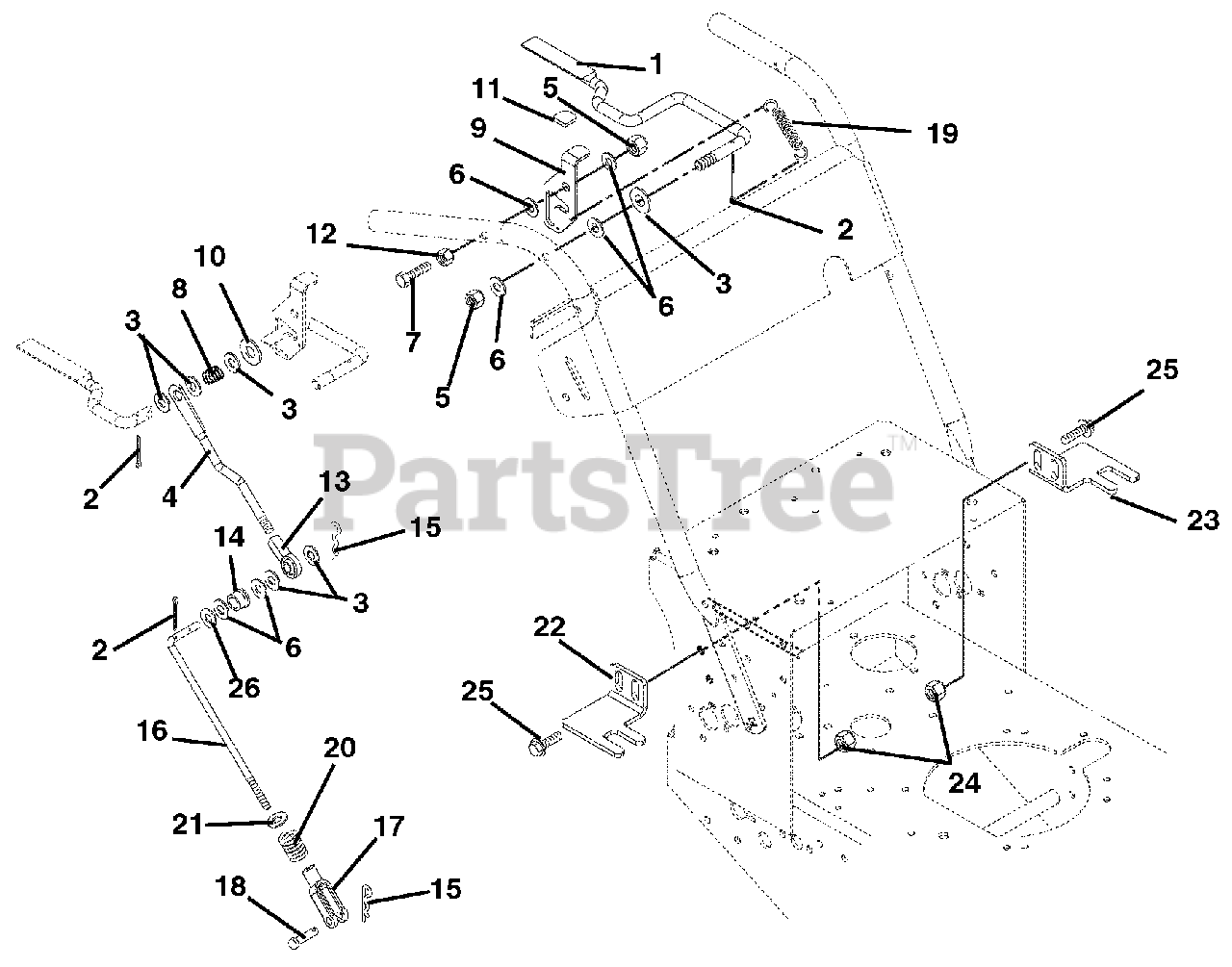

Steering Controls Parts Diagram

  • Title

1

Gravely 04905200

Lever, Hand Control Left Hand

$81.99

$

In Stock, only 3 left!

0

Gravely 04922400

Lever, Hand Control Right Hand

$73.99

$

In Stock, only 4 left!

0

2

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 8

0

3

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 04926200

Rod, Steering Link

$

$

Not available

5

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 020775

Washer-Flat-Nylon .375 x .75 x .060
(Superseded to 06433600)

$0.99

$

In Stock, Qty 10

0

7

Gravely 05921600

Bolt-Hex .38-16 x 2.50 Grade 2

$3.49

$

In Stock, only 3 left!

0

8

Gravely 043193

Spring-Compression .045 x .60 x .75
(Superseded to 08338800)

$7.49

$

In Stock, only 2 left!

0

9

Gravely 04926800

Latch, Right Hand Thumb

$

$

Not available

Gravely 04926900

Latch, Left Hand Thumb

$56.99

$

Usually ships in 4-12 days

0

10

Gravely 06441000

Washer-Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$3.49

$

In Stock, only 4 left!

0

11

Gravely 04928700

Grip, Thumb Latch

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 06537200

Nut-Locking-Jam-Center .375-16
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 044753

Rod End, .38
(Superseded to 03563100)

$17.99

$

In Stock, only 2 left!

0

14

Gravely 05533900

Bushing-Flange .375 x .469 x .25

$

$

Not available

15

Gravely 06713500

Pin-Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 04926500

Rod, Speed Control

$71.99

$

Usually ships in 4-12 days

0

17

Gravely 018380

Clevis,.38-24 Adjustable
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

18

Gravely 06814900

Pin-Clevis .38 x 1.25

$4.99

$

In Stock, only 2 left!

0

19

Gravely 08339300

Spring-Tension .041 x .50 x 1.75

$6.49

$

In Stock, Qty 12

0

20

Gravely 08312500

Spring-Compression .093 x .59 x 1.50

$

$

Not available

21

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 04931200

Stop, Hydro Neutral Right Hand

$

$

Not available

23

Gravely 04931100

Stop, Hydro Neutral Left Hand

$

$

Not available

24

Gravely 06543500

Nut-Locking-Top-Flange .25-20
(Superseded to 06500903)

$1.49

$

In Stock, Qty 11

0

25

Gravely 07049400

Bolt-Serrated Hex Flange Washer Head .25-20 x .75

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 06443300

Washer-Flat-Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 20+

0
