988312 - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 002000 & Above) 36", 44" And 48" Fixed Deck And Mower Frame Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

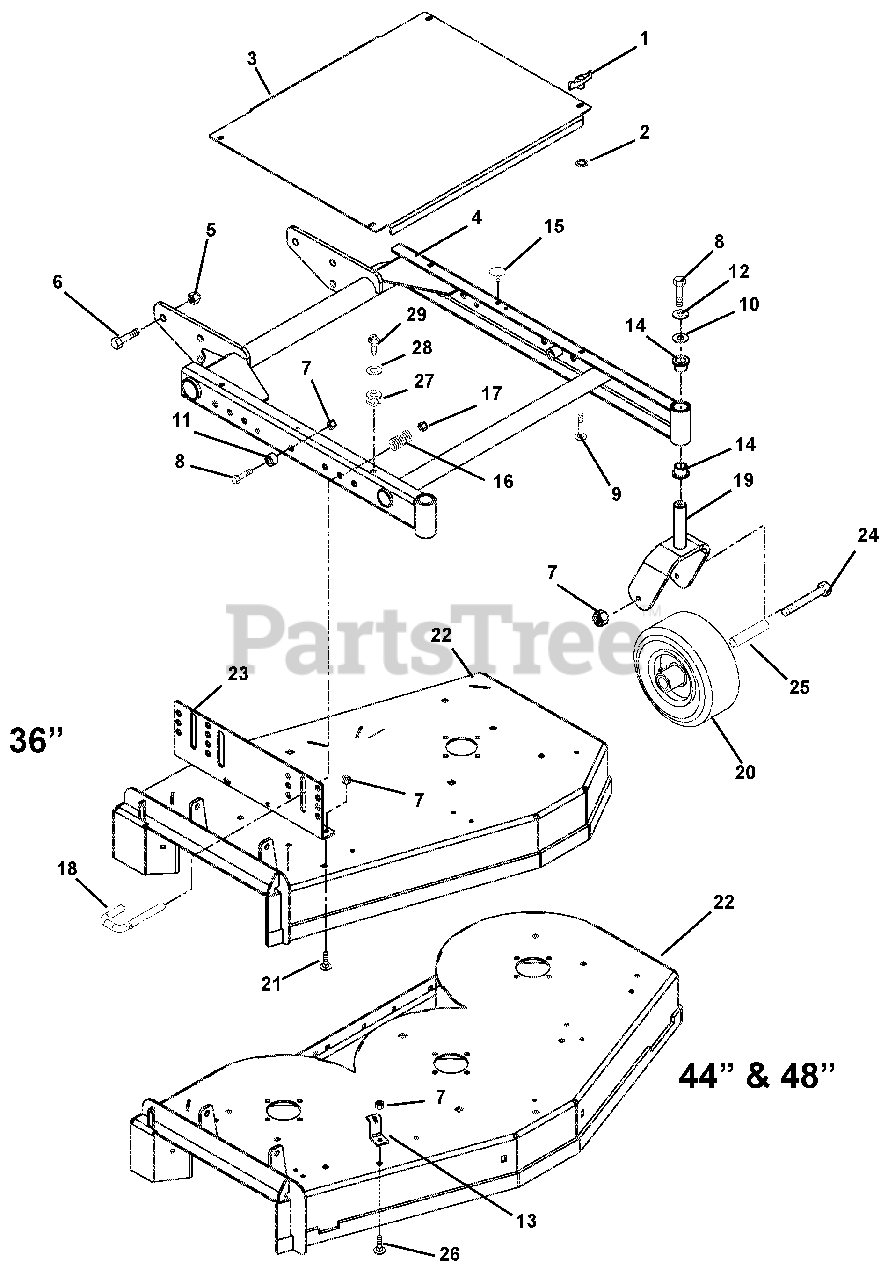

36", 44" And 48" Fixed Deck And Mower Frame Parts Diagram

  • Title

1

Gravely 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

Note: (105, 106, 113, 120)

$3.99

$

In Stock, Qty 20+

0

2

Gravely 040380

NUT-PUSH .312
(Superseded to 06514900)

Note: (105, 106, 113, 120)

$0.99

$

In Stock, Qty 9

0

3

Gravely 04916753

COVER - BELT - PRO MOWER

Note: (105, 120, 312, 314)

$

$

Not available

Gravely 04919853

COVER - BELT - PRO - 48"

Note: (106)

$131.99

$

Usually ships in 4-12 days

0

Gravely 04929753

COVER - BELT - PRO - 32"

$

$

Not available

Gravely 04940153

COVER - BELT - PRO - 44"

Note: (113)

$

$

Not available

4

Gravely 04916653

WMT - MOWER FRAME - 36"

Note: (105, 120, 312, 314)

$

$

Not available

Gravely 04919753

WMT - MOWER FRAME - 48"

Note: (106)

$

$

Not available

Gravely 04940053

WMT - MOWER FRAME - 44"

Note: (113)

$

$

Not available

5

Gravely 06540700

NUT-LK-NYL .625-11 YWZC

$4.99

$

In Stock, Qty 20+

0

6

Gravely 05968700

BLT-HEX .62-11X1.50 GR5 YWZC

$3.99

$

In Stock, Qty 9

0

7

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (105, 120, 312, 314)

$1.49

$

In Stock, Qty 20+

0

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (106, 113)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

Note: (105, 106, 113, 120)

$2.99

$

In Stock, only 2 left!

0

10

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.99

$

In Stock, Qty 20+

0

11

Gravely 043922

BSHG-SLV .391X.688X.52 PM
(Superseded to 08553700)

$6.49

$

In Stock, Qty 20+

0

12

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 09245353

ANCHOR, SPRING (RED)

Note: (106, 113)

$42.99

$

Usually ships in 4-12 days

0

14

Gravely 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$7.99

$

In Stock, Qty 20+

0

15

Gravely 07503100

BUMPER GROMMET

$3.99

$

In Stock, Qty 14

0

16

Gravely 051650

SPRG, COMP .058X.65X2.13 WLD15
(Superseded to 08325900)

$

$

Not available

17

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

18

Gravely 04920400

PIN - LATCH

$38.99

$

Usually ships in 4-12 days

0

19

Gravely 04917053

WMT - CASTER FORK

$151.99

$

Usually ships in 4-12 days

0

20

Gravely 07157200

WHEEL 9 X 3.50 SEMI-PNEUMATIC
(Superseded to 07100931)

$151.99

$

In Stock, only 4 left!

0

21

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 58804500

KIT-36" FX MOWER DECK W/DECALS

Note: (105, 120, 312, 314)

$484.99

$

Usually ships in 4-12 days

0

Gravely 58804600

KIT-48" FX MOWER DECK W/DECALS

Note: (106)

$

$

Not available

Gravely 58806100

KIT-44" FX MOWER DECK W/DECALS

Note: (113)

$

$

Not available

23

Gravely 58806600

KIT-MOWER SIDE SUPT BRKT-RH&LH

$161.99

$

Usually ships in 4-12 days

0

24

Gravely 05925400

BLT-HEX .38-16X5.50 YWZC
(Superseded to 05982000)

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 04916900

BEARING .625 X .380 X 4.08

$73.99

$

Usually ships in 4-12 days

0

26

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

27

Gravely 07538100

GRMT,PLASTIC

Note: (312, 314)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (312, 314)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (312, 314)

$0.99

$

In Stock, Qty 20+

0
