988312 - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 002000 & Above) 36" Discharge chute And Baffles Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

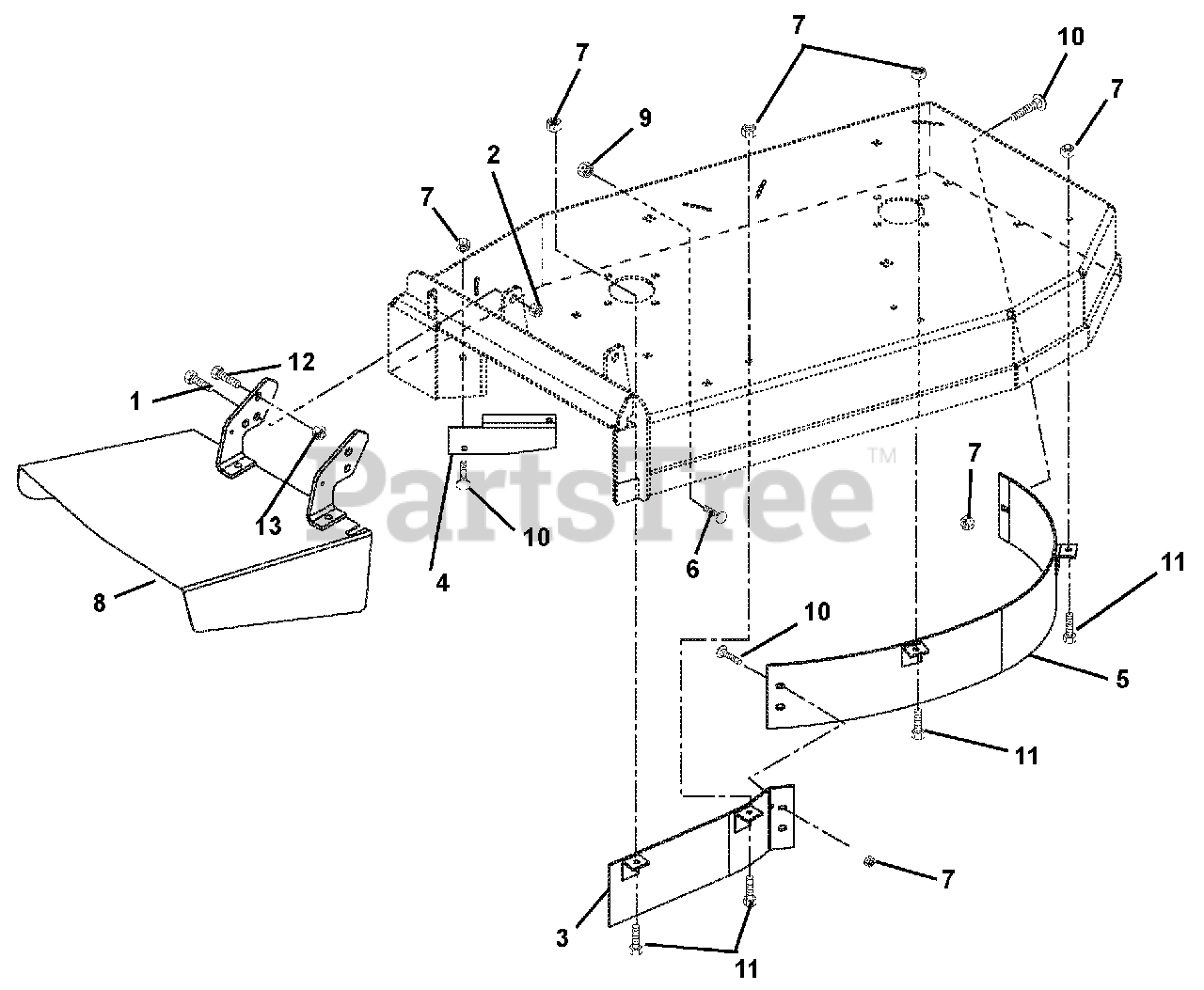

36" Discharge chute And Baffles Parts Diagram

  • Title

1

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

2

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

3

Gravely 04916351

BAFFLE - RIGHT FRONT - 36"
(Superseded to 04916353)

$65.99

$

Usually ships in 4-12 days

0

4

Gravely 04930251

DEFLECTOR - 32"
(Superseded to 04930253)

$

$

Not available

5

Gravely 04916251

BAFFLE - LEFT FRONT - 36"
(Superseded to 04916253)

$56.99

$

Usually ships in 4-12 days

0

6

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 04917853

WMT - DISCHARGE CHUTE - PRO

$191.99

$

Usually ships in 4-12 days

0

9

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (312, 314)

$1.99

$

In Stock, Qty 14

0

13

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (312, 314)

$1.49

$

In Stock, Qty 20+

0
