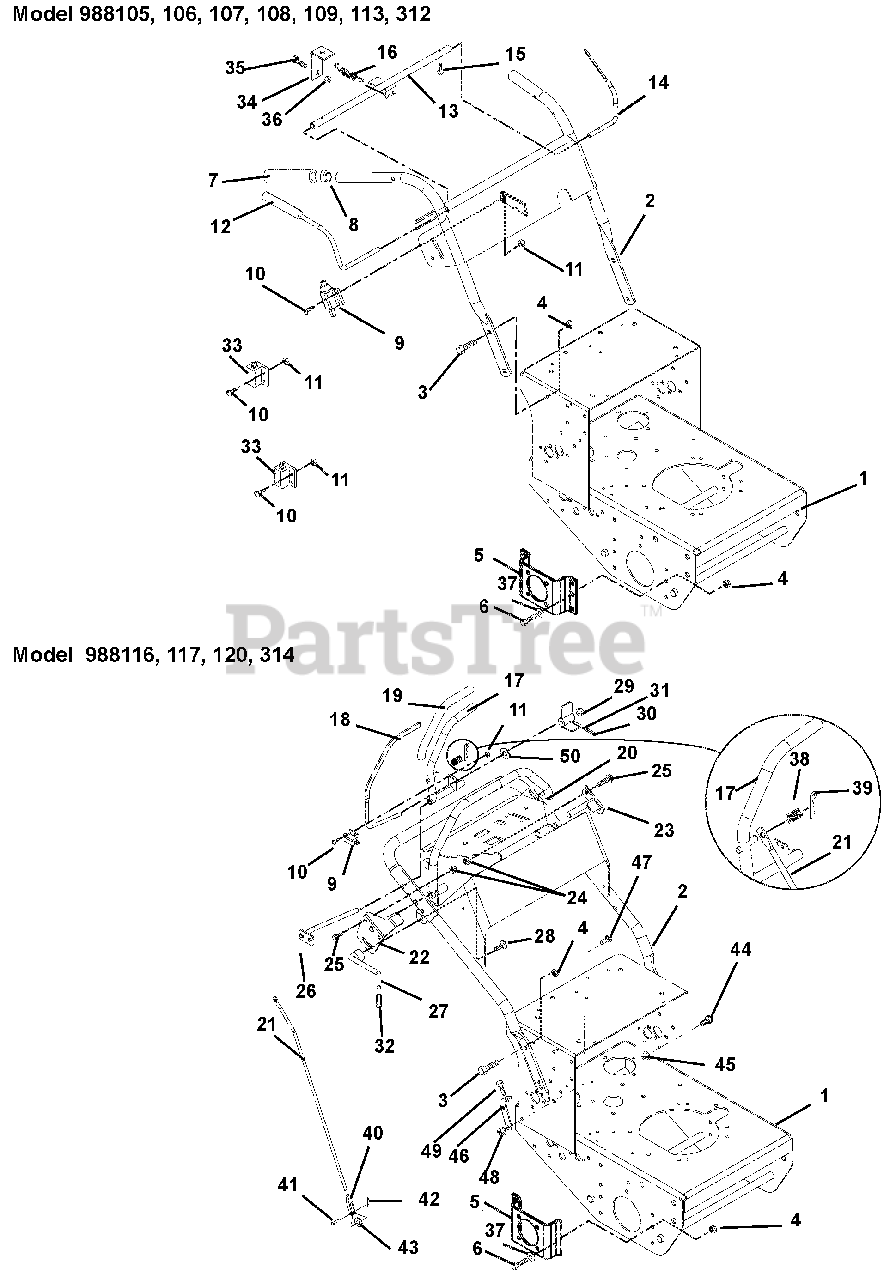

988312 - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 002000 & Above) Frame And Handlebars Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

Frame And Handlebars Parts Diagram

  • Title

1

Gravely 58804200

KIT-FRAME W/DECALS

$

$

Not available

2

Gravely 58805600

KIT-HANDLEBAR W/DECALS HR15
(Superseded to 05356600)

Note: (105 - 107, 113, 312)

$

$

Not available

Gravely 58805700

KIT-HANDLEBAR W/DECALS HE17
(Superseded to 05356600)

Note: (108, 109)

$

$

Not available

Gravely 58806500

KIT-HANDLEBAR/DECALS HE17-ERGO

Note: (117)

$

$

Not available

Gravely 58806400

KIT-HANDLEBAR/DECALS HR15-ERGO

Note: (116, 120, 314)

$

$

Not available

3

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

5

Gravely 04926100

BRACKET, WHEEL MOTOR LH

Note: (105, 107, 108, 116, 120, 312, 314)

$

$

Not available

Gravely 04931300

BRACKET, WHEEL MOTOR RH

Note: (105, 107, 108, 116, 120, 312, 314)

$

$

Not available

Gravely 04929000

BRKT, WHEEL MOTOR LH

Note: (106, 109, 113, 117)

$

$

Not available

Gravely 04929100

BRKT, WHEEL MOTOR RH

Note: (106, 109, 113, 117)

$38.99

$

Usually ships in 4-12 days

0

6

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 04928800

GRIP, HANDLEBAR

Note: (105, 106, 107, 108, 109, 113, 312)

$10.99

$

In Stock, only 4 left!

0

8

Gravely 07533300

CAPLUG, HANDLEBAR

Note: (105, 106, 107, 108, 109, 113, 312)

$2.99

$

In Stock, only 1 left!

0

9

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

Note: (105, 106, 107, 108, 109, 113, 312)

$17.99

$

In Stock, Qty 20+

0

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

Note: (116, 120, 314)

$17.99

$

In Stock, Qty 20+

0

Gravely 046219

SWITCH,INTERLOCK
(Superseded to 08828100)

Note: (117)

$21.99

$

In Stock, only 1 left!

0

10

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

Note: (105, 106, 107, 108, 109, 113, 312)

$2.49

$

In Stock, Qty 11

0

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

Note: (116, 117, 120, 314)

$2.49

$

In Stock, Qty 11

0

11

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: (105 - 109, 113, 312)

$0.99

$

In Stock, Qty 20+

0

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: (116, 117, 120, 314)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 04924100

LEVER, RH-OP
(Superseded to 78806400)

Note: (105, 106, 107, 108, 109, 113, 312)

$237.99

$

Usually ships in 4-12 days

0

13

Gravely 04924000

WELDMENT, PIVOT TUBE
(Superseded to 78806400)

Note: (105, 106, 107, 108, 109, 113, 312)

$237.99

$

Usually ships in 4-12 days

0

14

Gravely 04924200

LEVER, LH-OP
(Superseded to 78806400)

Note: (105, 106, 107, 108, 109, 113, 312)

$237.99

$

Usually ships in 4-12 days

0

15

Gravely 07415600

SCR-TAP 8-32X.50 HWH TR YWZC

Note: (105, 106, 107, 108, 109, 113, 312)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 08337000

SPRING-EXT .047X.438X1.45

Note: (105, 106, 107, 108, 109, 113, 312)

$6.49

$

In Stock, only 4 left!

0

17

Gravely 04942851

WMT-LEVER-RH SPEED CONTROL-HYD

Note: (116, 117, 120, 314)

$

$

Not available

Gravely 04942951

WMT-LEVER-LH SPEED CONTROL-HYD

Note: ((116, 117, 120, 314)

$

$

Not available

18

Gravely 04944100

LEVER - OPERATOR PRESENCE

Note: (116, 117, 120, 314)

$48.99

$

Usually ships in 4-12 days

0

19

Gravely 07534500

GRIP - HANDLEBAR

Note: (116, 117, 120, 314)

$27.99

$

Usually ships in 4-12 days

0

20

Gravely 04937951

WMT - SPEED CONTROL STOP
(Superseded to 04944951)

Note: (116, 117, 120, 314) (Serial # 101-2999)

$261.99

$

Usually ships in 4-12 days

0

Gravely 04944951

WMT - SPEED CONTROL STOP

Note: (116, 117, 120, 314) (Serial # 3000 and up)

$261.99

$

Usually ships in 4-12 days

0

21

Gravely 04942100

ROD - STEERING - HYDRO

Note: (116, 117, 120, 314)

$45.99

$

Usually ships in 4-12 days

0

22

Gravely 04938000

WMT-CONTROL STOP LIMITER-RH

Note: (116, 117, 120, 314) (Serial # 101-2999)

$41.99

$

Usually ships in 4-12 days

0

Gravely 04944800

WMT - CONTROL STOP LIMITER -RH

Note: (116, 117, 120, 314) (Serial # 3000 and up)

$25.99

$

Usually ships in 4-12 days

0

23

Gravely 04938300

WMT-CONTROL STOP LIMITER-LH

Note: (116, 117, 120, 314)

$

$

Not available

24

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (116, 117, 120, 314)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

Note: (116, 117, 120, 314)

$3.49

$

In Stock, Qty 10

0

26

Gravely 04943200

WMT - SPEED CONTROL PIVOT - RH

Note: (116, 117, 120, 314)

$

$

Not available

Gravely 04943300

WMT - SPEED CONTROL PIVOT - LH

Note: (116, 117, 120, 314)

$

$

Not available

27

Gravely 04938600

LEVER - CONTROL STOP LOCK

Note: (116, 117, 120, 314) (Serial # 101-2999)

$105.99

$

Usually ships in 4-12 days

0

Gravely 04944700

LEVER - CONTROL STOP LOCK

Note: (116, 117, 120, 314) (Serial # 3000 and up)

$34.99

$

Usually ships in 4-12 days

0

28

Gravely 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

Note: (116, 117, 120, 314) (Serial # 101-2999)

$2.99

$

In Stock, Qty 20+

0

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

Note: (116, 117, 120, 314) (Serial # 3000 and up)

$1.99

$

In Stock, Qty 10

0

29

Gravely 04936900

ACTUATOR - SWITCH

Note: (116, 117, 120, 314)

$59.99

$

Usually ships in 4-12 days

0

30

Gravely 05803400

PIN-ROLL .125X.75

Note: (116, 117, 120, 314)

$0.99

$

In Stock, Qty 12

0

31

Gravely 06514900

NUT-PUSH .312

Note: (116, 117, 120, 314)

$0.99

$

In Stock, Qty 9

0

32

Gravely 07528300

GRIP,HAND CLUTCH LEVER

Note: (116, 117, 120, 314)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 03657100

SWITCH- SINGLE POLE N.O.

Note: (105, 106, 107, 108, 109, 113, 312)

$9.99

$

In Stock, Qty 18

0

34

Gravely 04928900

BRACKET, BRAKE LINK

Note: (105, 106, 107, 108, 109, 113, 312)

$

$

Not available

35

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (105, 106, 107, 108, 109, 113, 312)

$1.49

$

In Stock, only 3 left!

0

36

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

Note: (105, 106, 107, 108, 109, 113, 312)

$5.49

$

In Stock, Qty 12

0

37

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (105, 106, 107, 108, 109, 113, 312)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 043193

SG-COMP .045X.600X.750 WLD7.5
(Superseded to 08338800)

Note: (116, 117, 120, 314)

$7.49

$

Usually ships in 4-12 days

0

39

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

Note: (116, 117, 120, 314)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 00513800

YOKE, .312-24 X 2.25

Note: (116, 117, 120, 314)

$30.99

$

Usually ships in 4-12 days

0

41

Gravely 06814000

PIN-CLEV .31X.937 FLHD YWZC

Note: (116, 117, 120, 314)

$

$

Not available

42

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

Note: (116, 117, 120, 314)

$0.99

$

In Stock, only 4 left!

0

43

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

Note: (116, 117, 120, 314)

$3.49

$

In Stock, Qty 20+

0

44

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

Note: (116, 117, 120, 314)

$1.99

$

In Stock, Qty 20+

0

45

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

Note: (116, 117, 120, 314)

$1.99

$

In Stock, Qty 20+

0

46

Gravely 04942400

WMT - REVERSE ADJUST BRACKET

Note: (116, 117, 120, 314)

$

$

Not available

47

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (116, 117, 120, 314)

$1.99

$

In Stock, Qty 14

0

48

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (116, 117, 120, 314)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

Note: (116, 117, 120, 314)

$2.99

$

In Stock, Qty 11

0

50

Gravely 038843

WAVE WASHER .390X.655X.110
(Superseded to 01320200)

Note: (116, 117, 120, 314)

$3.99

$

In Stock, only 2 left!

0
